Fig.13
CD PCB
Short round
CN601
Fig.12

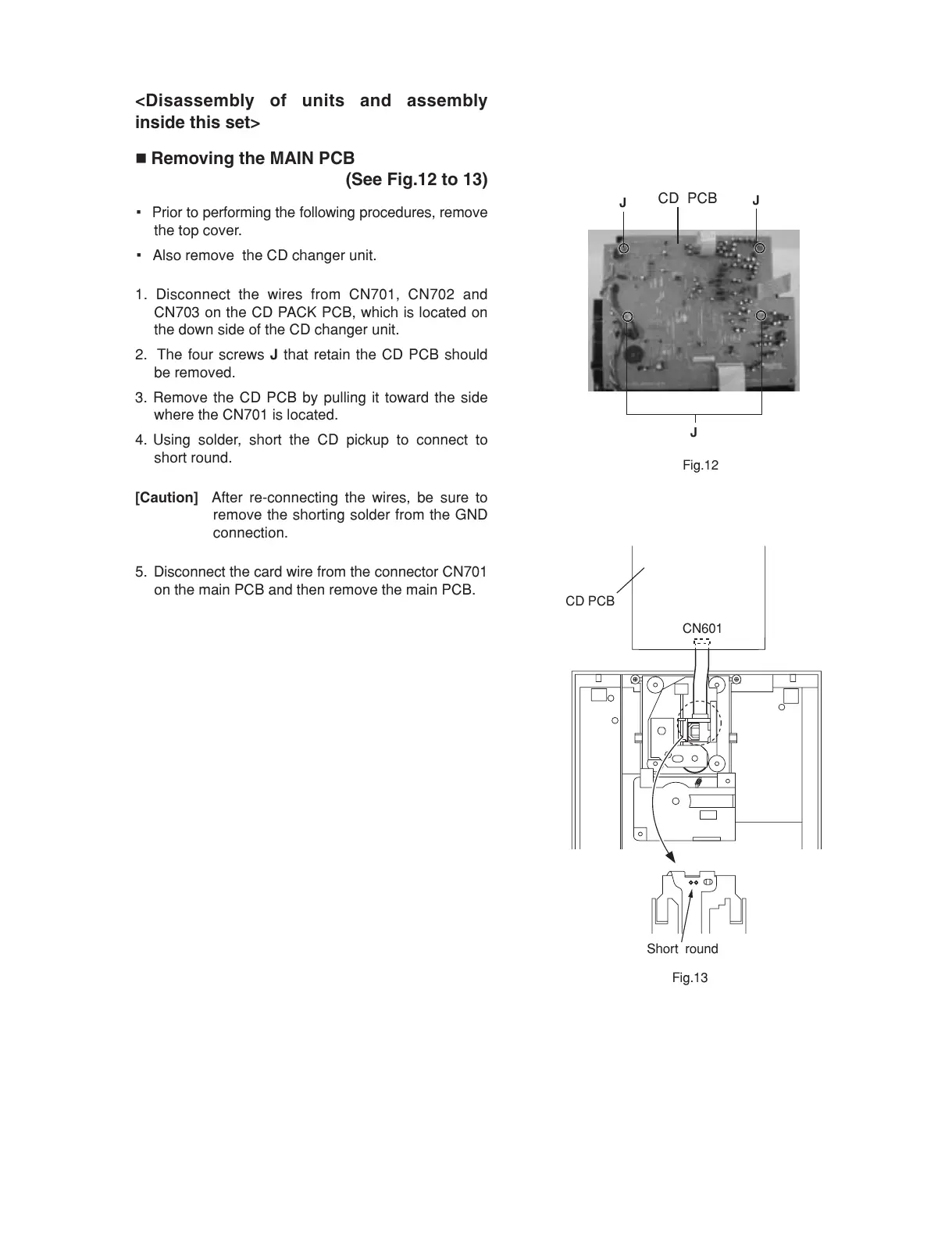

<Disassembly of units and assembly
inside this set>
Removing the MAIN PCB
(See Fig.12 to 13)
Prior to performing the following procedures, remove
the top cover.
Also remove the CD changer unit.
1. Disconnect the wires from CN701, CN702 and
CN703 on the CD PACK PCB, which is located on
the down side of the CD changer unit.
2. The four screws
J
that retain the CD PCB should
be removed.
3. Remove the CD PCB by pulling it toward the side
where the CN701 is located.
4.
Using solder, short the CD pickup to connect to
short round.
[Caution]
After re-connecting the wires, be sure to
remove the shorting solder from the GND
connection.
5. Disconnect the card wire from the connector CN701
on the main PCB and then remove the main PCB.
J
CD PCB
J
J
