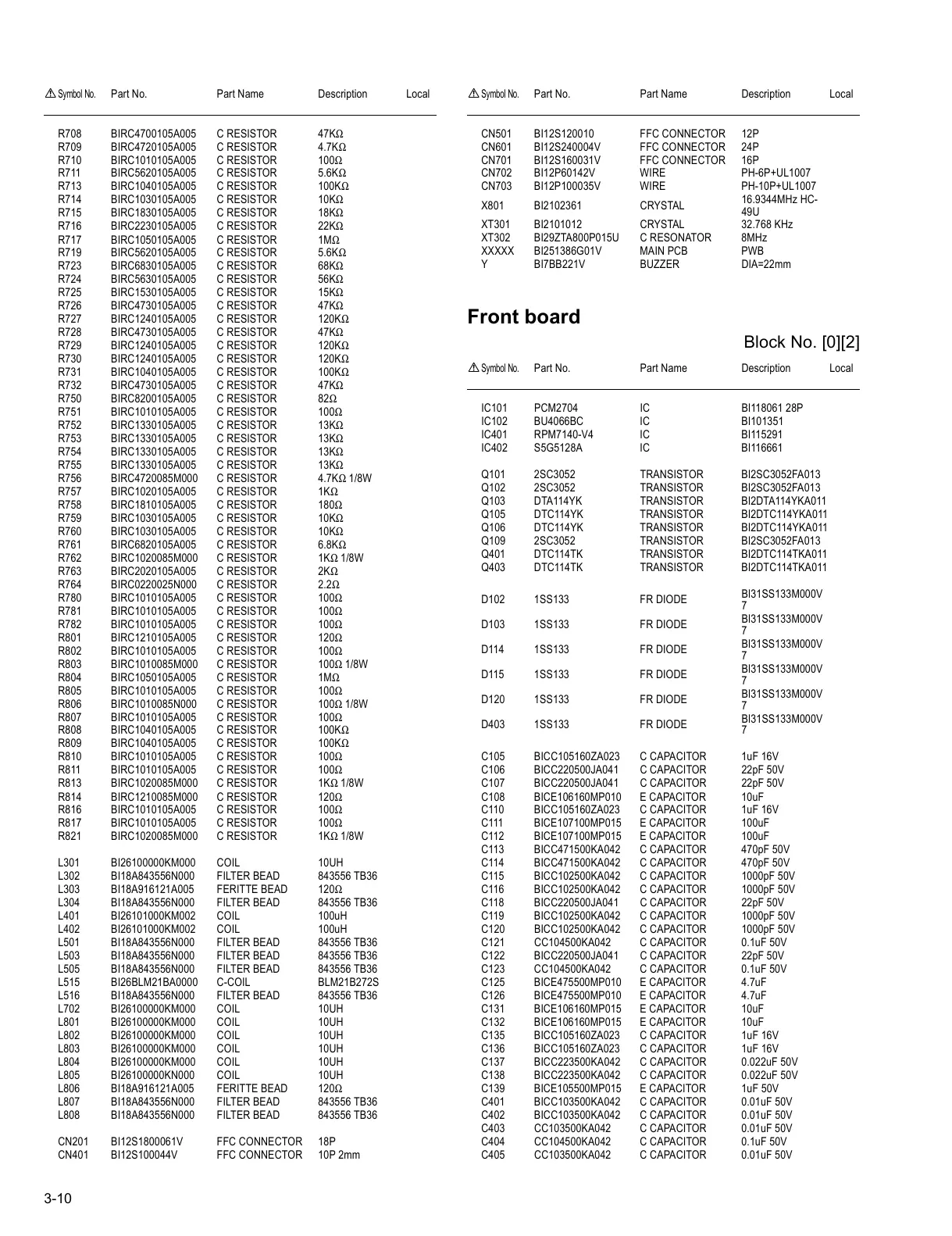

JVC MX-GC5 Service Manual

3-10
Front board
Block No. [0][2]
R708 BIRC4700105A005 C RESISTOR 47K Ω
R709 BIRC4720105A005 C RESISTOR 4.7K Ω
R710 BIRC1010105A005 C RESISTOR 100 Ω
R711 BIRC5620105A005 C RESISTOR 5.6K Ω
R713 BIRC1040105A005 C RESISTOR 100K Ω
R714 BIRC1030105A005 C RESISTOR 10K Ω
R715 BIRC1830105A005 C RESISTOR 18K Ω
R716 BIRC2230105A005 C RESISTOR 22K Ω
R717 BIRC1050105A005 C RESISTOR 1M Ω
R719 BIRC5620105A005 C RESISTOR 5.6K Ω
R723 BIRC6830105A005 C RESISTOR 68K Ω
R724 BIRC5630105A005 C RESISTOR 56K Ω
R725 BIRC1530105A005 C RESISTOR 15K Ω
R726 BIRC4730105A005 C RESISTOR 47K Ω
R727 BIRC1240105A005 C RESISTOR 120K Ω
R728 BIRC4730105A005 C RESISTOR 47K Ω
R729 BIRC1240105A005 C RESISTOR 120K Ω
R730 BIRC1240105A005 C RESISTOR 120K Ω
R731 BIRC1040105A005 C RESISTOR 100K Ω
R732 BIRC4730105A005 C RESISTOR 47K Ω
R750 BIRC8200105A005 C RESISTOR 82 Ω
R751 BIRC1010105A005 C RESISTOR 100 Ω
R752 BIRC1330105A005 C RESISTOR 13K Ω
R753 BIRC1330105A005 C RESISTOR 13K Ω
R754 BIRC1330105A005 C RESISTOR 13K Ω
R755 BIRC1330105A005 C RESISTOR 13K Ω
R756 BIRC4720085M000 C RESISTOR 4.7K Ω 1/8W
R757 BIRC1020105A005 C RESISTOR 1K
Ω
R758 BIRC1810105A005 C RESISTOR 180 Ω
R759 BIRC1030105A005 C RESISTOR 10K Ω
R760 BIRC1030105A005 C RESISTOR 10K Ω
R761 BIRC6820105A005 C RESISTOR 6.8K Ω
R762 BIRC1020085M000 C RESISTOR 1K Ω 1/8W
R763 BIRC2020105A005 C RESISTOR 2K
Ω
R764 BIRC0220025N000 C RESISTOR 2.2 Ω
R780 BIRC1010105A005 C RESISTOR 100 Ω
R781 BIRC1010105A005 C RESISTOR 100 Ω
R782 BIRC1010105A005 C RESISTOR 100 Ω
R801 BIRC1210105A005 C RESISTOR 120 Ω
R802 BIRC1010105A005 C RESISTOR 100 Ω
R803 BIRC1010085M000 C RESISTOR 100 Ω 1/8W
R804 BIRC1050105A005 C RESISTOR 1M
Ω
R805 BIRC1010105A005 C RESISTOR 100 Ω
R806 BIRC1010085N000 C RESISTOR 100 Ω 1/8W
R807 BIRC1010105A005 C RESISTOR 100
Ω
R808 BIRC1040105A005 C RESISTOR 100K Ω
R809 BIRC1040105A005 C RESISTOR 100K Ω
R810 BIRC1010105A005 C RESISTOR 100 Ω
R811 BIRC1010105A005 C RESISTOR 100 Ω
R813 BIRC1020085M000 C RESISTOR 1K Ω 1/8W
R814 BIRC1210085M000 C RESISTOR 120
Ω
R816 BIRC1010105A005 C RESISTOR 100 Ω
R817 BIRC1010105A005 C RESISTOR 100 Ω
R821 BIRC1020085M000 C RESISTOR 1K Ω 1/8W
L301 BI26100000KM000 COIL 10UH
L302 BI18A843556N000 FILTER BEAD 843556 TB36
L303 BI18A916121A005 FERITTE BEAD 120
Ω
L304 BI18A843556N000 FILTER BEAD 843556 TB36
L401 BI26101000KM002 COIL 100uH
L402 BI26101000KM002 COIL 100uH
L501 BI18A843556N000 FILTER BEAD 843556 TB36
L503 BI18A843556N000 FILTER BEAD 843556 TB36
L505 BI18A843556N000 FILTER BEAD 843556 TB36
L515 BI26BLM21BA0000 C-COIL BLM21B272S
L516 BI18A843556N000 FILTER BEAD 843556 TB36
L702 BI26100000KM000 COIL 10UH
L801 BI26100000KM000 COIL 10UH
L802 BI26100000KM000 COIL 10UH
L803 BI26100000KM000 COIL 10UH
L804 BI26100000KM000 COIL 10UH
L805 BI26100000KN000 COIL 10UH
L806 BI18A916121A005 FERITTE BEAD 120
Ω
L807 BI18A843556N000 FILTER BEAD 843556 TB36
L808 BI18A843556N000 FILTER BEAD 843556 TB36
CN201 BI12S1800061V FFC CONNECTOR 18P
CN401 BI12S100044V FFC CONNECTOR 10P 2mm
 Symbol No. Part No. Part Name Description Local
CN501 BI12S120010 FFC CONNECTOR 12P
CN601 BI12S240004V FFC CONNECTOR 24P
CN701 BI12S160031V FFC CONNECTOR 16P
CN702 BI12P60142V WIRE PH-6P+UL1007
CN703 BI12P100035V WIRE PH-10P+UL1007
X801 BI2102361 CRYSTAL
16.9344MHz HC-
49U
XT301 BI2101012 CRYSTAL 32.768 KHz
XT302 BI29ZTA800P015U C RESONATOR 8MHz
XXXXX BI251386G01V MAIN PCB PWB
Y BI7BB221V BUZZER DIA=22mm
 Symbol No. Part No. Part Name Description Local
IC101 PCM2704 IC BI118061 28P
IC102 BU4066BC IC BI101351
IC401 RPM7140-V4 IC BI115291
IC402 S5G5128A IC BI116661
Q101 2SC3052 TRANSISTOR BI2SC3052FA013
Q102 2SC3052 TRANSISTOR BI2SC3052FA013
Q103 DTA114YK TRANSISTOR BI2DTA114YKA011
Q105 DTC114YK TRANSISTOR BI2DTC114YKA011
Q106 DTC114YK TRANSISTOR BI2DTC114YKA011
Q109 2SC3052 TRANSISTOR BI2SC3052FA013
Q401 DTC114TK TRANSISTOR BI2DTC114TKA011
Q403 DTC114TK TRANSISTOR BI2DTC114TKA011
D102 1SS133 FR DIODE
BI31SS133M000V
7
D103 1SS133 FR DIODE
BI31SS133M000V
7
D114 1SS133 FR DIODE
BI31SS133M000V
7
D115 1SS133 FR DIODE
BI31SS133M000V
7
D120 1SS133 FR DIODE
BI31SS133M000V
7
D403 1SS133 FR DIODE
BI31SS133M000V
7
C105 BICC105160ZA023 C CAPACITOR 1uF 16V
C106 BICC220500JA041 C CAPACITOR 22pF 50V
C107 BICC220500JA041 C CAPACITOR 22pF 50V
C108 BICE106160MP010 E CAPACITOR 10uF
C110 BICC105160ZA023 C CAPACITOR 1uF 16V
C111 BICE107100MP015 E CAPACITOR 100uF
C112 BICE107100MP015 E CAPACITOR 100uF
C113 BICC471500KA042 C CAPACITOR 470pF 50V
C114 BICC471500KA042 C CAPACITOR 470pF 50V
C115 BICC102500KA042 C CAPACITOR 1000pF 50V
C116 BICC102500KA042 C CAPACITOR 1000pF 50V
C118 BICC220500JA041 C CAPACITOR 22pF 50V
C119 BICC102500KA042 C CAPACITOR 1000pF 50V
C120 BICC102500KA042 C CAPACITOR 1000pF 50V
C121 CC104500KA042 C CAPACITOR 0.1uF 50V
C122 BICC220500JA041 C CAPACITOR 22pF 50V
C123 CC104500KA042 C CAPACITOR 0.1uF 50V
C125 BICE475500MP010 E CAPACITOR 4.7uF
C126 BICE475500MP010 E CAPACITOR 4.7uF
C131 BICE106160MP015 E CAPACITOR 10uF
C132 BICE106160MP015 E CAPACITOR 10uF
C135 BICC105160ZA023 C CAPACITOR 1uF 16V
C136 BICC105160ZA023 C CAPACITOR 1uF 16V
C137 BICC223500KA042 C CAPACITOR 0.022uF 50V
C138 BICC223500KA042 C CAPACITOR 0.022uF 50V
C139 BICE105500MP015 E CAPACITOR 1uF 50V
C401 BICC103500KA042 C CAPACITOR 0.01uF 50V
C402 BICC103500KA042 C CAPACITOR 0.01uF 50V
C403 CC103500KA042 C CAPACITOR 0.01uF 50V
C404 CC104500KA042 C CAPACITOR 0.1uF 50V
C405 CC103500KA042 C CAPACITOR 0.01uF 50V
 Symbol No. Part No. Part Name Description Local
