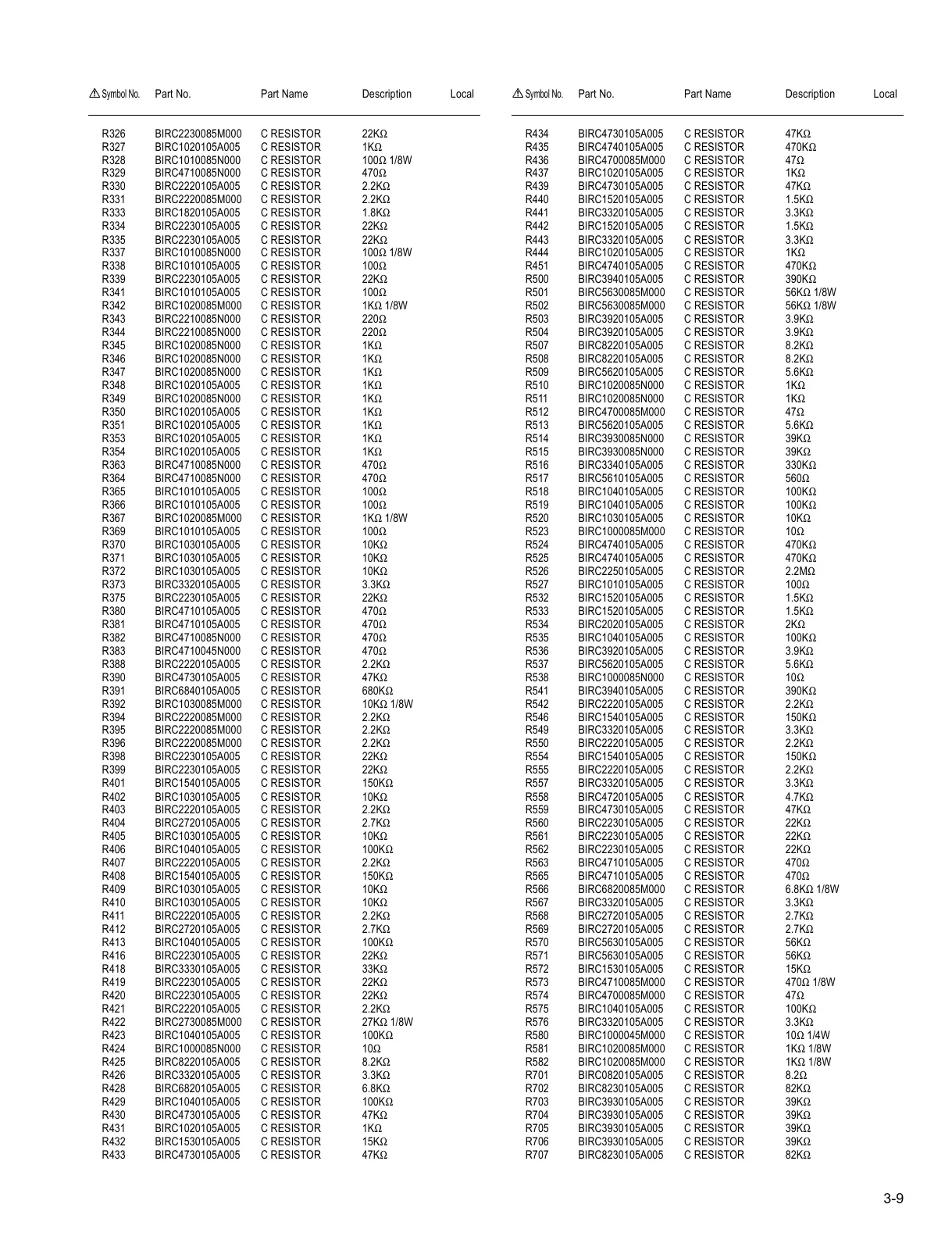

JVC MX-GC5 Service Manual

3-9
R326 BIRC2230085M000 C RESISTOR 22K Ω
R327 BIRC1020105A005 C RESISTOR 1K Ω
R328 BIRC1010085N000 C RESISTOR 100 Ω 1/8W
R329 BIRC4710085N000 C RESISTOR 470
Ω
R330 BIRC2220105A005 C RESISTOR 2.2K Ω
R331 BIRC2220085M000 C RESISTOR 2.2K Ω
R333 BIRC1820105A005 C RESISTOR 1.8K Ω
R334 BIRC2230105A005 C RESISTOR 22K Ω
R335 BIRC2230105A005 C RESISTOR 22K Ω
R337 BIRC1010085N000 C RESISTOR 100 Ω 1/8W
R338 BIRC1010105A005 C RESISTOR 100
Ω
R339 BIRC2230105A005 C RESISTOR 22K Ω
R341 BIRC1010105A005 C RESISTOR 100 Ω
R342 BIRC1020085M000 C RESISTOR 1K Ω 1/8W
R343 BIRC2210085N000 C RESISTOR 220
Ω
R344 BIRC2210085N000 C RESISTOR 220 Ω
R345 BIRC1020085N000 C RESISTOR 1K Ω
R346 BIRC1020085N000 C RESISTOR 1K Ω
R347 BIRC1020085N000 C RESISTOR 1K Ω
R348 BIRC1020105A005 C RESISTOR 1K Ω
R349 BIRC1020085N000 C RESISTOR 1K Ω
R350 BIRC1020105A005 C RESISTOR 1K Ω
R351 BIRC1020105A005 C RESISTOR 1K Ω
R353 BIRC1020105A005 C RESISTOR 1K Ω
R354 BIRC1020105A005 C RESISTOR 1K Ω
R363 BIRC4710085N000 C RESISTOR 470 Ω
R364 BIRC4710085N000 C RESISTOR 470 Ω
R365 BIRC1010105A005 C RESISTOR 100 Ω
R366 BIRC1010105A005 C RESISTOR 100 Ω
R367 BIRC1020085M000 C RESISTOR 1K Ω 1/8W
R369 BIRC1010105A005 C RESISTOR 100
Ω
R370 BIRC1030105A005 C RESISTOR 10K Ω
R371 BIRC1030105A005 C RESISTOR 10K Ω
R372 BIRC1030105A005 C RESISTOR 10K Ω
R373 BIRC3320105A005 C RESISTOR 3.3K Ω
R375 BIRC2230105A005 C RESISTOR 22K Ω
R380 BIRC4710105A005 C RESISTOR 470 Ω
R381 BIRC4710105A005 C RESISTOR 470 Ω
R382 BIRC4710085N000 C RESISTOR 470 Ω
R383 BIRC4710045N000 C RESISTOR 470 Ω
R388 BIRC2220105A005 C RESISTOR 2.2K Ω
R390 BIRC4730105A005 C RESISTOR 47K Ω
R391 BIRC6840105A005 C RESISTOR 680K Ω
R392 BIRC1030085M000 C RESISTOR 10K Ω 1/8W
R394 BIRC2220085M000 C RESISTOR 2.2K
Ω
R395 BIRC2220085M000 C RESISTOR 2.2K Ω
R396 BIRC2220085M000 C RESISTOR 2.2K Ω
R398 BIRC2230105A005 C RESISTOR 22K Ω
R399 BIRC2230105A005 C RESISTOR 22K Ω
R401 BIRC1540105A005 C RESISTOR 150K Ω
R402 BIRC1030105A005 C RESISTOR 10K Ω
R403 BIRC2220105A005 C RESISTOR 2.2K Ω
R404 BIRC2720105A005 C RESISTOR 2.7K Ω
R405 BIRC1030105A005 C RESISTOR 10K Ω
R406 BIRC1040105A005 C RESISTOR 100K Ω
R407 BIRC2220105A005 C RESISTOR 2.2K Ω
R408 BIRC1540105A005 C RESISTOR 150K Ω
R409 BIRC1030105A005 C RESISTOR 10K Ω
R410 BIRC1030105A005 C RESISTOR 10K Ω
R411 BIRC2220105A005 C RESISTOR 2.2K Ω
R412 BIRC2720105A005 C RESISTOR 2.7K Ω
R413 BIRC1040105A005 C RESISTOR 100K Ω
R416 BIRC2230105A005 C RESISTOR 22K Ω
R418 BIRC3330105A005 C RESISTOR 33K Ω
R419 BIRC2230105A005 C RESISTOR 22K Ω
R420 BIRC2230105A005 C RESISTOR 22K Ω
R421 BIRC2220105A005 C RESISTOR 2.2K Ω
R422 BIRC2730085M000 C RESISTOR 27K Ω 1/8W
R423 BIRC1040105A005 C RESISTOR 100K
Ω
R424 BIRC1000085N000 C RESISTOR 10 Ω
R425 BIRC8220105A005 C RESISTOR 8.2K Ω
R426 BIRC3320105A005 C RESISTOR 3.3K Ω
R428 BIRC6820105A005 C RESISTOR 6.8K Ω
R429 BIRC1040105A005 C RESISTOR 100K Ω
R430 BIRC4730105A005 C RESISTOR 47K Ω
R431 BIRC1020105A005 C RESISTOR 1K Ω
R432 BIRC1530105A005 C RESISTOR 15K Ω
R433 BIRC4730105A005 C RESISTOR 47K Ω
 Symbol No. Part No. Part Name Description Local
R434 BIRC4730105A005 C RESISTOR 47K Ω
R435 BIRC4740105A005 C RESISTOR 470K Ω
R436 BIRC4700085M000 C RESISTOR 47 Ω
R437 BIRC1020105A005 C RESISTOR 1K Ω
R439 BIRC4730105A005 C RESISTOR 47K Ω
R440 BIRC1520105A005 C RESISTOR 1.5K Ω
R441 BIRC3320105A005 C RESISTOR 3.3K Ω
R442 BIRC1520105A005 C RESISTOR 1.5K Ω
R443 BIRC3320105A005 C RESISTOR 3.3K Ω
R444 BIRC1020105A005 C RESISTOR 1K Ω
R451 BIRC4740105A005 C RESISTOR 470K Ω
R500 BIRC3940105A005 C RESISTOR 390K Ω
R501 BIRC5630085M000 C RESISTOR 56K Ω 1/8W
R502 BIRC5630085M000 C RESISTOR 56K
Ω 1/8W
R503 BIRC3920105A005 C RESISTOR 3.9K
Ω
R504 BIRC3920105A005 C RESISTOR 3.9K Ω
R507 BIRC8220105A005 C RESISTOR 8.2K Ω
R508 BIRC8220105A005 C RESISTOR 8.2K Ω
R509 BIRC5620105A005 C RESISTOR 5.6K Ω
R510 BIRC1020085N000 C RESISTOR 1K Ω
R511 BIRC1020085N000 C RESISTOR 1K Ω
R512 BIRC4700085M000 C RESISTOR 47 Ω
R513 BIRC5620105A005 C RESISTOR 5.6K Ω
R514 BIRC3930085N000 C RESISTOR 39K Ω
R515 BIRC3930085N000 C RESISTOR 39K Ω
R516 BIRC3340105A005 C RESISTOR 330K Ω
R517 BIRC5610105A005 C RESISTOR 560 Ω
R518 BIRC1040105A005 C RESISTOR 100K Ω
R519 BIRC1040105A005 C RESISTOR 100K Ω
R520 BIRC1030105A005 C RESISTOR 10K Ω
R523 BIRC1000085M000 C RESISTOR 10 Ω
R524 BIRC4740105A005 C RESISTOR 470K Ω
R525 BIRC4740105A005 C RESISTOR 470K Ω
R526 BIRC2250105A005 C RESISTOR 2.2M Ω
R527 BIRC1010105A005 C RESISTOR 100 Ω
R532 BIRC1520105A005 C RESISTOR 1.5K Ω
R533 BIRC1520105A005 C RESISTOR 1.5K Ω
R534 BIRC2020105A005 C RESISTOR 2K Ω
R535 BIRC1040105A005 C RESISTOR 100K Ω
R536 BIRC3920105A005 C RESISTOR 3.9K Ω
R537 BIRC5620105A005 C RESISTOR 5.6K Ω
R538 BIRC1000085N000 C RESISTOR 10 Ω
R541 BIRC3940105A005 C RESISTOR 390K Ω
R542 BIRC2220105A005 C RESISTOR 2.2K Ω
R546 BIRC1540105A005 C RESISTOR 150K Ω
R549 BIRC3320105A005 C RESISTOR 3.3K Ω
R550 BIRC2220105A005 C RESISTOR 2.2K Ω
R554 BIRC1540105A005 C RESISTOR 150K Ω
R555 BIRC2220105A005 C RESISTOR 2.2K Ω
R557 BIRC3320105A005 C RESISTOR 3.3K Ω
R558 BIRC4720105A005 C RESISTOR 4.7K Ω
R559 BIRC4730105A005 C RESISTOR 47K Ω
R560 BIRC2230105A005 C RESISTOR 22K Ω
R561 BIRC2230105A005 C RESISTOR 22K Ω
R562 BIRC2230105A005 C RESISTOR 22K Ω
R563 BIRC4710105A005 C RESISTOR 470 Ω
R565 BIRC4710105A005 C RESISTOR 470 Ω
R566 BIRC6820085M000 C RESISTOR 6.8K Ω 1/8W
R567 BIRC3320105A005 C RESISTOR 3.3K
Ω
R568 BIRC2720105A005 C RESISTOR 2.7K Ω
R569 BIRC2720105A005 C RESISTOR 2.7K Ω
R570 BIRC5630105A005 C RESISTOR 56K Ω
R571 BIRC5630105A005 C RESISTOR 56K Ω
R572 BIRC1530105A005 C RESISTOR 15K Ω
R573 BIRC4710085M000 C RESISTOR 470 Ω 1/8W
R574 BIRC4700085M000 C RESISTOR 47
Ω
R575 BIRC1040105A005 C RESISTOR 100K Ω
R576 BIRC3320105A005 C RESISTOR 3.3K Ω
R580 BIRC1000045M000 C RESISTOR 10 Ω 1/4W
R581 BIRC1020085M000 C RESISTOR 1K
Ω 1/8W
R582 BIRC1020085M000 C RESISTOR 1K
Ω 1/8W
R701 BIRC0820105A005 C RESISTOR 8.2
Ω
R702 BIRC8230105A005 C RESISTOR 82K Ω
R703 BIRC3930105A005 C RESISTOR 39K Ω
R704 BIRC3930105A005 C RESISTOR 39K Ω
R705 BIRC3930105A005 C RESISTOR 39K Ω
R706 BIRC3930105A005 C RESISTOR 39K Ω
R707 BIRC8230105A005 C RESISTOR 82K Ω
 Symbol No. Part No. Part Name Description Local
