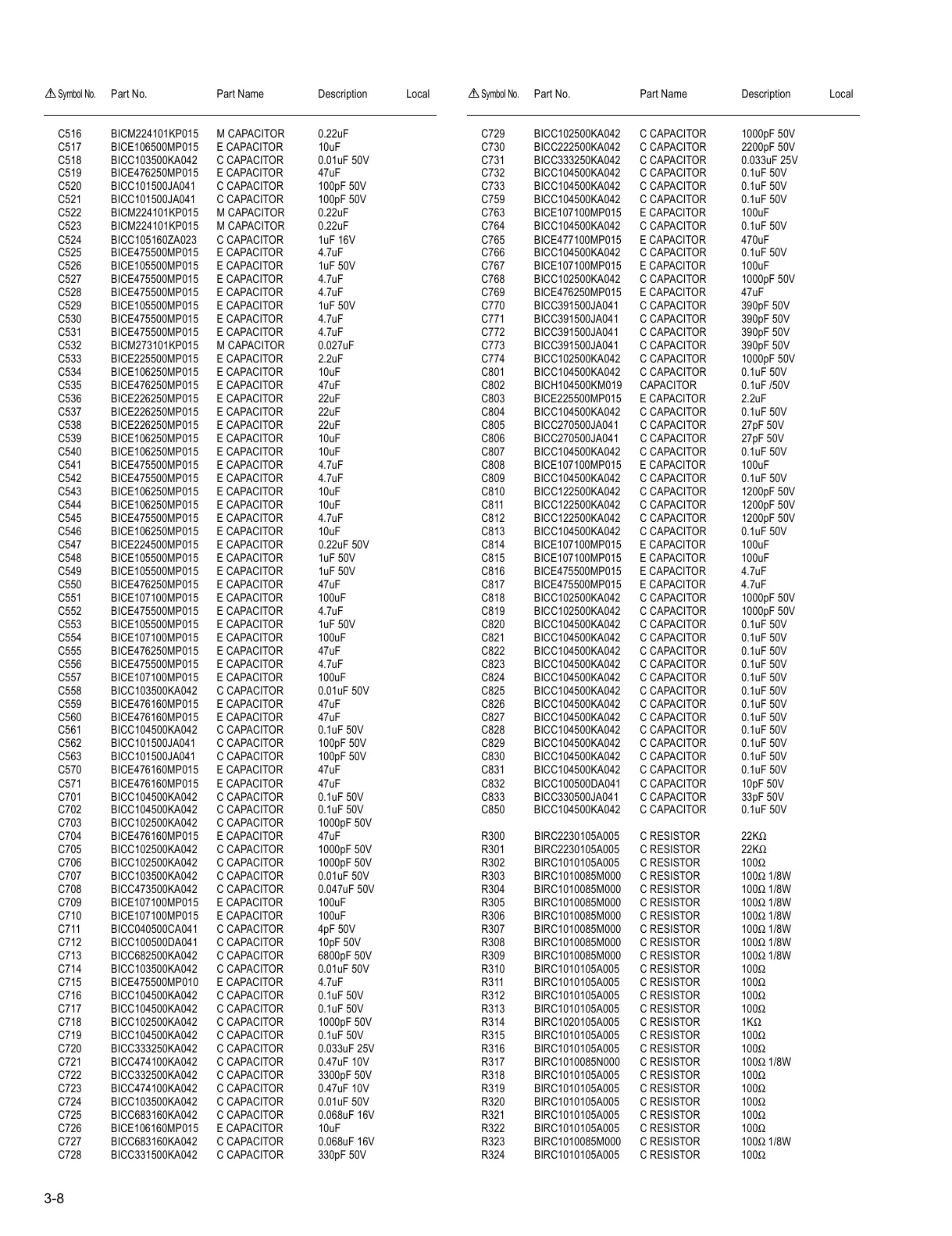

JVC MX-GC5 Service Manual

3-8
C516 BICM224101KP015 M CAPACITOR 0.22uF
C517 BICE106500MP015 E CAPACITOR 10uF
C518 BICC103500KA042 C CAPACITOR 0.01uF 50V
C519 BICE476250MP015 E CAPACITOR 47uF
C520 BICC101500JA041 C CAPACITOR 100pF 50V
C521 BICC101500JA041 C CAPACITOR 100pF 50V
C522 BICM224101KP015 M CAPACITOR 0.22uF
C523 BICM224101KP015 M CAPACITOR 0.22uF
C524 BICC105160ZA023 C CAPACITOR 1uF 16V
C525 BICE475500MP015 E CAPACITOR 4.7uF
C526 BICE105500MP015 E CAPACITOR 1uF 50V
C527 BICE475500MP015 E CAPACITOR 4.7uF
C528 BICE475500MP015 E CAPACITOR 4.7uF
C529 BICE105500MP015 E CAPACITOR 1uF 50V
C530 BICE475500MP015 E CAPACITOR 4.7uF
C531 BICE475500MP015 E CAPACITOR 4.7uF
C532 BICM273101KP015 M CAPACITOR 0.027uF
C533 BICE225500MP015 E CAPACITOR 2.2uF
C534 BICE106250MP015 E CAPACITOR 10uF
C535 BICE476250MP015 E CAPACITOR 47uF
C536 BICE226250MP015 E CAPACITOR 22uF
C537 BICE226250MP015 E CAPACITOR 22uF
C538 BICE226250MP015 E CAPACITOR 22uF
C539 BICE106250MP015 E CAPACITOR 10uF
C540 BICE106250MP015 E CAPACITOR 10uF
C541 BICE475500MP015 E CAPACITOR 4.7uF
C542 BICE475500MP015 E CAPACITOR 4.7uF
C543 BICE106250MP015 E CAPACITOR 10uF
C544 BICE106250MP015 E CAPACITOR 10uF
C545 BICE475500MP015 E CAPACITOR 4.7uF
C546 BICE106250MP015 E CAPACITOR 10uF
C547 BICE224500MP015 E CAPACITOR 0.22uF 50V
C548 BICE105500MP015 E CAPACITOR 1uF 50V
C549 BICE105500MP015 E CAPACITOR 1uF 50V
C550 BICE476250MP015 E CAPACITOR 47uF
C551 BICE107100MP015 E CAPACITOR 100uF
C552 BICE475500MP015 E CAPACITOR 4.7uF
C553 BICE105500MP015 E CAPACITOR 1uF 50V
C554 BICE107100MP015 E CAPACITOR 100uF
C555 BICE476250MP015 E CAPACITOR 47uF
C556 BICE475500MP015 E CAPACITOR 4.7uF
C557 BICE107100MP015 E CAPACITOR 100uF
C558 BICC103500KA042 C CAPACITOR 0.01uF 50V
C559 BICE476160MP015 E CAPACITOR 47uF
C560 BICE476160MP015 E CAPACITOR 47uF
C561 BICC104500KA042 C CAPACITOR 0.1uF 50V
C562 BICC101500JA041 C CAPACITOR 100pF 50V
C563 BICC101500JA041 C CAPACITOR 100pF 50V
C570 BICE476160MP015 E CAPACITOR 47uF
C571 BICE476160MP015 E CAPACITOR 47uF
C701 BICC104500KA042 C CAPACITOR 0.1uF 50V
C702 BICC104500KA042 C CAPACITOR 0.1uF 50V
C703 BICC102500KA042 C CAPACITOR 1000pF 50V
C704 BICE476160MP015 E CAPACITOR 47uF
C705 BICC102500KA042 C CAPACITOR 1000pF 50V
C706 BICC102500KA042 C CAPACITOR 1000pF 50V
C707 BICC103500KA042 C CAPACITOR 0.01uF 50V
C708 BICC473500KA042 C CAPACITOR 0.047uF 50V
C709 BICE107100MP015 E CAPACITOR 100uF
C710 BICE107100MP015 E CAPACITOR 100uF
C711 BICC040500CA041 C CAPACITOR 4pF 50V
C712 BICC100500DA041 C CAPACITOR 10pF 50V
C713 BICC682500KA042 C CAPACITOR 6800pF 50V
C714 BICC103500KA042 C CAPACITOR 0.01uF 50V
C715 BICE475500MP010 E CAPACITOR 4.7uF
C716 BICC104500KA042 C CAPACITOR 0.1uF 50V
C717 BICC104500KA042 C CAPACITOR 0.1uF 50V
C718 BICC102500KA042 C CAPACITOR 1000pF 50V
C719 BICC104500KA042 C CAPACITOR 0.1uF 50V
C720 BICC333250KA042 C CAPACITOR 0.033uF 25V
C721 BICC474100KA042 C CAPACITOR 0.47uF 10V
C722 BICC332500KA042 C CAPACITOR 3300pF 50V
C723 BICC474100KA042 C CAPACITOR 0.47uF 10V
C724 BICC103500KA042 C CAPACITOR 0.01uF 50V
C725 BICC683160KA042 C CAPACITOR 0.068uF 16V
C726 BICE106160MP015 E CAPACITOR 10uF
C727 BICC683160KA042 C CAPACITOR 0.068uF 16V
C728 BICC331500KA042 C CAPACITOR 330pF 50V
 Symbol No. Part No. Part Name Description Local
C729 BICC102500KA042 C CAPACITOR 1000pF 50V
C730 BICC222500KA042 C CAPACITOR 2200pF 50V
C731 BICC333250KA042 C CAPACITOR 0.033uF 25V
C732 BICC104500KA042 C CAPACITOR 0.1uF 50V
C733 BICC104500KA042 C CAPACITOR 0.1uF 50V
C759 BICC104500KA042 C CAPACITOR 0.1uF 50V
C763 BICE107100MP015 E CAPACITOR 100uF
C764 BICC104500KA042 C CAPACITOR 0.1uF 50V
C765 BICE477100MP015 E CAPACITOR 470uF
C766 BICC104500KA042 C CAPACITOR 0.1uF 50V
C767 BICE107100MP015 E CAPACITOR 100uF
C768 BICC102500KA042 C CAPACITOR 1000pF 50V
C769 BICE476250MP015 E CAPACITOR 47uF
C770 BICC391500JA041 C CAPACITOR 390pF 50V
C771 BICC391500JA041 C CAPACITOR 390pF 50V
C772 BICC391500JA041 C CAPACITOR 390pF 50V
C773 BICC391500JA041 C CAPACITOR 390pF 50V
C774 BICC102500KA042 C CAPACITOR 1000pF 50V
C801 BICC104500KA042 C CAPACITOR 0.1uF 50V
C802 BICH104500KM019 CAPACITOR 0.1uF /50V
C803 BICE225500MP015 E CAPACITOR 2.2uF
C804 BICC104500KA042 C CAPACITOR 0.1uF 50V
C805 BICC270500JA041 C CAPACITOR 27pF 50V
C806 BICC270500JA041 C CAPACITOR 27pF 50V
C807 BICC104500KA042 C CAPACITOR 0.1uF 50V
C808 BICE107100MP015 E CAPACITOR 100uF
C809 BICC104500KA042 C CAPACITOR 0.1uF 50V
C810 BICC122500KA042 C CAPACITOR 1200pF 50V
C811 BICC122500KA042 C CAPACITOR 1200pF 50V
C812 BICC122500KA042 C CAPACITOR 1200pF 50V
C813 BICC104500KA042 C CAPACITOR 0.1uF 50V
C814 BICE107100MP015 E CAPACITOR 100uF
C815 BICE107100MP015 E CAPACITOR 100uF
C816 BICE475500MP015 E CAPACITOR 4.7uF
C817 BICE475500MP015 E CAPACITOR 4.7uF
C818 BICC102500KA042 C CAPACITOR 1000pF 50V
C819 BICC102500KA042 C CAPACITOR 1000pF 50V
C820 BICC104500KA042 C CAPACITOR 0.1uF 50V
C821 BICC104500KA042 C CAPACITOR 0.1uF 50V
C822 BICC104500KA042 C CAPACITOR 0.1uF 50V
C823 BICC104500KA042 C CAPACITOR 0.1uF 50V
C824 BICC104500KA042 C CAPACITOR 0.1uF 50V
C825 BICC104500KA042 C CAPACITOR 0.1uF 50V
C826 BICC104500KA042 C CAPACITOR 0.1uF 50V
C827 BICC104500KA042 C CAPACITOR 0.1uF 50V
C828 BICC104500KA042 C CAPACITOR 0.1uF 50V
C829 BICC104500KA042 C CAPACITOR 0.1uF 50V
C830 BICC104500KA042 C CAPACITOR 0.1uF 50V
C831 BICC104500KA042 C CAPACITOR 0.1uF 50V
C832 BICC100500DA041 C CAPACITOR 10pF 50V
C833 BICC330500JA041 C CAPACITOR 33pF 50V
C850 BICC104500KA042 C CAPACITOR 0.1uF 50V
R300 BIRC2230105A005 C RESISTOR 22K
Ω
R301 BIRC2230105A005 C RESISTOR 22K Ω
R302 BIRC1010105A005 C RESISTOR 100 Ω
R303 BIRC1010085M000 C RESISTOR 100 Ω 1/8W
R304 BIRC1010085M000 C RESISTOR 100
Ω 1/8W
R305 BIRC1010085M000 C RESISTOR 100
Ω 1/8W
R306 BIRC1010085M000 C RESISTOR 100
Ω 1/8W
R307 BIRC1010085M000 C RESISTOR 100
Ω 1/8W
R308 BIRC1010085M000 C RESISTOR 100
Ω 1/8W
R309 BIRC1010085M000 C RESISTOR 100
Ω 1/8W
R310 BIRC1010105A005 C RESISTOR 100
Ω
R311 BIRC1010105A005 C RESISTOR 100 Ω
R312 BIRC1010105A005 C RESISTOR 100 Ω
R313 BIRC1010105A005 C RESISTOR 100 Ω
R314 BIRC1020105A005 C RESISTOR 1K Ω
R315 BIRC1010105A005 C RESISTOR 100 Ω
R316 BIRC1010105A005 C RESISTOR 100 Ω
R317 BIRC1010085N000 C RESISTOR 100 Ω 1/8W
R318 BIRC1010105A005 C RESISTOR 100
Ω
R319 BIRC1010105A005 C RESISTOR 100 Ω
R320 BIRC1010105A005 C RESISTOR 100 Ω
R321 BIRC1010105A005 C RESISTOR 100 Ω
R322 BIRC1010105A005 C RESISTOR 100 Ω
R323 BIRC1010085M000 C RESISTOR 100 Ω 1/8W
R324 BIRC1010105A005 C RESISTOR 100
Ω
 Symbol No. Part No. Part Name Description Local
