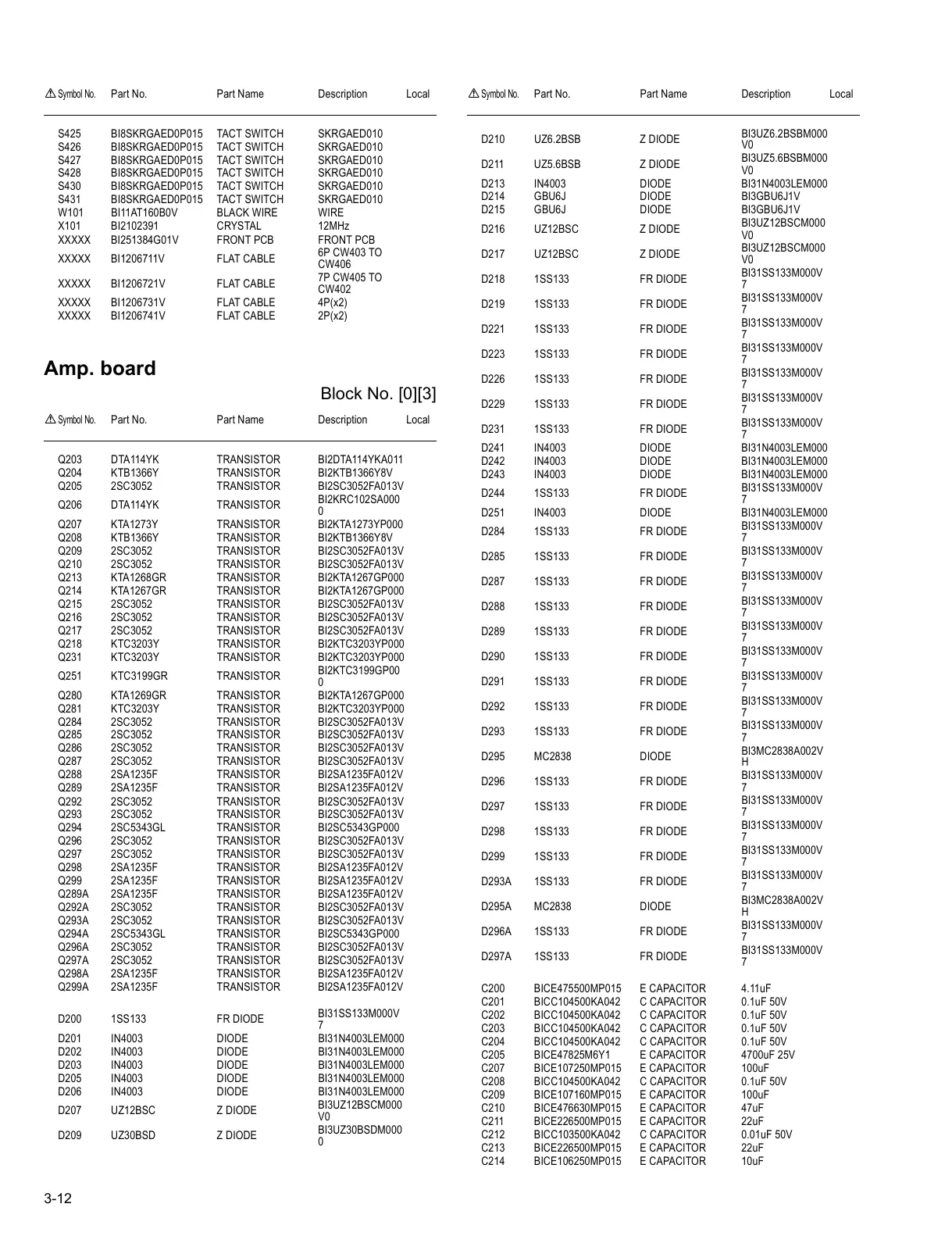

JVC MX-GC5 Service Manual

3-12
Amp. board
Block No. [0][3]
S425 BI8SKRGAED0P015 TACT SWITCH SKRGAED010
S426 BI8SKRGAED0P015 TACT SWITCH SKRGAED010
S427 BI8SKRGAED0P015 TACT SWITCH SKRGAED010
S428 BI8SKRGAED0P015 TACT SWITCH SKRGAED010
S430 BI8SKRGAED0P015 TACT SWITCH SKRGAED010
S431 BI8SKRGAED0P015 TACT SWITCH SKRGAED010
W101 BI11AT160B0V BLACK WIRE WIRE
X101 BI2102391 CRYSTAL 12MHz
XXXXX BI251384G01V FRONT PCB FRONT PCB
XXXXX BI1206711V FLAT CABLE
6P CW403 TO
CW406
XXXXX BI1206721V FLAT CABLE
7P CW405 TO
CW402
XXXXX BI1206731V FLAT CABLE 4P(x2)
XXXXX BI1206741V FLAT CABLE 2P(x2)
 Symbol No. Part No. Part Name Description Local
Q203 DTA114YK TRANSISTOR BI2DTA114YKA011
Q204 KTB1366Y TRANSISTOR BI2KTB1366Y8V
Q205 2SC3052 TRANSISTOR BI2SC3052FA013V
Q206 DTA114YK TRANSISTOR
BI2KRC102SA000
0
Q207 KTA1273Y TRANSISTOR BI2KTA1273YP000
Q208 KTB1366Y TRANSISTOR BI2KTB1366Y8V
Q209 2SC3052 TRANSISTOR BI2SC3052FA013V
Q210 2SC3052 TRANSISTOR BI2SC3052FA013V
Q213 KTA1268GR TRANSISTOR BI2KTA1267GP000
Q214 KTA1267GR TRANSISTOR BI2KTA1267GP000
Q215 2SC3052 TRANSISTOR BI2SC3052FA013V
Q216 2SC3052 TRANSISTOR BI2SC3052FA013V
Q217 2SC3052 TRANSISTOR BI2SC3052FA013V
Q218 KTC3203Y TRANSISTOR BI2KTC3203YP000
Q231 KTC3203Y TRANSISTOR BI2KTC3203YP000
Q251 KTC3199GR TRANSISTOR
BI2KTC3199GP00
0
Q280 KTA1269GR TRANSISTOR BI2KTA1267GP000
Q281 KTC3203Y TRANSISTOR BI2KTC3203YP000
Q284 2SC3052 TRANSISTOR BI2SC3052FA013V
Q285 2SC3052 TRANSISTOR BI2SC3052FA013V
Q286 2SC3052 TRANSISTOR BI2SC3052FA013V
Q287 2SC3052 TRANSISTOR BI2SC3052FA013V
Q288 2SA1235F TRANSISTOR BI2SA1235FA012V
Q289 2SA1235F TRANSISTOR BI2SA1235FA012V
Q292 2SC3052 TRANSISTOR BI2SC3052FA013V
Q293 2SC3052 TRANSISTOR BI2SC3052FA013V
Q294 2SC5343GL TRANSISTOR BI2SC5343GP000
Q296 2SC3052 TRANSISTOR BI2SC3052FA013V
Q297 2SC3052 TRANSISTOR BI2SC3052FA013V
Q298 2SA1235F TRANSISTOR BI2SA1235FA012V
Q299 2SA1235F TRANSISTOR BI2SA1235FA012V
Q289A 2SA1235F TRANSISTOR BI2SA1235FA012V
Q292A 2SC3052 TRANSISTOR BI2SC3052FA013V
Q293A 2SC3052 TRANSISTOR BI2SC3052FA013V
Q294A 2SC5343GL TRANSISTOR BI2SC5343GP000
Q296A 2SC3052 TRANSISTOR BI2SC3052FA013V
Q297A 2SC3052 TRANSISTOR BI2SC3052FA013V
Q298A 2SA1235F TRANSISTOR BI2SA1235FA012V
Q299A 2SA1235F TRANSISTOR BI2SA1235FA012V
D200 1SS133 FR DIODE
BI31SS133M000V
7
D201 IN4003 DIODE BI31N4003LEM000
D202 IN4003 DIODE BI31N4003LEM000
D203 IN4003 DIODE BI31N4003LEM000
D205 IN4003 DIODE BI31N4003LEM000
D206 IN4003 DIODE BI31N4003LEM000
D207 UZ12BSC Z DIODE
BI3UZ12BSCM000
V0
D209 UZ30BSD Z DIODE
BI3UZ30BSDM000
0
 Symbol No. Part No. Part Name Description Local
D210 UZ6.2BSB Z DIODE
BI3UZ6.2BSBM000
V0
D211 UZ5.6BSB Z DIODE
BI3UZ5.6BSBM000
V0
D213 IN4003 DIODE BI31N4003LEM000
D214 GBU6J DIODE BI3GBU6J1V
D215 GBU6J DIODE BI3GBU6J1V
D216 UZ12BSC Z DIODE
BI3UZ12BSCM000
V0
D217 UZ12BSC Z DIODE
BI3UZ12BSCM000
V0
D218 1SS133 FR DIODE
BI31SS133M000V
7
D219 1SS133 FR DIODE
BI31SS133M000V
7
D221 1SS133 FR DIODE
BI31SS133M000V
7
D223 1SS133 FR DIODE
BI31SS133M000V
7
D226 1SS133 FR DIODE
BI31SS133M000V
7
D229 1SS133 FR DIODE
BI31SS133M000V
7
D231 1SS133 FR DIODE
BI31SS133M000V
7
D241 IN4003 DIODE BI31N4003LEM000
D242 IN4003 DIODE BI31N4003LEM000
D243 IN4003 DIODE BI31N4003LEM000
D244 1SS133 FR DIODE
BI31SS133M000V
7
D251 IN4003 DIODE BI31N4003LEM000
D284 1SS133 FR DIODE
BI31SS133M000V
7
D285 1SS133 FR DIODE
BI31SS133M000V
7
D287 1SS133 FR DIODE
BI31SS133M000V
7
D288 1SS133 FR DIODE
BI31SS133M000V
7
D289 1SS133 FR DIODE
BI31SS133M000V
7
D290 1SS133 FR DIODE
BI31SS133M000V
7
D291 1SS133 FR DIODE
BI31SS133M000V
7
D292 1SS133 FR DIODE
BI31SS133M000V
7
D293 1SS133 FR DIODE
BI31SS133M000V
7
D295 MC2838 DIODE
BI3MC2838A002V
H
D296 1SS133 FR DIODE
BI31SS133M000V
7
D297 1SS133 FR DIODE
BI31SS133M000V
7
D298 1SS133 FR DIODE
BI31SS133M000V
7
D299 1SS133 FR DIODE
BI31SS133M000V
7
D293A 1SS133 FR DIODE
BI31SS133M000V
7
D295A MC2838 DIODE
BI3MC2838A002V
H
D296A 1SS133 FR DIODE
BI31SS133M000V
7
D297A 1SS133 FR DIODE
BI31SS133M000V
7
C200 BICE475500MP015 E CAPACITOR 4.11uF
C201 BICC104500KA042 C CAPACITOR 0.1uF 50V
C202 BICC104500KA042 C CAPACITOR 0.1uF 50V
C203 BICC104500KA042 C CAPACITOR 0.1uF 50V
C204 BICC104500KA042 C CAPACITOR 0.1uF 50V
C205 BICE47825M6Y1 E CAPACITOR 4700uF 25V
C207 BICE107250MP015 E CAPACITOR 100uF
C208 BICC104500KA042 C CAPACITOR 0.1uF 50V
C209 BICE107160MP015 E CAPACITOR 100uF
C210 BICE476630MP015 E CAPACITOR 47uF
C211 BICE226500MP015 E CAPACITOR 22uF
C212 BICC103500KA042 C CAPACITOR 0.01uF 50V
C213 BICE226500MP015 E CAPACITOR 22uF
C214 BICE106250MP015 E CAPACITOR 10uF
 Symbol No. Part No. Part Name Description Local
