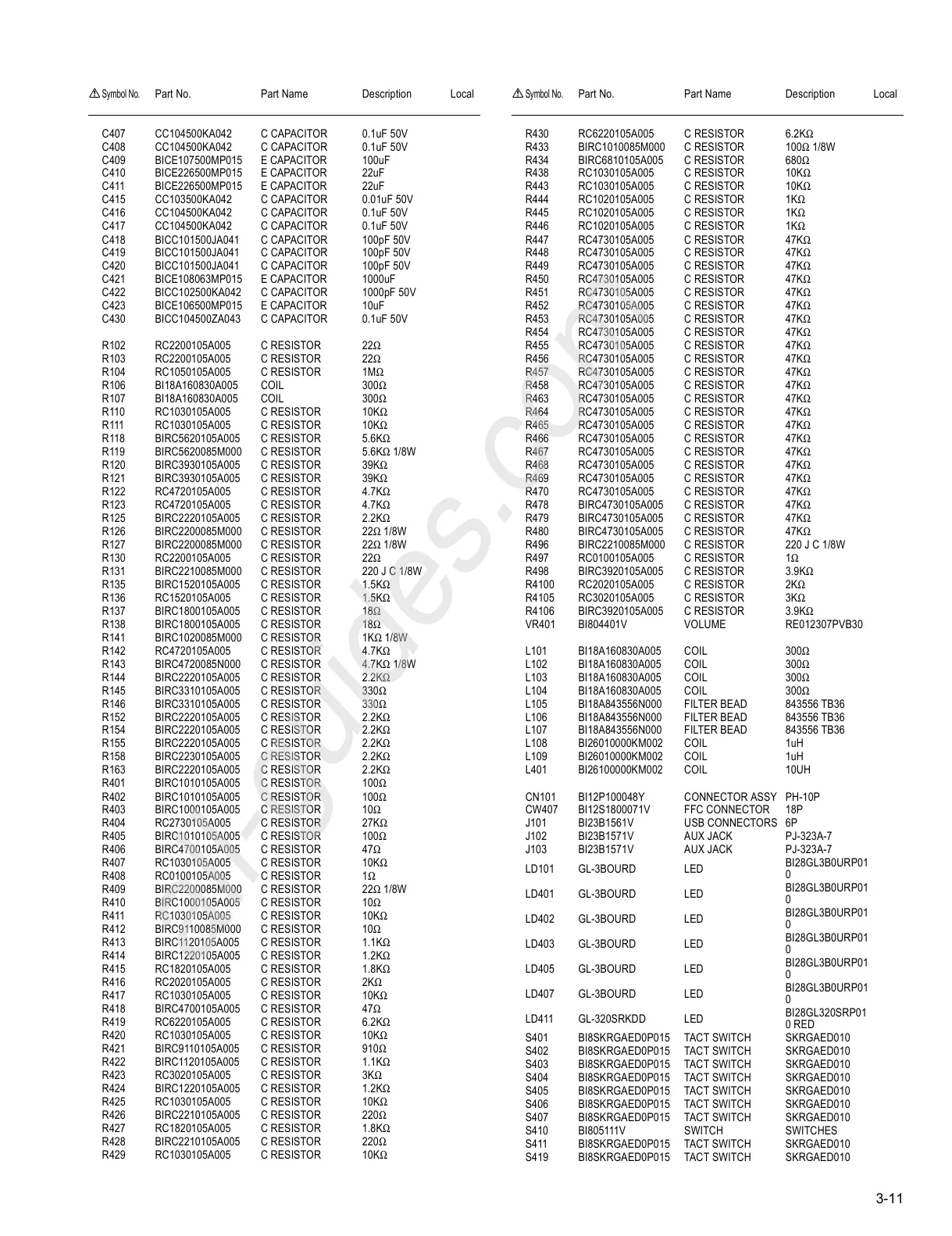

JVC MX-GC5 Service Manual

3-11
C407 CC104500KA042 C CAPACITOR 0.1uF 50V
C408 CC104500KA042 C CAPACITOR 0.1uF 50V
C409 BICE107500MP015 E CAPACITOR 100uF
C410 BICE226500MP015 E CAPACITOR 22uF
C411 BICE226500MP015 E CAPACITOR 22uF
C415 CC103500KA042 C CAPACITOR 0.01uF 50V
C416 CC104500KA042 C CAPACITOR 0.1uF 50V
C417 CC104500KA042 C CAPACITOR 0.1uF 50V
C418 BICC101500JA041 C CAPACITOR 100pF 50V
C419 BICC101500JA041 C CAPACITOR 100pF 50V
C420 BICC101500JA041 C CAPACITOR 100pF 50V
C421 BICE108063MP015 E CAPACITOR 1000uF
C422 BICC102500KA042 C CAPACITOR 1000pF 50V
C423 BICE106500MP015 E CAPACITOR 10uF
C430 BICC104500ZA043 C CAPACITOR 0.1uF 50V
R102 RC2200105A005 C RESISTOR 22
Ω
R103 RC2200105A005 C RESISTOR 22 Ω
R104 RC1050105A005 C RESISTOR 1M Ω
R106 BI18A160830A005 COIL 300 Ω
R107 BI18A160830A005 COIL 300 Ω
R110 RC1030105A005 C RESISTOR 10K Ω
R111 RC1030105A005 C RESISTOR 10K Ω
R118 BIRC5620105A005 C RESISTOR 5.6K Ω
R119 BIRC5620085M000 C RESISTOR 5.6K Ω 1/8W
R120 BIRC3930105A005 C RESISTOR 39K
Ω
R121 BIRC3930105A005 C RESISTOR 39K Ω
R122 RC4720105A005 C RESISTOR 4.7K Ω
R123 RC4720105A005 C RESISTOR 4.7K Ω
R125 BIRC2220105A005 C RESISTOR 2.2K Ω
R126 BIRC2200085M000 C RESISTOR 22 Ω 1/8W
R127 BIRC2200085M000 C RESISTOR 22
Ω 1/8W
R130 RC2200105A005 C RESISTOR 22
Ω
R131 BIRC2210085M000 C RESISTOR 220 J C 1/8W
R135 BIRC1520105A005 C RESISTOR 1.5K
Ω
R136 RC1520105A005 C RESISTOR 1.5K Ω
R137 BIRC1800105A005 C RESISTOR 18 Ω
R138 BIRC1800105A005 C RESISTOR 18 Ω
R141 BIRC1020085M000 C RESISTOR 1K Ω 1/8W
R142 RC4720105A005 C RESISTOR 4.7K
Ω
R143 BIRC4720085N000 C RESISTOR 4.7K Ω 1/8W
R144 BIRC2220105A005 C RESISTOR 2.2K
Ω
R145 BIRC3310105A005 C RESISTOR 330 Ω
R146 BIRC3310105A005 C RESISTOR 330 Ω
R152 BIRC2220105A005 C RESISTOR 2.2K Ω
R154 BIRC2220105A005 C RESISTOR 2.2K Ω
R155 BIRC2220105A005 C RESISTOR 2.2K Ω
R158 BIRC2230105A005 C RESISTOR 2.2K Ω
R163 BIRC2220105A005 C RESISTOR 2.2K Ω
R401 BIRC1010105A005 C RESISTOR 100 Ω
R402 BIRC1010105A005 C RESISTOR 100 Ω
R403 BIRC1000105A005 C RESISTOR 10 Ω
R404 RC2730105A005 C RESISTOR 27K Ω
R405 BIRC1010105A005 C RESISTOR 100 Ω
R406 BIRC4700105A005 C RESISTOR 47 Ω
R407 RC1030105A005 C RESISTOR 10K Ω
R408 RC0100105A005 C RESISTOR 1 Ω
R409 BIRC2200085M000 C RESISTOR 22 Ω 1/8W
R410 BIRC1000105A005 C RESISTOR 10
Ω
R411 RC1030105A005 C RESISTOR 10K Ω
R412 BIRC9110085M000 C RESISTOR 10 Ω
R413 BIRC1120105A005 C RESISTOR 1.1K Ω
R414 BIRC1220105A005 C RESISTOR 1.2K Ω
R415 RC1820105A005 C RESISTOR 1.8K Ω
R416 RC2020105A005 C RESISTOR 2K Ω
R417 RC1030105A005 C RESISTOR 10K Ω
R418 BIRC4700105A005 C RESISTOR 47 Ω
R419 RC6220105A005 C RESISTOR 6.2K Ω
R420 RC1030105A005 C RESISTOR 10K Ω
R421 BIRC9110105A005 C RESISTOR 910 Ω
R422 BIRC1120105A005 C RESISTOR 1.1K Ω
R423 RC3020105A005 C RESISTOR 3K Ω
R424 BIRC1220105A005 C RESISTOR 1.2K Ω
R425 RC1030105A005 C RESISTOR 10K Ω
R426 BIRC2210105A005 C RESISTOR 220 Ω
R427 RC1820105A005 C RESISTOR 1.8K Ω
R428 BIRC2210105A005 C RESISTOR 220 Ω
R429 RC1030105A005 C RESISTOR 10K Ω
 Symbol No. Part No. Part Name Description Local
R430 RC6220105A005 C RESISTOR 6.2K Ω
R433 BIRC1010085M000 C RESISTOR 100 Ω 1/8W
R434 BIRC6810105A005 C RESISTOR 680
Ω
R438 RC1030105A005 C RESISTOR 10K Ω
R443 RC1030105A005 C RESISTOR 10K Ω
R444 RC1020105A005 C RESISTOR 1K Ω
R445 RC1020105A005 C RESISTOR 1K Ω
R446 RC1020105A005 C RESISTOR 1K Ω
R447 RC4730105A005 C RESISTOR 47K Ω
R448 RC4730105A005 C RESISTOR 47K Ω
R449 RC4730105A005 C RESISTOR 47K Ω
R450 RC4730105A005 C RESISTOR 47K Ω
R451 RC4730105A005 C RESISTOR 47K Ω
R452 RC4730105A005 C RESISTOR 47K Ω
R453 RC4730105A005 C RESISTOR 47K Ω
R454 RC4730105A005 C RESISTOR 47K Ω
R455 RC4730105A005 C RESISTOR 47K Ω
R456 RC4730105A005 C RESISTOR 47K Ω
R457 RC4730105A005 C RESISTOR 47K Ω
R458 RC4730105A005 C RESISTOR 47K Ω
R463 RC4730105A005 C RESISTOR 47K Ω
R464 RC4730105A005 C RESISTOR 47K Ω
R465 RC4730105A005 C RESISTOR 47K Ω
R466 RC4730105A005 C RESISTOR 47K Ω
R467 RC4730105A005 C RESISTOR 47K Ω
R468 RC4730105A005 C RESISTOR 47K Ω
R469 RC4730105A005 C RESISTOR 47K Ω
R470 RC4730105A005 C RESISTOR 47K Ω
R478 BIRC4730105A005 C RESISTOR 47K Ω
R479 BIRC4730105A005 C RESISTOR 47K Ω
R480 BIRC4730105A005 C RESISTOR 47K Ω
R496 BIRC2210085M000 C RESISTOR 220 J C 1/8W
R497 RC0100105A005 C RESISTOR 1
Ω
R498 BIRC3920105A005 C RESISTOR 3.9K Ω
R4100 RC2020105A005 C RESISTOR 2K Ω
R4105 RC3020105A005 C RESISTOR 3K Ω
R4106 BIRC3920105A005 C RESISTOR 3.9K Ω
VR401 BI804401V VOLUME RE012307PVB30
L101 BI18A160830A005 COIL 300
Ω
L102 BI18A160830A005 COIL 300 Ω
L103 BI18A160830A005 COIL 300 Ω
L104 BI18A160830A005 COIL 300 Ω
L105 BI18A843556N000 FILTER BEAD 843556 TB36
L106 BI18A843556N000 FILTER BEAD 843556 TB36
L107 BI18A843556N000 FILTER BEAD 843556 TB36
L108 BI26010000KM002 COIL 1uH
L109 BI26010000KM002 COIL 1uH
L401 BI26100000KM002 COIL 10UH
CN101 BI12P100048Y CONNECTOR ASSY PH-10P
CW407 BI12S1800071V FFC CONNECTOR 18P
J101 BI23B1561V USB CONNECTORS 6P
J102 BI23B1571V AUX JACK PJ-323A-7
J103 BI23B1571V AUX JACK PJ-323A-7
LD101 GL-3BOURD LED
BI28GL3B0URP01
0
LD401 GL-3BOURD LED
BI28GL3B0URP01
0
LD402 GL-3BOURD LED
BI28GL3B0URP01
0
LD403 GL-3BOURD LED
BI28GL3B0URP01
0
LD405 GL-3BOURD LED
BI28GL3B0URP01
0
LD407 GL-3BOURD LED
BI28GL3B0URP01
0
LD411 GL-320SRKDD LED
BI28GL320SRP01
0 RED
S401 BI8SKRGAED0P015 TACT SWITCH SKRGAED010
S402 BI8SKRGAED0P015 TACT SWITCH SKRGAED010
S403 BI8SKRGAED0P015 TACT SWITCH SKRGAED010
S404 BI8SKRGAED0P015 TACT SWITCH SKRGAED010
S405 BI8SKRGAED0P015 TACT SWITCH SKRGAED010
S406 BI8SKRGAED0P015 TACT SWITCH SKRGAED010
S407 BI8SKRGAED0P015 TACT SWITCH SKRGAED010
S410 BI805111V SWITCH SWITCHES
S411 BI8SKRGAED0P015 TACT SWITCH SKRGAED010
S419 BI8SKRGAED0P015 TACT SWITCH SKRGAED010
