JVC MX-GC5

3-7

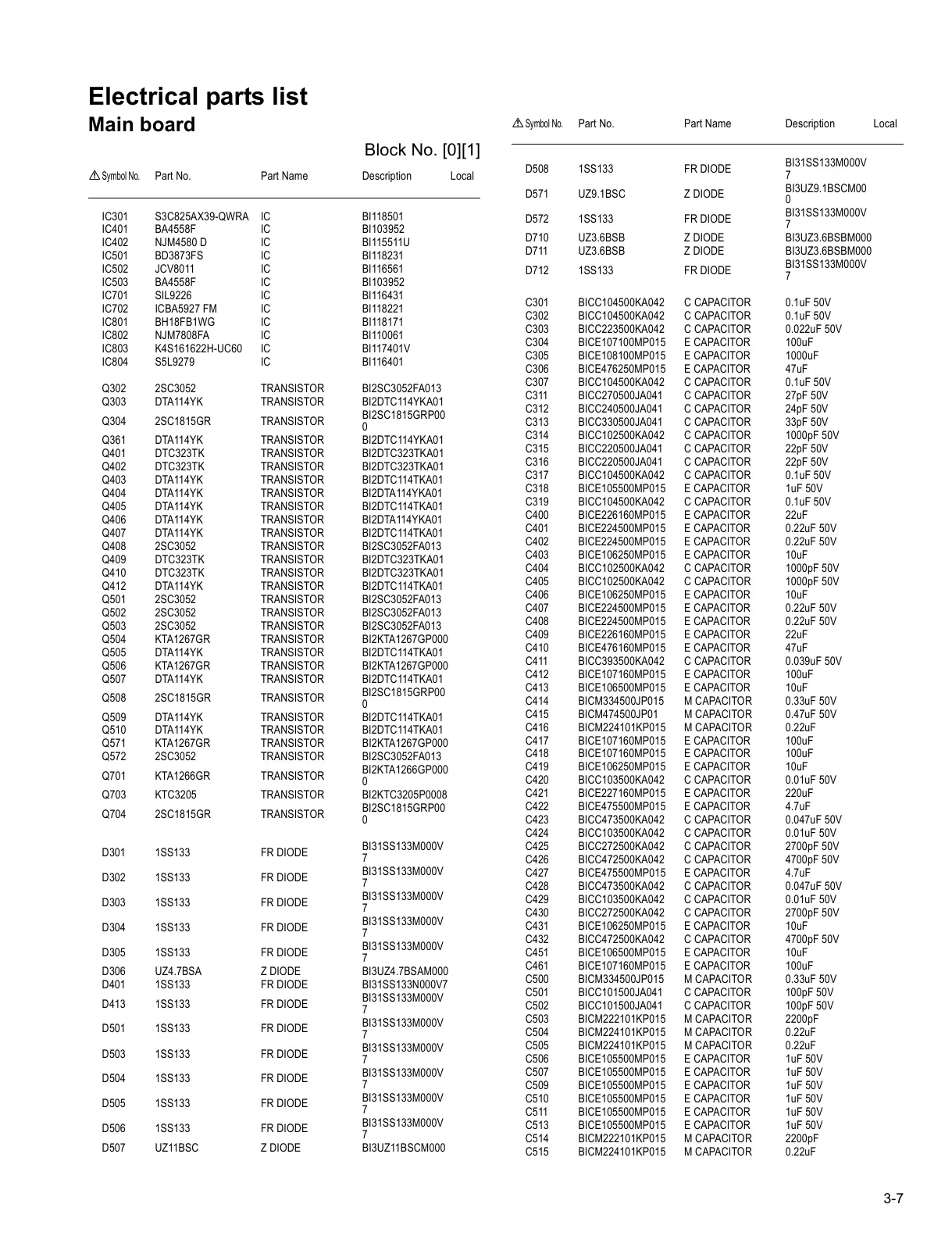

Electrical parts list
Main board
Block No. [0][1]
 Symbol No. Part No. Part Name Description Local
IC301 S3C825AX39-QWRA IC BI118501
IC401 BA4558F IC BI103952
IC402 NJM4580 D IC BI115511U
IC501 BD3873FS IC BI118231
IC502 JCV8011 IC BI116561
IC503 BA4558F IC BI103952
IC701 SIL9226 IC BI116431
IC702 ICBA5927 FM IC BI118221
IC801 BH18FB1WG IC BI118171
IC802 NJM7808FA IC BI110061
IC803 K4S161622H-UC60 IC BI117401V
IC804 S5L9279 IC BI116401
Q302 2SC3052 TRANSISTOR BI2SC3052FA013
Q303 DTA114YK TRANSISTOR BI2DTC114YKA01
Q304 2SC1815GR TRANSISTOR
BI2SC1815GRP00
0
Q361 DTA114YK TRANSISTOR BI2DTC114YKA01
Q401 DTC323TK TRANSISTOR BI2DTC323TKA01
Q402 DTC323TK TRANSISTOR BI2DTC323TKA01
Q403 DTA114YK TRANSISTOR BI2DTC114TKA01
Q404 DTA114YK TRANSISTOR BI2DTA114YKA01
Q405 DTA114YK TRANSISTOR BI2DTC114TKA01
Q406 DTA114YK TRANSISTOR BI2DTA114YKA01
Q407 DTA114YK TRANSISTOR BI2DTC114TKA01
Q408 2SC3052 TRANSISTOR BI2SC3052FA013
Q409 DTC323TK TRANSISTOR BI2DTC323TKA01
Q410 DTC323TK TRANSISTOR BI2DTC323TKA01
Q412 DTA114YK TRANSISTOR BI2DTC114TKA01
Q501 2SC3052 TRANSISTOR BI2SC3052FA013
Q502 2SC3052 TRANSISTOR BI2SC3052FA013
Q503 2SC3052 TRANSISTOR BI2SC3052FA013
Q504 KTA1267GR TRANSISTOR BI2KTA1267GP000
Q505 DTA114YK TRANSISTOR BI2DTC114TKA01
Q506 KTA1267GR TRANSISTOR BI2KTA1267GP000
Q507 DTA114YK TRANSISTOR BI2DTC114TKA01
Q508 2SC1815GR TRANSISTOR
BI2SC1815GRP00
0
Q509 DTA114YK TRANSISTOR BI2DTC114TKA01
Q510 DTA114YK TRANSISTOR BI2DTC114TKA01
Q571 KTA1267GR TRANSISTOR BI2KTA1267GP000
Q572 2SC3052 TRANSISTOR BI2SC3052FA013
Q701 KTA1266GR TRANSISTOR
BI2KTA1266GP000
0
Q703 KTC3205 TRANSISTOR BI2KTC3205P0008
Q704 2SC1815GR TRANSISTOR
BI2SC1815GRP00
0
D301 1SS133 FR DIODE
BI31SS133M000V
7
D302 1SS133 FR DIODE
BI31SS133M000V
7
D303 1SS133 FR DIODE
BI31SS133M000V
7
D304 1SS133 FR DIODE
BI31SS133M000V
7
D305 1SS133 FR DIODE
BI31SS133M000V
7
D306 UZ4.7BSA Z DIODE BI3UZ4.7BSAM000
D401 1SS133 FR DIODE BI31SS133N000V7
D413 1SS133 FR DIODE
BI31SS133M000V
7
D501 1SS133 FR DIODE
BI31SS133M000V
7
D503 1SS133 FR DIODE
BI31SS133M000V
7
D504 1SS133 FR DIODE
BI31SS133M000V
7
D505 1SS133 FR DIODE
BI31SS133M000V
7
D506 1SS133 FR DIODE
BI31SS133M000V
7
D507 UZ11BSC Z DIODE BI3UZ11BSCM000
D508 1SS133 FR DIODE
BI31SS133M000V
7
D571 UZ9.1BSC Z DIODE
BI3UZ9.1BSCM00
0
D572 1SS133 FR DIODE
BI31SS133M000V
7
D710 UZ3.6BSB Z DIODE BI3UZ3.6BSBM000
D711 UZ3.6BSB Z DIODE BI3UZ3.6BSBM000
D712 1SS133 FR DIODE
BI31SS133M000V
7
C301 BICC104500KA042 C CAPACITOR 0.1uF 50V
C302 BICC104500KA042 C CAPACITOR 0.1uF 50V
C303 BICC223500KA042 C CAPACITOR 0.022uF 50V
C304 BICE107100MP015 E CAPACITOR 100uF
C305 BICE108100MP015 E CAPACITOR 1000uF
C306 BICE476250MP015 E CAPACITOR 47uF
C307 BICC104500KA042 C CAPACITOR 0.1uF 50V
C311 BICC270500JA041 C CAPACITOR 27pF 50V
C312 BICC240500JA041 C CAPACITOR 24pF 50V
C313 BICC330500JA041 C CAPACITOR 33pF 50V
C314 BICC102500KA042 C CAPACITOR 1000pF 50V
C315 BICC220500JA041 C CAPACITOR 22pF 50V
C316 BICC220500JA041 C CAPACITOR 22pF 50V
C317 BICC104500KA042 C CAPACITOR 0.1uF 50V
C318 BICE105500MP015 E CAPACITOR 1uF 50V
C319 BICC104500KA042 C CAPACITOR 0.1uF 50V
C400 BICE226160MP015 E CAPACITOR 22uF
C401 BICE224500MP015 E CAPACITOR 0.22uF 50V
C402 BICE224500MP015 E CAPACITOR 0.22uF 50V
C403 BICE106250MP015 E CAPACITOR 10uF
C404 BICC102500KA042 C CAPACITOR 1000pF 50V
C405 BICC102500KA042 C CAPACITOR 1000pF 50V
C406 BICE106250MP015 E CAPACITOR 10uF
C407 BICE224500MP015 E CAPACITOR 0.22uF 50V
C408 BICE224500MP015 E CAPACITOR 0.22uF 50V
C409 BICE226160MP015 E CAPACITOR 22uF
C410 BICE476160MP015 E CAPACITOR 47uF
C411 BICC393500KA042 C CAPACITOR 0.039uF 50V
C412 BICE107160MP015 E CAPACITOR 100uF
C413 BICE106500MP015 E CAPACITOR 10uF
C414 BICM334500JP015 M CAPACITOR 0.33uF 50V
C415 BICM474500JP01 M CAPACITOR 0.47uF 50V
C416 BICM224101KP015 M CAPACITOR 0.22uF
C417 BICE107160MP015 E CAPACITOR 100uF
C418 BICE107160MP015 E CAPACITOR 100uF
C419 BICE106250MP015 E CAPACITOR 10uF
C420 BICC103500KA042 C CAPACITOR 0.01uF 50V
C421 BICE227160MP015 E CAPACITOR 220uF
C422 BICE475500MP015 E CAPACITOR 4.7uF
C423 BICC473500KA042 C CAPACITOR 0.047uF 50V
C424 BICC103500KA042 C CAPACITOR 0.01uF 50V
C425 BICC272500KA042 C CAPACITOR 2700pF 50V
C426 BICC472500KA042 C CAPACITOR 4700pF 50V
C427 BICE475500MP015 E CAPACITOR 4.7uF
C428 BICC473500KA042 C CAPACITOR 0.047uF 50V
C429 BICC103500KA042 C CAPACITOR 0.01uF 50V
C430 BICC272500KA042 C CAPACITOR 2700pF 50V
C431 BICE106250MP015 E CAPACITOR 10uF
C432 BICC472500KA042 C CAPACITOR 4700pF 50V
C451 BICE106500MP015 E CAPACITOR 10uF
C461 BICE107160MP015 E CAPACITOR 100uF
C500 BICM334500JP015 M CAPACITOR 0.33uF 50V
C501 BICC101500JA041 C CAPACITOR 100pF 50V
C502 BICC101500JA041 C CAPACITOR 100pF 50V
C503 BICM222101KP015 M CAPACITOR 2200pF
C504 BICM224101KP015 M CAPACITOR 0.22uF
C505 BICM224101KP015 M CAPACITOR 0.22uF
C506 BICE105500MP015 E CAPACITOR 1uF 50V
C507 BICE105500MP015 E CAPACITOR 1uF 50V
C509 BICE105500MP015 E CAPACITOR 1uF 50V
C510 BICE105500MP015 E CAPACITOR 1uF 50V
C511 BICE105500MP015 E CAPACITOR 1uF 50V
C513 BICE105500MP015 E CAPACITOR 1uF 50V
C514 BICM222101KP015 M CAPACITOR 2200pF
C515 BICM224101KP015 M CAPACITOR 0.22uF
 Symbol No. Part No. Part Name Description Local
