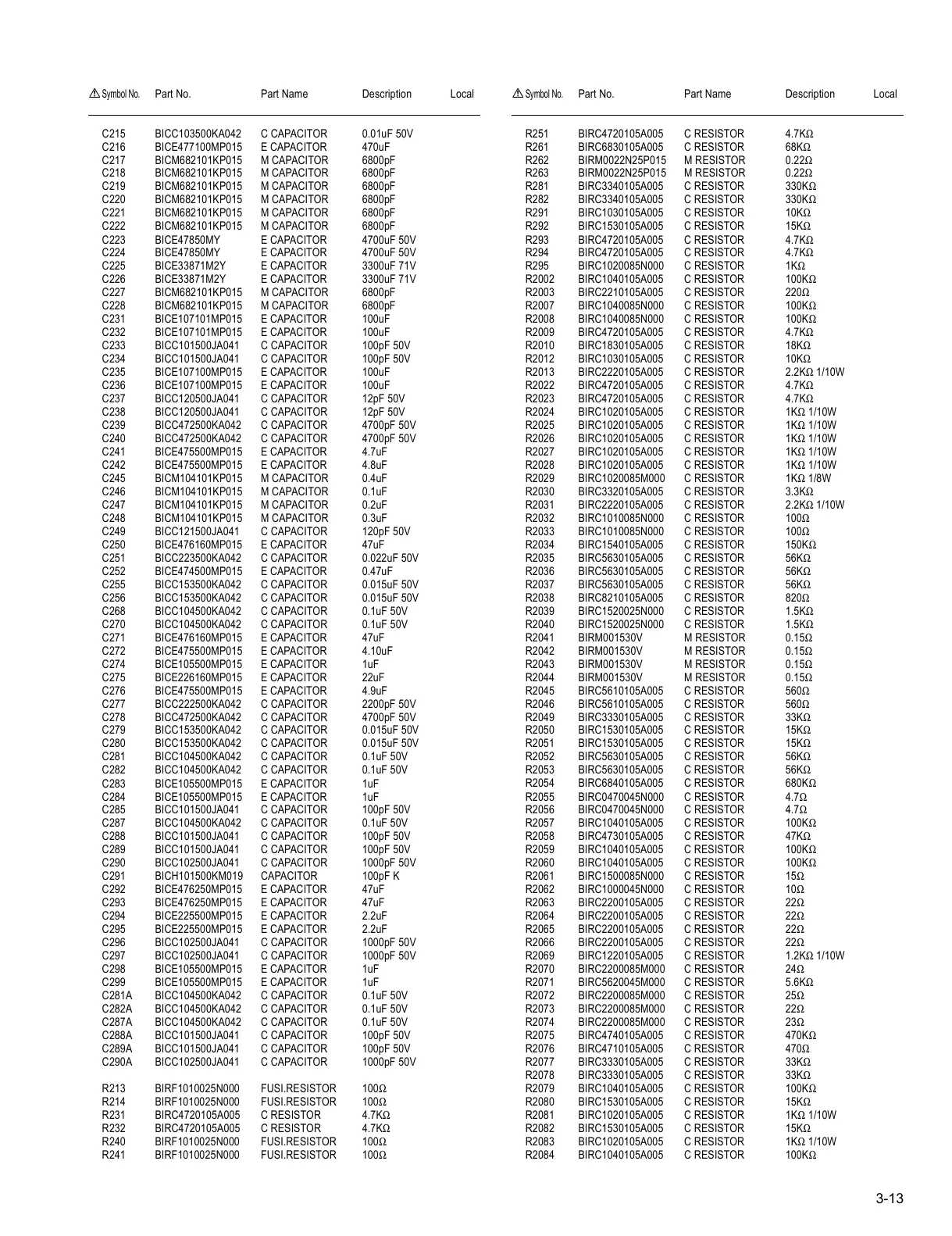

JVC MX-GC5 Service Manual

3-13
C215 BICC103500KA042 C CAPACITOR 0.01uF 50V
C216 BICE477100MP015 E CAPACITOR 470uF
C217 BICM682101KP015 M CAPACITOR 6800pF
C218 BICM682101KP015 M CAPACITOR 6800pF
C219 BICM682101KP015 M CAPACITOR 6800pF
C220 BICM682101KP015 M CAPACITOR 6800pF
C221 BICM682101KP015 M CAPACITOR 6800pF
C222 BICM682101KP015 M CAPACITOR 6800pF
C223 BICE47850MY E CAPACITOR 4700uF 50V
C224 BICE47850MY E CAPACITOR 4700uF 50V
C225 BICE33871M2Y E CAPACITOR 3300uF 71V
C226 BICE33871M2Y E CAPACITOR 3300uF 71V
C227 BICM682101KP015 M CAPACITOR 6800pF
C228 BICM682101KP015 M CAPACITOR 6800pF
C231 BICE107101MP015 E CAPACITOR 100uF
C232 BICE107101MP015 E CAPACITOR 100uF
C233 BICC101500JA041 C CAPACITOR 100pF 50V
C234 BICC101500JA041 C CAPACITOR 100pF 50V
C235 BICE107100MP015 E CAPACITOR 100uF
C236 BICE107100MP015 E CAPACITOR 100uF
C237 BICC120500JA041 C CAPACITOR 12pF 50V
C238 BICC120500JA041 C CAPACITOR 12pF 50V
C239 BICC472500KA042 C CAPACITOR 4700pF 50V
C240 BICC472500KA042 C CAPACITOR 4700pF 50V
C241 BICE475500MP015 E CAPACITOR 4.7uF
C242 BICE475500MP015 E CAPACITOR 4.8uF
C245 BICM104101KP015 M CAPACITOR 0.4uF
C246 BICM104101KP015 M CAPACITOR 0.1uF
C247 BICM104101KP015 M CAPACITOR 0.2uF
C248 BICM104101KP015 M CAPACITOR 0.3uF
C249 BICC121500JA041 C CAPACITOR 120pF 50V
C250 BICE476160MP015 E CAPACITOR 47uF
C251 BICC223500KA042 C CAPACITOR 0.022uF 50V
C252 BICE474500MP015 E CAPACITOR 0.47uF
C255 BICC153500KA042 C CAPACITOR 0.015uF 50V
C256 BICC153500KA042 C CAPACITOR 0.015uF 50V
C268 BICC104500KA042 C CAPACITOR 0.1uF 50V
C270 BICC104500KA042 C CAPACITOR 0.1uF 50V
C271 BICE476160MP015 E CAPACITOR 47uF
C272 BICE475500MP015 E CAPACITOR 4.10uF
C274 BICE105500MP015 E CAPACITOR 1uF
C275 BICE226160MP015 E CAPACITOR 22uF
C276 BICE475500MP015 E CAPACITOR 4.9uF
C277 BICC222500KA042 C CAPACITOR 2200pF 50V
C278 BICC472500KA042 C CAPACITOR 4700pF 50V
C279 BICC153500KA042 C CAPACITOR 0.015uF 50V
C280 BICC153500KA042 C CAPACITOR 0.015uF 50V
C281 BICC104500KA042 C CAPACITOR 0.1uF 50V
C282 BICC104500KA042 C CAPACITOR 0.1uF 50V
C283 BICE105500MP015 E CAPACITOR 1uF
C284 BICE105500MP015 E CAPACITOR 1uF
C285 BICC101500JA041 C CAPACITOR 100pF 50V
C287 BICC104500KA042 C CAPACITOR 0.1uF 50V
C288 BICC101500JA041 C CAPACITOR 100pF 50V
C289 BICC101500JA041 C CAPACITOR 100pF 50V
C290 BICC102500JA041 C CAPACITOR 1000pF 50V
C291 BICH101500KM019 CAPACITOR 100pF K
C292 BICE476250MP015 E CAPACITOR 47uF
C293 BICE476250MP015 E CAPACITOR 47uF
C294 BICE225500MP015 E CAPACITOR 2.2uF
C295 BICE225500MP015 E CAPACITOR 2.2uF
C296 BICC102500JA041 C CAPACITOR 1000pF 50V
C297 BICC102500JA041 C CAPACITOR 1000pF 50V
C298 BICE105500MP015 E CAPACITOR 1uF
C299 BICE105500MP015 E CAPACITOR 1uF
C281A BICC104500KA042 C CAPACITOR 0.1uF 50V
C282A BICC104500KA042 C CAPACITOR 0.1uF 50V
C287A BICC104500KA042 C CAPACITOR 0.1uF 50V
C288A BICC101500JA041 C CAPACITOR 100pF 50V
C289A BICC101500JA041 C CAPACITOR 100pF 50V
C290A BICC102500JA041 C CAPACITOR 1000pF 50V
R213 BIRF1010025N000 FUSI.RESISTOR 100
Ω
R214 BIRF1010025N000 FUSI.RESISTOR 100 Ω
R231 BIRC4720105A005 C RESISTOR 4.7K Ω
R232 BIRC4720105A005 C RESISTOR 4.7K Ω
R240 BIRF1010025N000 FUSI.RESISTOR 100 Ω
R241 BIRF1010025N000 FUSI.RESISTOR 100 Ω
 Symbol No. Part No. Part Name Description Local
R251 BIRC4720105A005 C RESISTOR 4.7K Ω
R261 BIRC6830105A005 C RESISTOR 68K Ω
R262 BIRM0022N25P015 M RESISTOR 0.22 Ω
R263 BIRM0022N25P015 M RESISTOR 0.22 Ω
R281 BIRC3340105A005 C RESISTOR 330K Ω
R282 BIRC3340105A005 C RESISTOR 330K Ω
R291 BIRC1030105A005 C RESISTOR 10K Ω
R292 BIRC1530105A005 C RESISTOR 15K Ω
R293 BIRC4720105A005 C RESISTOR 4.7K Ω
R294 BIRC4720105A005 C RESISTOR 4.7K Ω
R295 BIRC1020085N000 C RESISTOR 1K Ω
R2002 BIRC1040105A005 C RESISTOR 100K Ω
R2003 BIRC2210105A005 C RESISTOR 220 Ω
R2007 BIRC1040085N000 C RESISTOR 100K Ω
R2008 BIRC1040085N000 C RESISTOR 100K Ω
R2009 BIRC4720105A005 C RESISTOR 4.7K Ω
R2010 BIRC1830105A005 C RESISTOR 18K Ω
R2012 BIRC1030105A005 C RESISTOR 10K Ω
R2013 BIRC2220105A005 C RESISTOR 2.2K Ω 1/10W
R2022 BIRC4720105A005 C RESISTOR 4.7K
Ω
R2023 BIRC4720105A005 C RESISTOR 4.7K Ω
R2024 BIRC1020105A005 C RESISTOR 1K Ω 1/10W
R2025 BIRC1020105A005 C RESISTOR 1K
Ω 1/10W
R2026 BIRC1020105A005 C RESISTOR 1K
Ω 1/10W
R2027 BIRC1020105A005 C RESISTOR 1K
Ω 1/10W
R2028 BIRC1020105A005 C RESISTOR 1K
Ω 1/10W
R2029 BIRC1020085M000 C RESISTOR 1K
Ω 1/8W
R2030 BIRC3320105A005 C RESISTOR 3.3K
Ω
R2031 BIRC2220105A005 C RESISTOR 2.2K Ω 1/10W
R2032 BIRC1010085N000 C RESISTOR 100
Ω
R2033 BIRC1010085N000 C RESISTOR 100 Ω
R2034 BIRC1540105A005 C RESISTOR 150K Ω
R2035 BIRC5630105A005 C RESISTOR 56K Ω
R2036 BIRC5630105A005 C RESISTOR 56K Ω
R2037 BIRC5630105A005 C RESISTOR 56K Ω
R2038 BIRC8210105A005 C RESISTOR 820 Ω
R2039 BIRC1520025N000 C RESISTOR 1.5K Ω
R2040 BIRC1520025N000 C RESISTOR 1.5K Ω
R2041 BIRM001530V M RESISTOR 0.15 Ω
R2042 BIRM001530V M RESISTOR 0.15 Ω
R2043 BIRM001530V M RESISTOR 0.15 Ω
R2044 BIRM001530V M RESISTOR 0.15 Ω
R2045 BIRC5610105A005 C RESISTOR 560 Ω
R2046 BIRC5610105A005 C RESISTOR 560 Ω
R2049 BIRC3330105A005 C RESISTOR 33K Ω
R2050 BIRC1530105A005 C RESISTOR 15K Ω
R2051 BIRC1530105A005 C RESISTOR 15K Ω
R2052 BIRC5630105A005 C RESISTOR 56K Ω
R2053 BIRC5630105A005 C RESISTOR 56K Ω
R2054 BIRC6840105A005 C RESISTOR 680K Ω
R2055 BIRC0470045N000 C RESISTOR 4.7 Ω
R2056 BIRC0470045N000 C RESISTOR 4.7 Ω
R2057 BIRC1040105A005 C RESISTOR 100K Ω
R2058 BIRC4730105A005 C RESISTOR 47K Ω
R2059 BIRC1040105A005 C RESISTOR 100K Ω
R2060 BIRC1040105A005 C RESISTOR 100K Ω
R2061 BIRC1500085N000 C RESISTOR 15 Ω
R2062 BIRC1000045N000 C RESISTOR 10 Ω
R2063 BIRC2200105A005 C RESISTOR 22 Ω
R2064 BIRC2200105A005 C RESISTOR 22 Ω
R2065 BIRC2200105A005 C RESISTOR 22 Ω
R2066 BIRC2200105A005 C RESISTOR 22 Ω
R2069 BIRC1220105A005 C RESISTOR 1.2K Ω 1/10W
R2070 BIRC2200085M000 C RESISTOR 24
Ω
R2071 BIRC5620045M000 C RESISTOR 5.6K Ω
R2072 BIRC2200085M000 C RESISTOR 25 Ω
R2073 BIRC2200085M000 C RESISTOR 22 Ω
R2074 BIRC2200085M000 C RESISTOR 23 Ω
R2075 BIRC4740105A005 C RESISTOR 470K Ω
R2076 BIRC4710105A005 C RESISTOR 470 Ω
R2077 BIRC3330105A005 C RESISTOR 33K Ω
R2078 BIRC3330105A005 C RESISTOR 33K Ω
R2079 BIRC1040105A005 C RESISTOR 100K Ω
R2080 BIRC1530105A005 C RESISTOR 15K Ω
R2081 BIRC1020105A005 C RESISTOR 1K Ω 1/10W
R2082 BIRC1530105A005 C RESISTOR 15K
Ω
R2083 BIRC1020105A005 C RESISTOR 1K Ω 1/10W
R2084 BIRC1040105A005 C RESISTOR 100K
Ω
