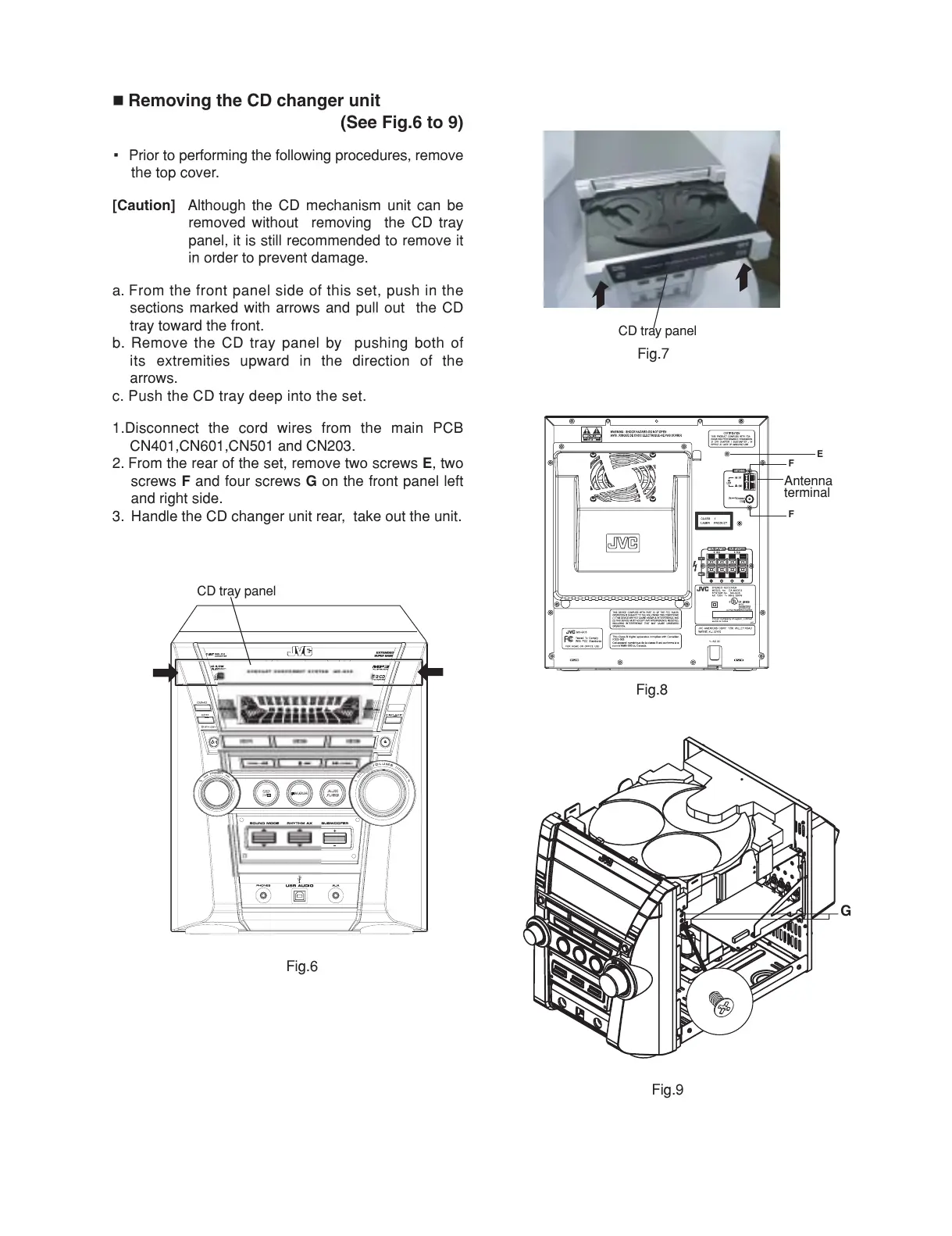

Removing the CD changer unit
(See Fig.6 to 9)
Prior to performing the following procedures, remove
the top cover.
[Caution]
Although the CD mechanism unit can be
removed without removing the CD tray
panel, it is still recommended to remove it
in order to prevent damage.
a. From the front panel side of this set, push in the
sections marked with arrows and pull out the CD
tray toward the front.
b. Remove the CD tray panel by pushing both of
its extremities upward in the direction of the
arrows.
c. Push the CD tray deep into the set.
1.Disconnect the cord wires from the main PCB
CN401,CN601,CN501 and CN203.
2.
From the rear of the set, remove two screws
E
, two
screws
F
and four screws
G
on the front panel left
and right side.
3. Handle the CD changer unit rear, take out the unit.
Fig.7
Fig.8
F
E
F
Antenna
terminal
G
CD tray panel
CD tray panel
To Next Page
