(Tray switch board)
(Table pos. board)
(Disc count board)
(Pickup switch board)
(Turn table motor board)
(ECHO board) (Main board)

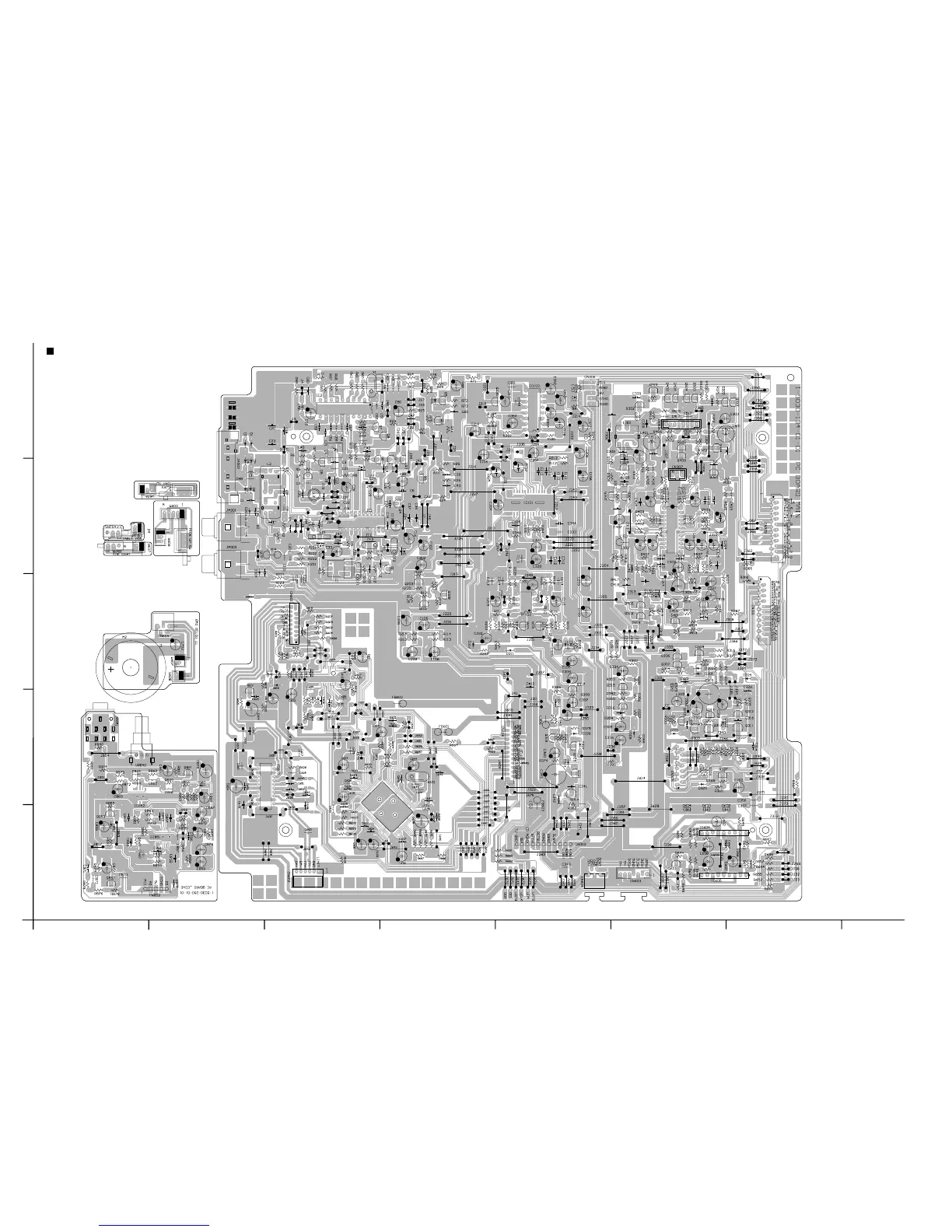

Printed circuit boards
Main board
Note : This is a printed circuit board on a silk screen print.
This method enables the patterns of both surfaces of the printed circuit board to be shown because of the transparency of the silk screen print.
