JVC MX-K35V - Page 44

MX-K35V
2-9
AB CD E F G
1
2
3
4
5
FW151
SW101

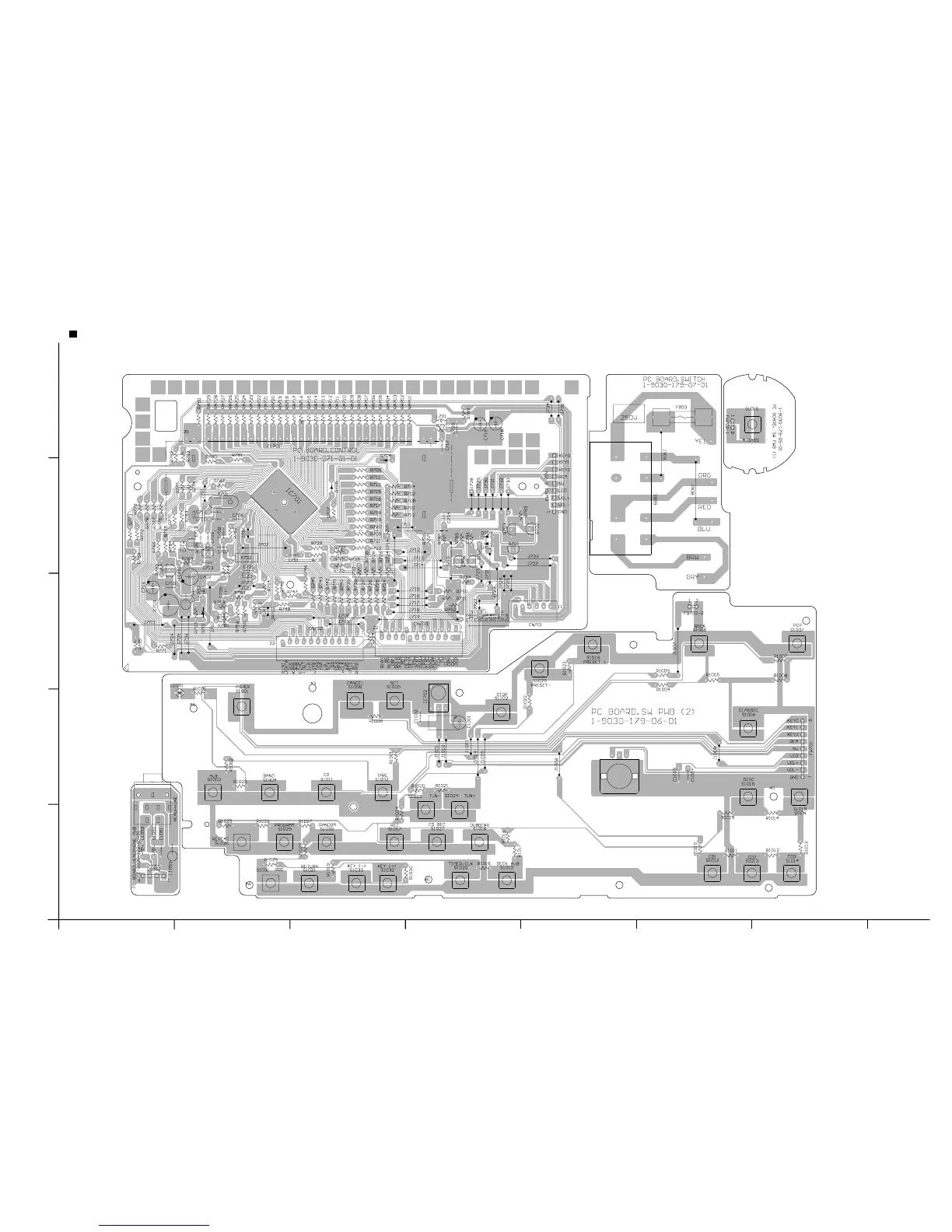

Front board
(Control/FL board)
(Head phone board)
(Switch board)
(Voltage selector board)
(Active bass ex.switch board)
Note : This is a printed circuit board on a silk screen print.
This method enables the patterns of both surfaces of the printed circuit board to be shown because of the transparency of the silk screen print.
