Preparation
8
For NX-F40/NX-F30:
CAUTION
• The left and right speakers can be installed on a
wall.
• When installing the speakers on the wall;
- Be sure to have them installed on the wall by
qualified personnel.
DO NOT install the speakers on the wall by
yourself to avoid unexpected damage from
falling off the wall due to incorrect installation
or weakness in wall structure.
- Care must be taken in selecting a location for
speaker installation on a wall. Injury to
personnel or damage to devices may result if
the installed speakers interfere with daily
activities.
This system is designed to provide virtual surround
sound by positioning the 3 speakers in front. (The
set of the left and right speakers and the
subwoofer refers to 2.1 channel.) The front
surround function processes input signals to
create a realistic sound field.
After connecting a TV, follow the instructions on
page 11.

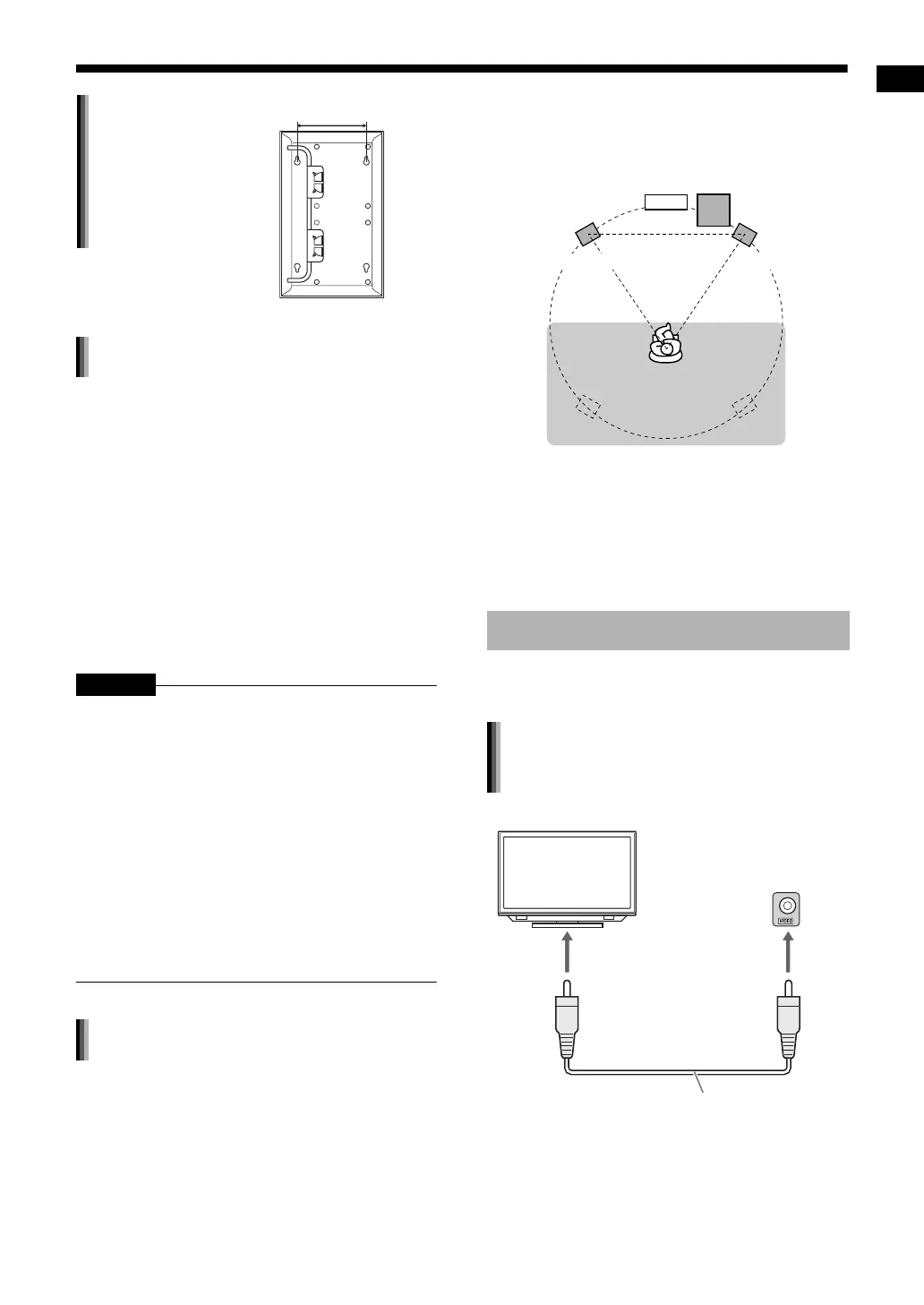

Dimensions of
the wall-mount
attachment for
the speakers
(SP-THFT3F)
124 mm
Speaker layout
Install the speakers on a flat and level surface to
ensure the best sound quality.
• The sound may be affected depending on the
location in which you install them. To improve
the sound, adjust the location and orientation of
the speakers.
• Install the speakers leaving an appropriate
distance between them.
• To obtain the best possible sound from the
System, install all speakers at the same
distance from the listening position.
Speaker layout
Install the speakers on a flat and level surface to
ensure the best sound quality.
• The sound may be affected depending on the
location in which you install them. To improve th
e
sound, adjust the location and orientation of the
speakers.
• Install the speakers leaving an appropriate
distance between them.
Connecting a TV
•
T
o o
bt
a
i
n
th
e
b
es
t
poss
ibl
e soun
d
f
rom
th
e
System, install all speakers at the same
distance from the listening position.
Main unit
Left speaker
Subwoofer
Right speaker
Connecting a TV with the [VIDEO]
terminal
Main unit
(rear view)
TV
To a video input terminal
Composite video cable (supplied)
