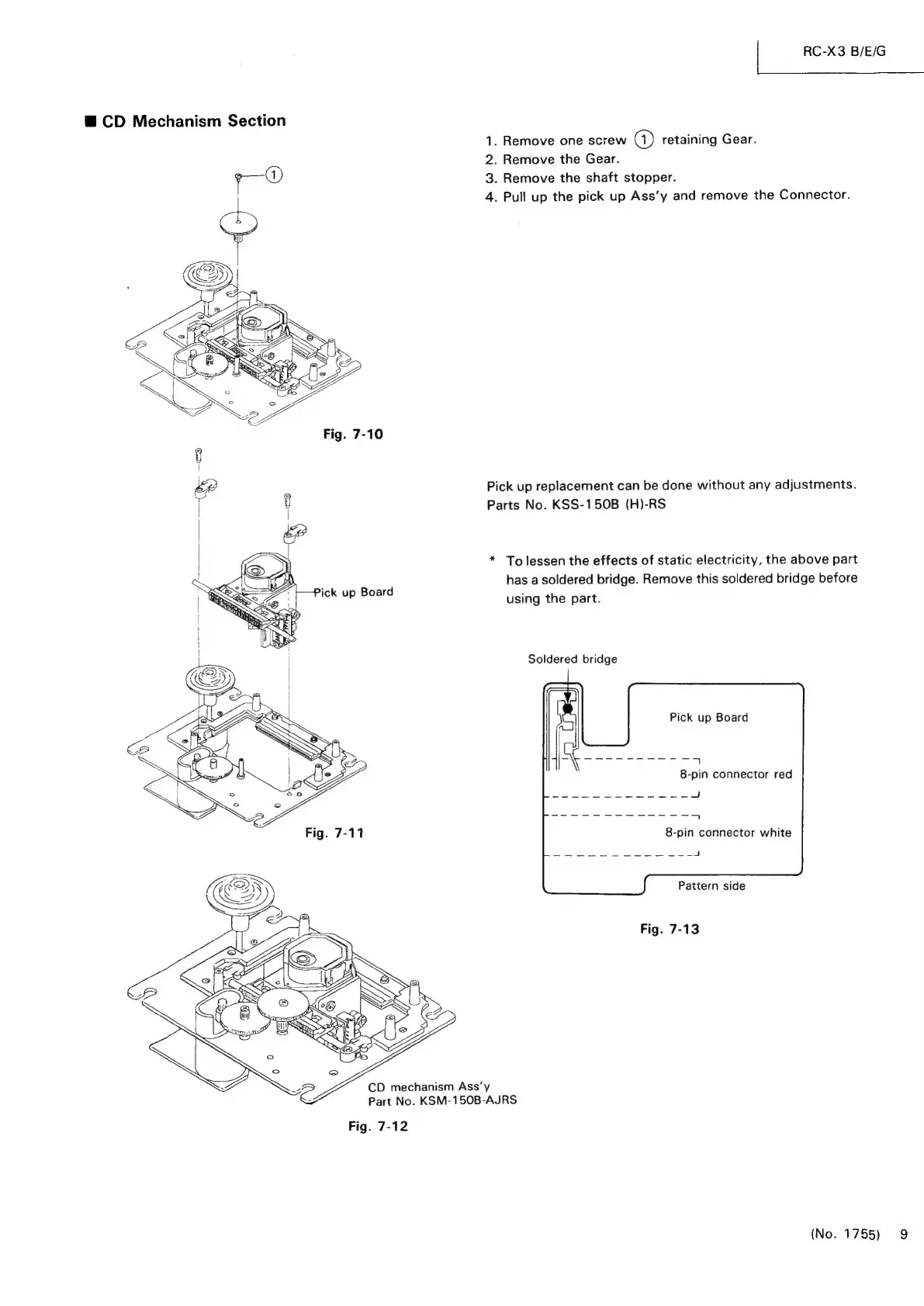

@ CD Mechanism Section
ick up Board
CD mechanism Ass’y
Fig. 7-12
RC-X3 B/E/G
1. Remove one screw Q) retaining Gear.
2. Remove the Gear.
3. Remove the shaft stopper.
4. Pull up the pick up Ass’y and remove the Connector.
Pick up replacement can be done without any adjustments.
Parts No. KSS-150B (H)-RS
* To lessen the effects of static electricity, the above part
has a soldered bridge. Remove this soldered bridge before
using the part.
Soldered bridge
Pick up Board
Pattern side
Fig. 7-13
Part No. KSM-150B-AJRS
(No. 1755)
9
