3
Connections
Connections

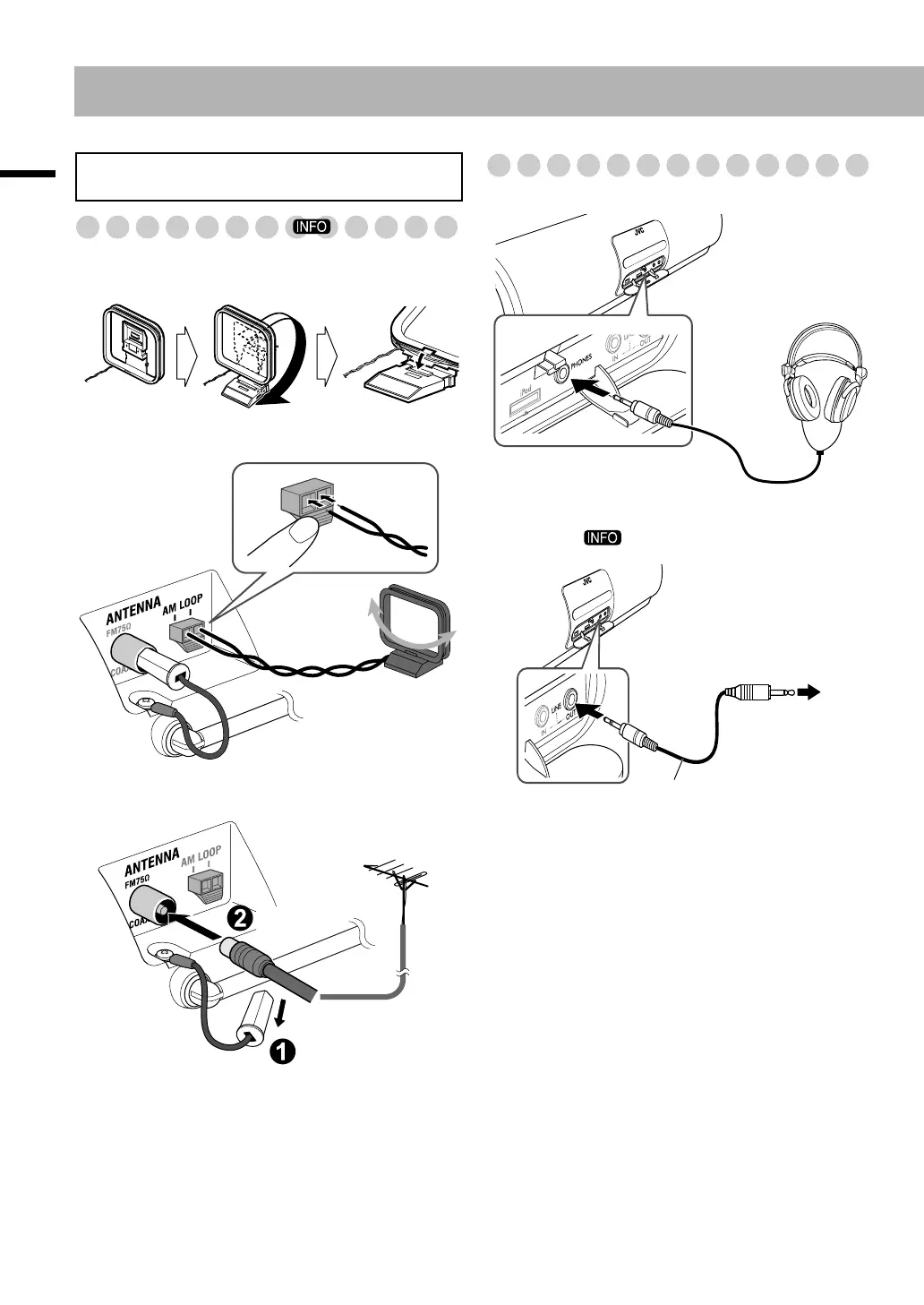

Connecting the antenna
AM/FM antenna
To assemble the AM loop antenna
To connect the AM antenna
For better FM reception
Connect to an outdoor FM antenna using a 75
wire with
coaxial type connector (IEC or DIN45325).
Connecting to the Front Panel Terminals
Headphones
To record the playback sound on an external
component
You cannot record playback sound from the component
connected to the LINE IN jack.
Do not connect the AC power cord until all other
connections have been made.
AM loop antenna
(supplied)
FM outdoor antenna
(not supplied)
Disconnect
Connect
Headphones
(not supplied)
To the external
component
Audio cord with stereo mini plugs
(not supplied)
