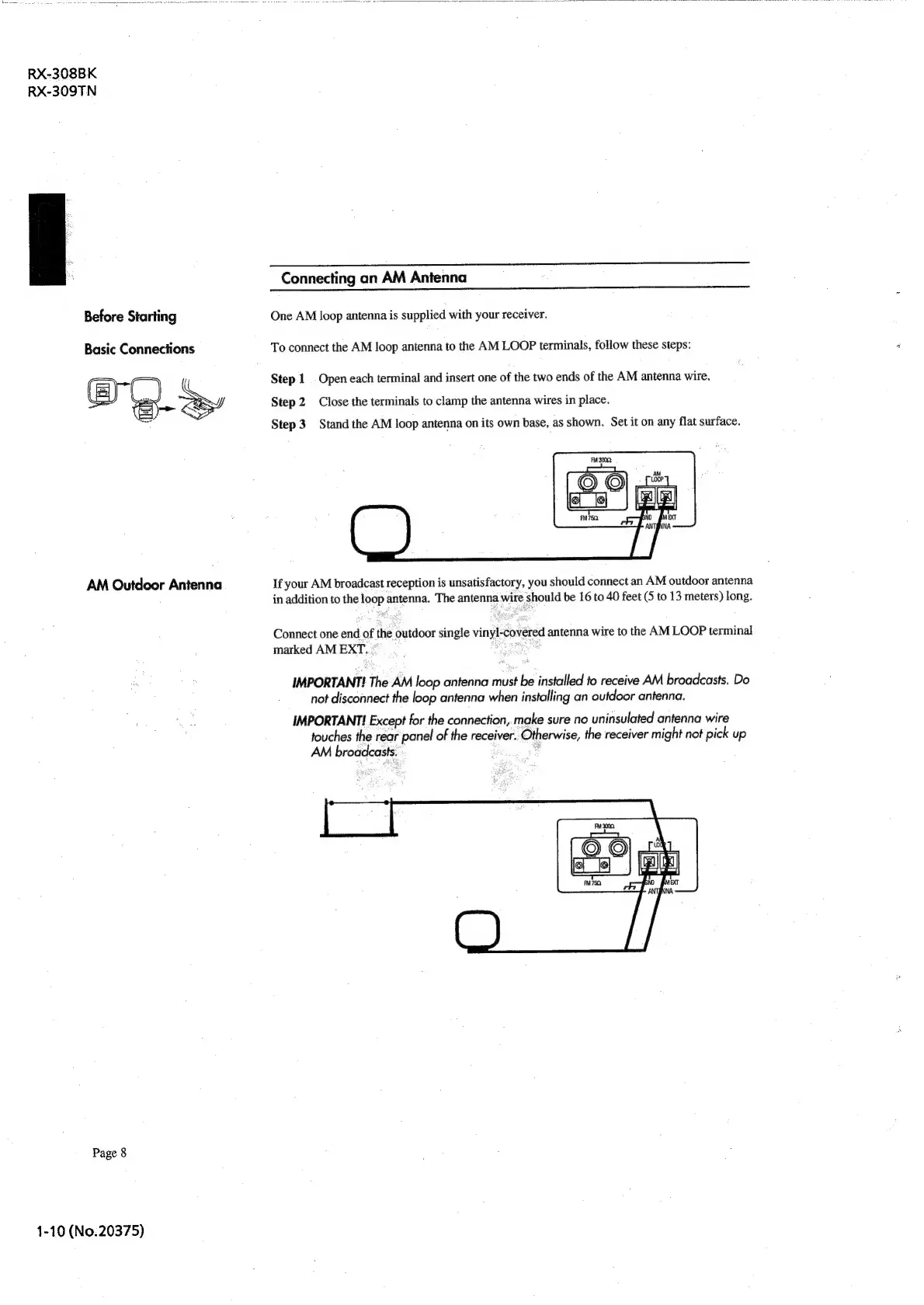

Connecting an AM Antenna
One AM loop antenna is supplied with your receiver.
To
connect
the
AM
loop
antenna
to
the
AM
LOOP
terminals,
follow
these
steps:
Step
1
Open
each
terminal
and
insert
one
of
the
two
ends
of
the
AM
antenna
wire.
Step
2
Close
the
terminals
to
clamp
the antenna
wires
in
place.
Step
3
Stand
the
AM
loop
antenna
on
its
own
base,
as
shown.
Set
it
on
any
flat
surface.
If
your
AM
broadcast
reception
is
unsatisfactory,
you
should
connect
an
AM
outdoor
antenna
in
addition
to
the
loop
antenna.
The
antenna
wire
should
be
16
to
40
feet
(5
to
13
meters)
long.
Connect
one
end
of
the
outdoor
single
vinyl-covered
antenna
wire
to
the
AM
LOOP
terminal
marked
AM
EXT,
*
Po
BPE
IMPORTANT!
The
AM
loop
antenna
must
be
installed
to
receive
AM
broadcasts.
Do
not
disconnect
the
loop
antenna
when
installing
an
outdoor
antenna.
IMPORTANT!
Except
for
the
connection,
make
sure
no
uninsulated
antenna
wire
touches
the
rear
panel
of
the
receiver.
Otherwise,
the
receiver
might
not
pick
up
AM
broadcasts.
"
