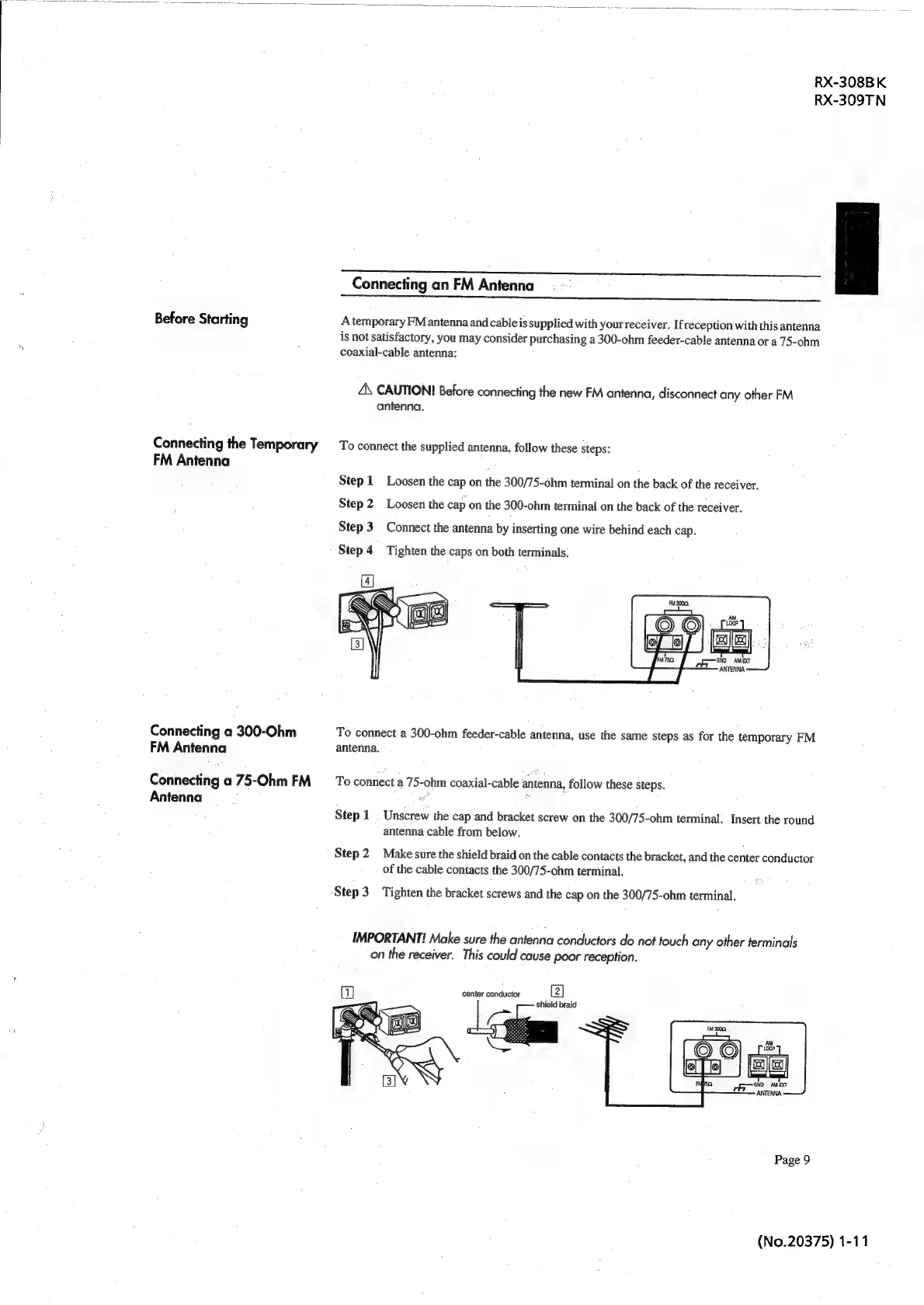

Connecting
an
FM
Antenna.
a
Before
Starting
A
temporary
FMantennaand
cable
is
supplied
with
your
receiver.
Ifreception
with
this
antenna
is
not
satisfactory,
you
may
consider
purchasing
a
300-ohm
feeder-cable
antenna
or
a
75-ohm
coaxial-cable
antenna:
A\
CAUTION!
Before
connecting
the
new
FM
antenna,
disconnect
any
other
FM
antenna.
Connecting
the
Temporary
—_To
connect
the
supplied
antenna,
follow
these
steps:
FM
Antenna
Step
1
Loosen
the
cap
on
the
300/75-ohm
terminal
on
the
back
of
the
receiver.
Step
2
Loosen
the
cap
on
the
300-ohm
terminal
on
the
back
of
the
receiver.
Step
3
Connect
the
antenna
by
inserting
one
wire
behind
each
cap.
Step 4 Tighten the caps on both terminals.
Connecting
a
300-Ohm
To
connect
a
300-ohm
feeder-cable
antenna,
use
the
same
steps
as
for
the
temporary
FM
FM Antenna antenna.
Connecting
a
75-Ohm
FM
To
connect
a
75-ohm
coaxial-cable
antenna,
follow
these
steps.
Antenna
a
"
Step
1
.
Unscrew
the
cap
and
bracket
screw
on
the
300/75-ohm
terminal.
Insert
the
round
antenna
cable
from
below.
Step
2
Make
sure
the
shield
braid
on
the
cable
contacts
the
bracket,
and
the
center
conductor
of
the
cable
contacts
the
300/75-ohm
terminal.
Step
3
Tighten
the
bracket
screws
and
the
cap
on
the
300/75-ohm
terminal.
IMPORTANT!
Make
sure
the
antenna
conductors
do
not
touch
any
other
terminals
on
the
receiver.
This
could
cause
poor
reception.
center conductor
shield braid
Page 9
(No.20375) 1-11
