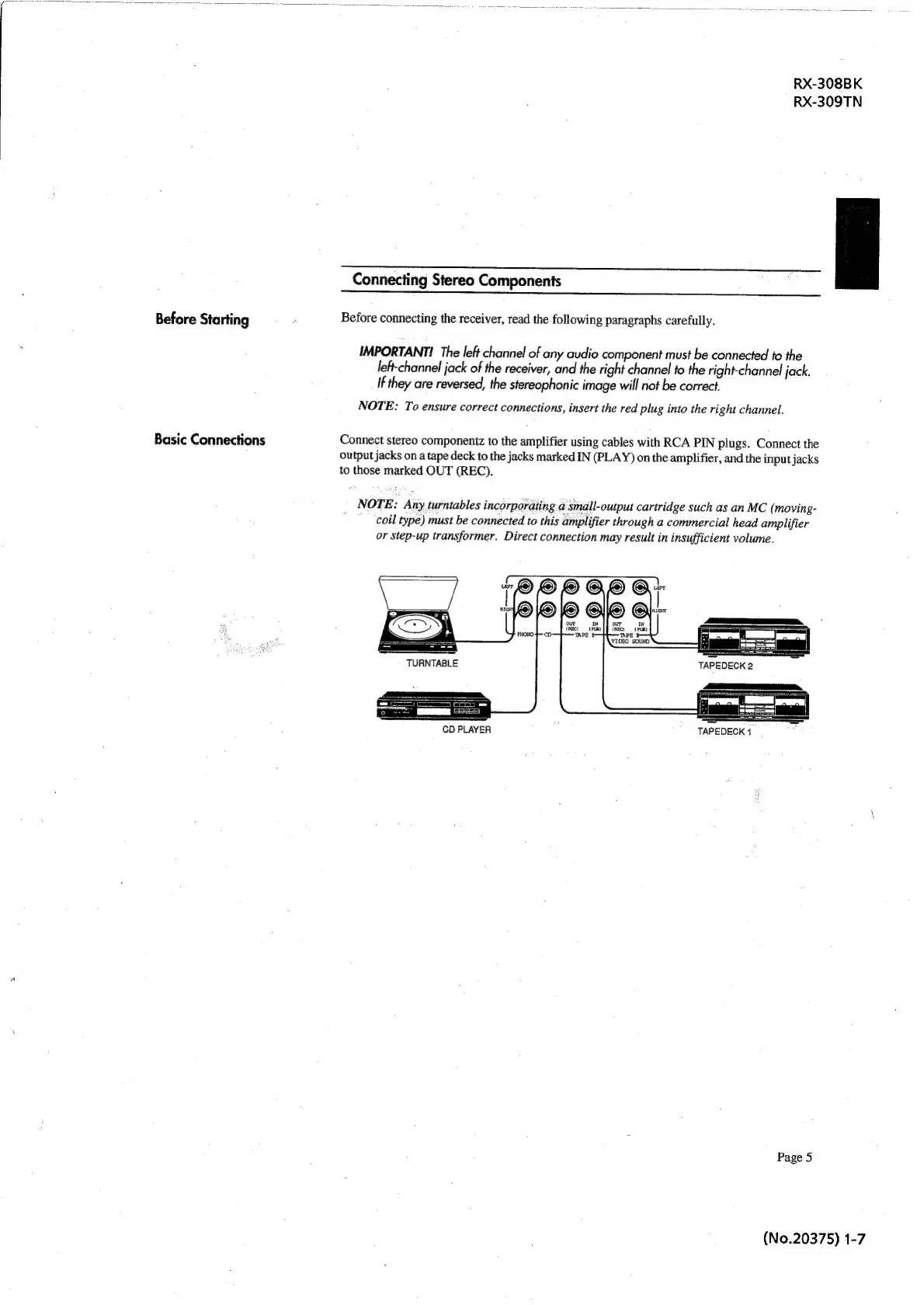

Connecting Stereo Components
Before
Starting
Before
connecting
the
receiver,
read
the
following
paragraphs
carefully.
IMPORTANT!
The
left
channel
of
any
audio
component
must
be
connected
to
the
left-channel
jack
of
the
receiver,
and
the
right
channel
to
the
right-channel
jack.
If
they
are
reversed,
the
stereophonic
will
not
be
correct.
NOTE:
To
ensure
correct
connections,
insert
the
red
plug
into
the
right
channel.
Basic
Connections
Connect
stereo
componentz
to
the
amplifier
using
cables
with
RCA
PIN
plugs.
Connect
the
output
jacks
on
a
tape
deck
to
the
jacks
marked
IN
(PLAY)
on
the
amplifier,
and
the
input
jacks
to
those
marked
OUT
(REC).
NOTE:
Any
turntables
incorporating
a
small-output
cartridge
such
as
an
MC
(moving-
coil
type)
must
be
connected
to
this
amplifier
through
a
commercial
head
amplifier
or
step-up
transformer.
Direct
connection
may
result
in
insufficient
volume.
