Page 36
VCR
IN
(PLAY)
OUT
(REC)
AUDIO
VCR
OUT
(REC)
IN
(PLAY)
MONITOR
OUT
VIDEO
S-VHS

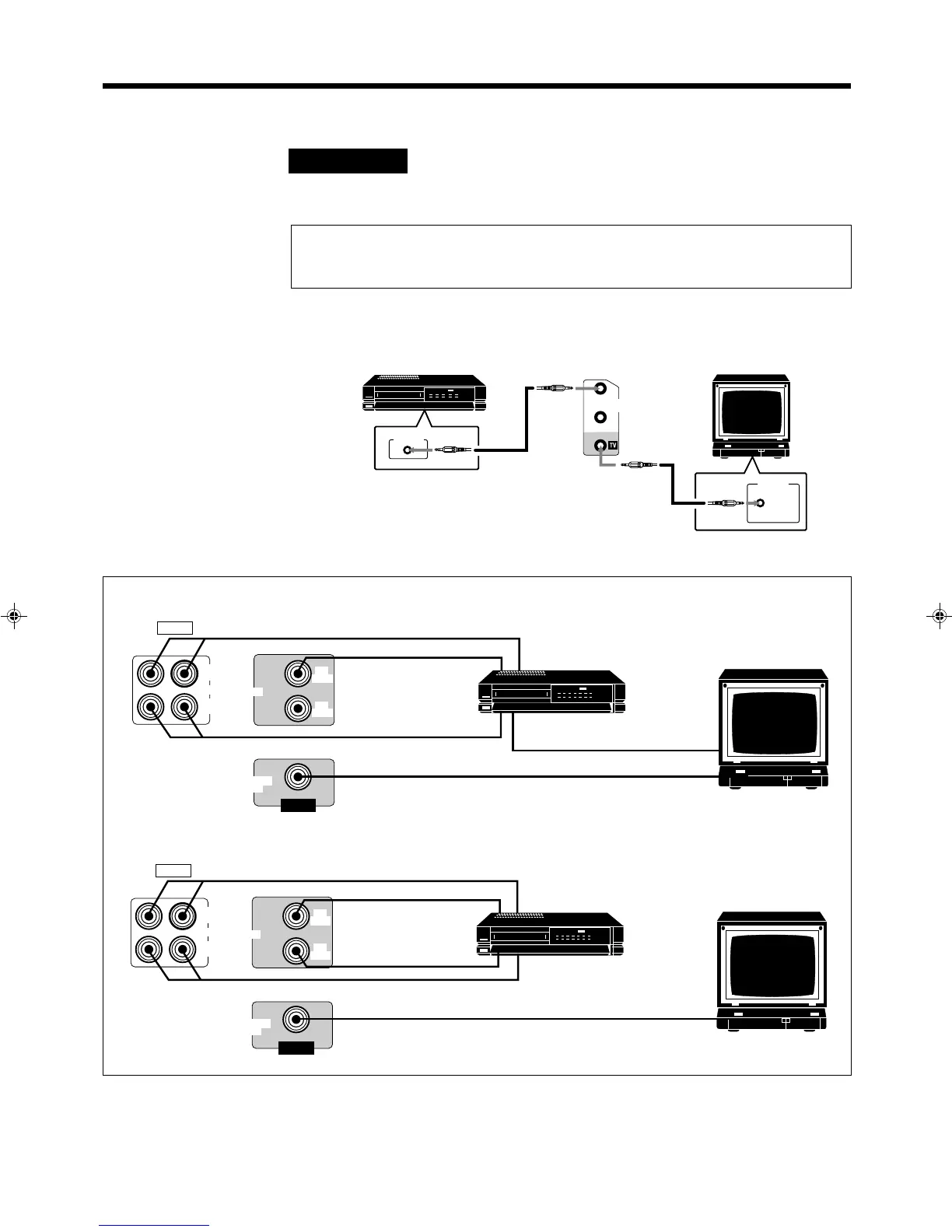

AV COMPU LINK Remote Control System
The AV COMPU LINK remote control system allows you to operate JVC video components (TV and VCR)
through the receiver.
CONNECTIONS:
To use this remote control system, you need to connect the video components you want to operate, following
the procedures below.
CAUTION:
The AV COMPU LINK remote control system cannot control the video components connected
to the VIDEO jacks on the receiver. Use only VCR jacks for the VCR jacks.
1. Connect your VCR and TV as follows, using the cables with the monaural mini-plugs (not
supplied).
2. Connect the VCR and TV as follows.
VCR
TV
• When using an S-VHS VCR, connect it as follows: See also page 9.
3. When turning on the TV for the first time after the AV COMPU LINK connection, turn the TV
volume to the minimum using the TV volume control on the TV.
S-VHS VCR
TV
To video input 1 S-video jack
(using S-video cable)
To video input 2 jack (using video cable)
DO NOT connect the
VCR IN (PLAY) jack.
• When using a VHS VCR, connect it as follows: See also page 9.
VHS VCR
TV
To video input 2 jack (using video cable)
VCR
IN
(PLAY)
OUT
(REC)
AUDIO
VCR
OUT
(REC)
IN
(PLAY)
MONITOR
OUT
VIDEO
VHS
AV
COMPU LINK
RECEIVER/
AMP
VHS
AV
COMPU LINK
AV
COMPU LINK
RX-772VBK[J]_0052-001A.En.31-37 97.4.8, 3:27 PM36
