Placing speakers
Front speakers and center speaker
• Place these speakers (position of the mid-range speaker units) at the same
height from the floor.
• Point these speakers aiming at the listener’s ears.
Surround and surround back speakers
• Place these speakers at a position which is 1 meter higher than the listener’s
ears.
• Point these speakers down aiming at the listener’s ears.
Subwoofer
• You can place it wherever you like since bass sound is non-directional.
Normally place it in front of you.
Note:
Ideal speaker layout requires that all speakers be placed at the same distance
from the listener. However, since in some places it may be difficult to fulfil this
requirement, this unit can adjust the delay time so that the sounds through all the
speakers reach the listener with the same timing. (See page 26.)
Subwoofer
IMPORTANT:
After connecting the speakers, set the speaker installation
information properly. You can use Quick Speaker Setup for
easy speaker installation information setting (see page 23).
• To obtain the best possible Surround/DSP effect, see “Setting
the Speakers” on page 25.

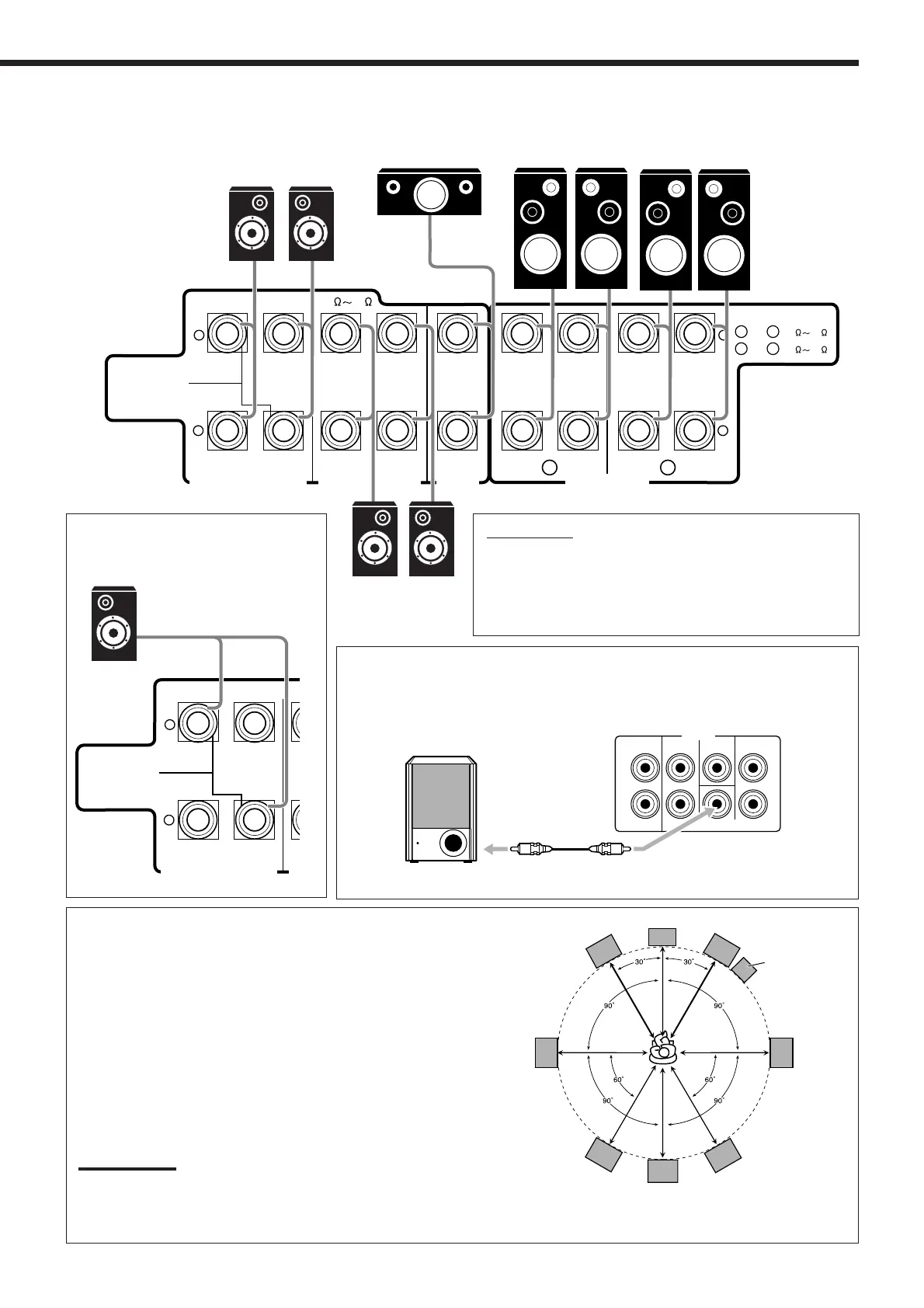

Front speakers 1
Right / Left
Surround back speakers*
Right / Left
Front speakers 2
Right / Left
Center speaker
* When using only one
surround back speaker,
connect the ª cord to the
RIGHT ª terminal and the
· cord to the LEFT ·
terminal.
Surround speakers
Right / Left
Connecting the subwoofer speaker
You can enhance the bass by connecting a subwoofer.
Connect the input jack of a powered subwoofer to the rear panel, using a cable with RCA
pin plugs (not supplied).
RIGHT
LEFT
+
–
SU
8
CAUTION : SPEAKER IMPEDANCE
SURROUND BACK SPEAKERS
SINGLE USE
See Instruction
Manual For
Connection
C
LR
LS RS
LSB
RSB
SB*
* When one surround back speaker is
connected.
RIGHT
LEFT
+
–
+
–
CENTER
SPEAKER
SURROUNDSPEAKERS
816
CAUTION : SPEAKER IMPEDANCE
SURROUND BACK SPEAKERS
FRONT SPEAKERS
RIGHT
LEFT
RIGHT
LEFT
RIGHT
LEFT
CAUTION : SPEAKER IMPEDANCE
SINGLE USE
See Instruction
Manual For
Connection
1
OR 2 : 8
16
1 AND 2 : 16
32
1
2
L
R
L
R
SURR BACK
SURR CENTER
FRONT
SUBWOOFER
PREOUT
