Parts Identification
1 Display window
• When the remote operation mode changes, it is shown on
this display.
• Signal transmission indicator (A) lights up when
transmitting signals.
2
buttons (15, 44 – 46)
CATV/DBS
, VCR 1 , TV , AUDIO
3 Source selection buttons (15, 16, 17, 21, 22, 35, 38)
DVD MULTI, DVD, CD*, FM/AM*, VCR 1, VCR 2,
CDR*, TAPE/MD*, TV/DBS, VIDEO, PHONO*
* When you press one on these source selection buttons on the
remote control, the receiver automatically turns on.
4 • SURROUND button (35)
• DSP button (37)
• SURR (surround)/DSP OFF button (35, 37)
• EX/ES button (35)
5 CC CONVERTER button (19)
6 MIDNIGHT MODE button (18)
7 SOUND button (20, 30, 31)
8 CATV/DBS CONTROL button (45)
9 TV/VIDEO button (44, 45)
p CONTROL button (42 – 44)
q REC PAUSE button (43, 44, 46)
w SLEEP button (20)
e ANALOG/DIGITAL INPUT button (18)
r ANALOG DIRECT button (19)
t • 10 keys for operating the tuner (22)
• 10 keys for adjusting sound (30, 31)
• 10 keys for operating audio/video components (42 – 46)
y • CH (channel) +/– buttons (44 – 46)
• *LEVEL +/– buttons (30, 31, 42)
The LEVEL +/– buttons function only after pressing SOUND
then 10 keys which are marked with an asterisk (*) on the
remote control.
u VOLUME +/– buttons (16)
i TV VOL (volume) +/– buttons (44, 45)
o MUTING button (20)
; • TUNING UP/DOWN buttons (21)
• Operating buttons for audio/video components (42 – 44, 46)
3, 8, 7, 4/REW, FF/¢
a DIMMER button (20)

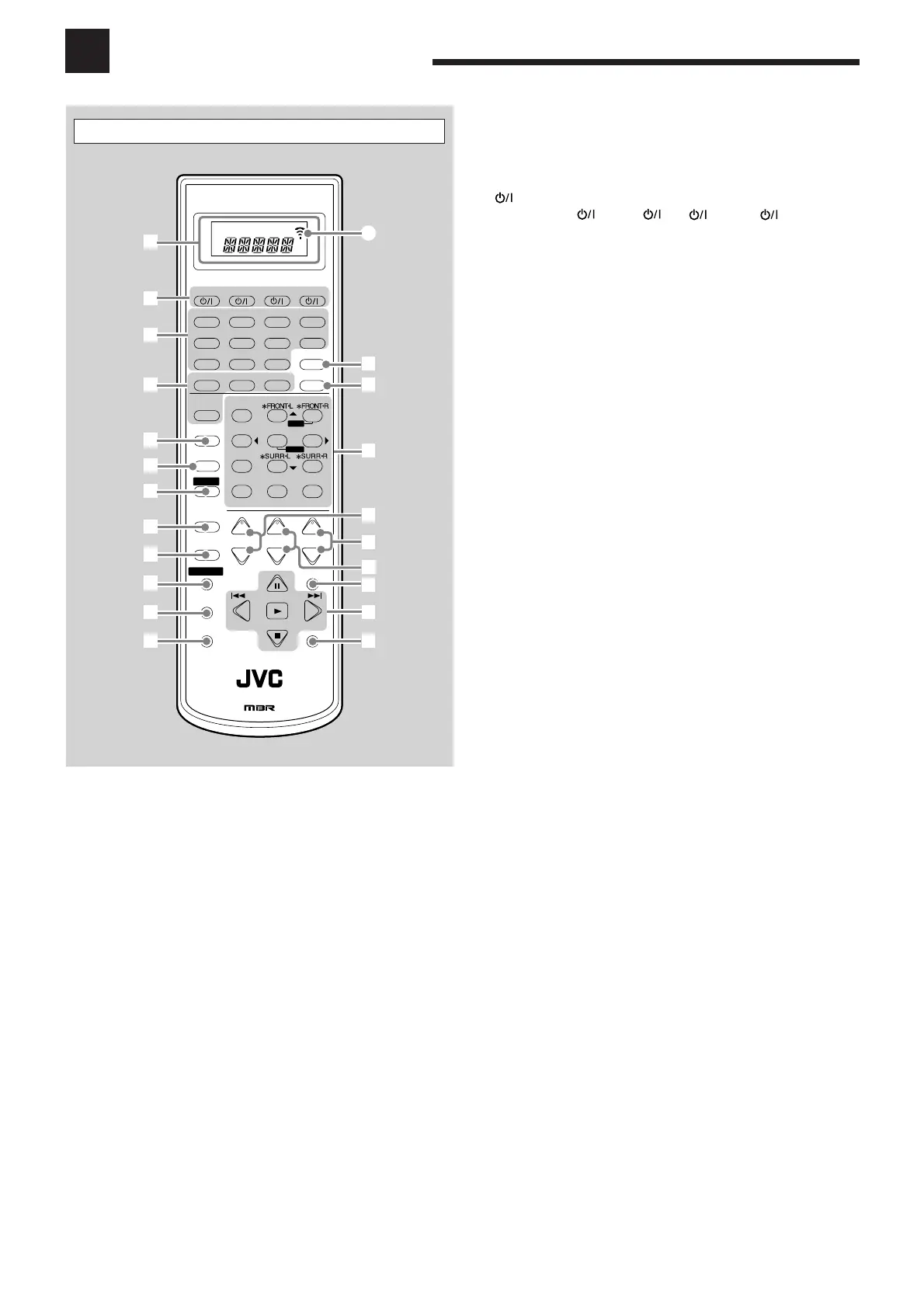

Remote Control
+
−
+
−
+
−
