JVC RX-8030VBK Instructions

6

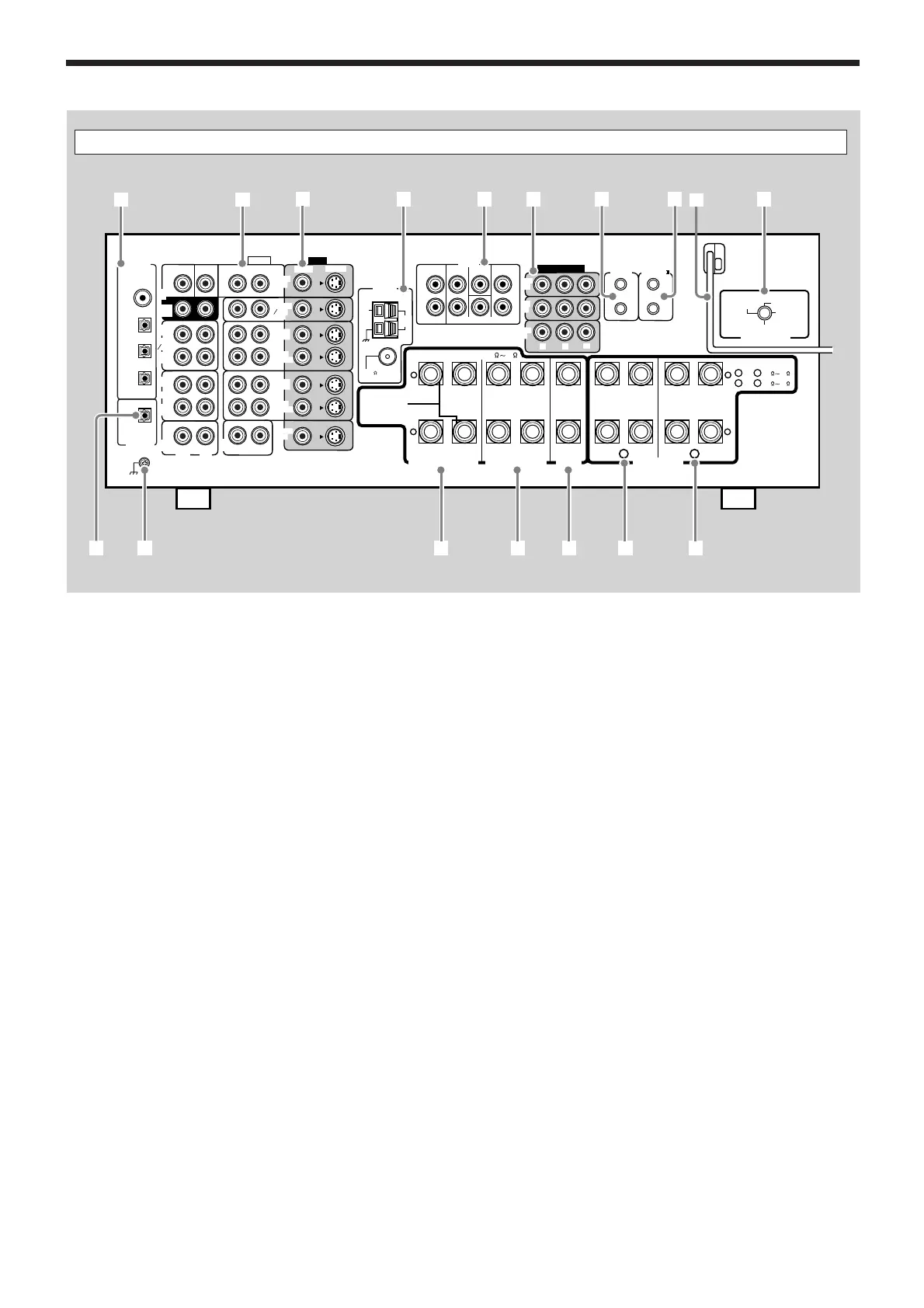

Rear Panel
Rear Panel
1 DIGITAL IN terminals (14)
• Coaxial: DIGITAL 1 (DVD)
• Optical: DIGITAL 2 (CD), DIGITAL 3 (TV),
DIGITAL 4 (CDR)
2 AUDIO input/output jacks (10 – 13)
• Input: DVD IN—FRONT, CENTER, SUBWOOFER,
SURR (REAR), TV SOUND/DBS IN,
VCR 1 IN (PLAY), VCR 2 IN (PLAY), CD IN,
TAPE/MD IN (PLAY), CDR IN (PLAY),
PHONO IN
• Output: VCR 1 OUT (REC), VCR 2 OUT (REC),
TAPE/MD OUT (REC), CDR OUT (REC)
3 S-VIDEO and composite VIDEO input/output jacks (12, 13)
• Input: DVD IN, TV SOUND/DBS IN, VCR 1 IN
(PLAY), VCR 2 IN (PLAY)
• Output: VCR 1 OUT (REC), VCR 2 OUT (REC),
MONITOR OUT
4 FM/AM ANTENNA terminals (8)
5 PREOUT jacks (9, 10)
FRONT, CENTER, SUBWOOFER, SURR, SURR BACK
6 COMPONENT VIDEO input/output jacks (12, 13)
• Input: DVD IN, DBS IN
• Output: MONITOR OUT
7 COMPU LINK-4 (SYNCHRO) terminals (39)
8 AV COMPULINK-III terminals (40)
9 AC power cord (14)
p VOLTAGE SELECTOR switch (7)
q DIGITAL OUT terminal (14)
w Earth (ground) terminal (10)
e SURROUND BACK SPEAKERS terminals (9)
r SURROUND SPEAKERS terminals (9)
t CENTER SPEAKER terminals (9)
y FRONT SPEAKERS 1 terminals (9)
u FRONT SPEAKERS 2 terminals (9)
110V
127V
230-240V
220V
VOLTAGE SELECTOR
VIDEO
RIGHT LEFT
L
R
L
R
S-VIDEO
VIDEO
SURR BACK
SURR CENTER
FRONT
AUDIO
DIGITAL IN
DIGITAL 1 (DVD)
DIGITAL 2 (CD)
DIGITAL 3 (TV)
DIGITAL 4 (CDR)
PCM/ DOLBY DIGITAL
/ DTS
DIGITAL OUT
FM 75
COAXIAL
AM
EXT
AM
LOOP
RIGHT
LEFT
+
–
+
–
12
CENTER
SPEAKER
SURROUND SPEAKERS
816
CAUTION : SPEAKER IMPEDANCE
MONITOR
OUT
SUBWOOFER CENTER
DVD
IN
OUT
(REC)
TAPE
MD
IN
(PLAY)
OUT
(REC)
CDR
IN
(PLAY)
PHONO
IN
FRONT
TV SOUND
DBS
IN
VCR 2
VCR 1
IN
(PLAY)
IN
(PLAY)
OUT
(REC)
OUT
(REC)
CD
IN
RIGHT LEFT
DVD
IN
ANTENNA
SUBWOOFER
COMPONENT VIDEO
MONITOR
OUT
DBS
IN
DVD
IN
Y
PB
PR
COMPU LINK-4
(SYNCHRO)
AV
COMPULINK-
SURROUND BACK SPEAKERS
FRONT SPEAKERS
RIGHT
LEFT
RIGHT
LEFT
RIGHT
LEFT
CAUTION : SPEAKER IMPEDANCE
SINGLE USE
See Instruction
Manual For
Connection
1
OR 2 : 8
16
1 AND 2 : 16
32
PREOUT
SURR
(REAR)
12
34567
9
8p
uytre
q
w
01_14_8030[UJ]f.p65 03.6.17, 8:21 PM6
