Front Panel
1 STANDBY/ON button and STANDBY lamp (15)
2 • SPEAKERS ON/OFF 1 button (17)
• SPEAKERS ON/OFF 2 button (17)
3 • SURROUND button (35)
• DSP button (37)
• SURROUND/DSP OFF button (35, 37)
4 Remote sensor
5 Display window (15)
6 Source selection buttons and lamps
(15, 16, 17, 19, 21, 22, 35, 38)
DVD MULTI, DVD, VCR 1, VCR 2, VIDEO,
TV SOUND/DBS, PHONO, CD, CDR, TAPE/MD, FM, AM
(The lamp above the button for selected source lights up.)
7 MASTER VOLUME control (16)
8 CC CONVERTER button and lamp (19)
9 SUBWOOFER OUT ON/OFF button (17)
p PHONES jack (17)
q EX/ES button (35)

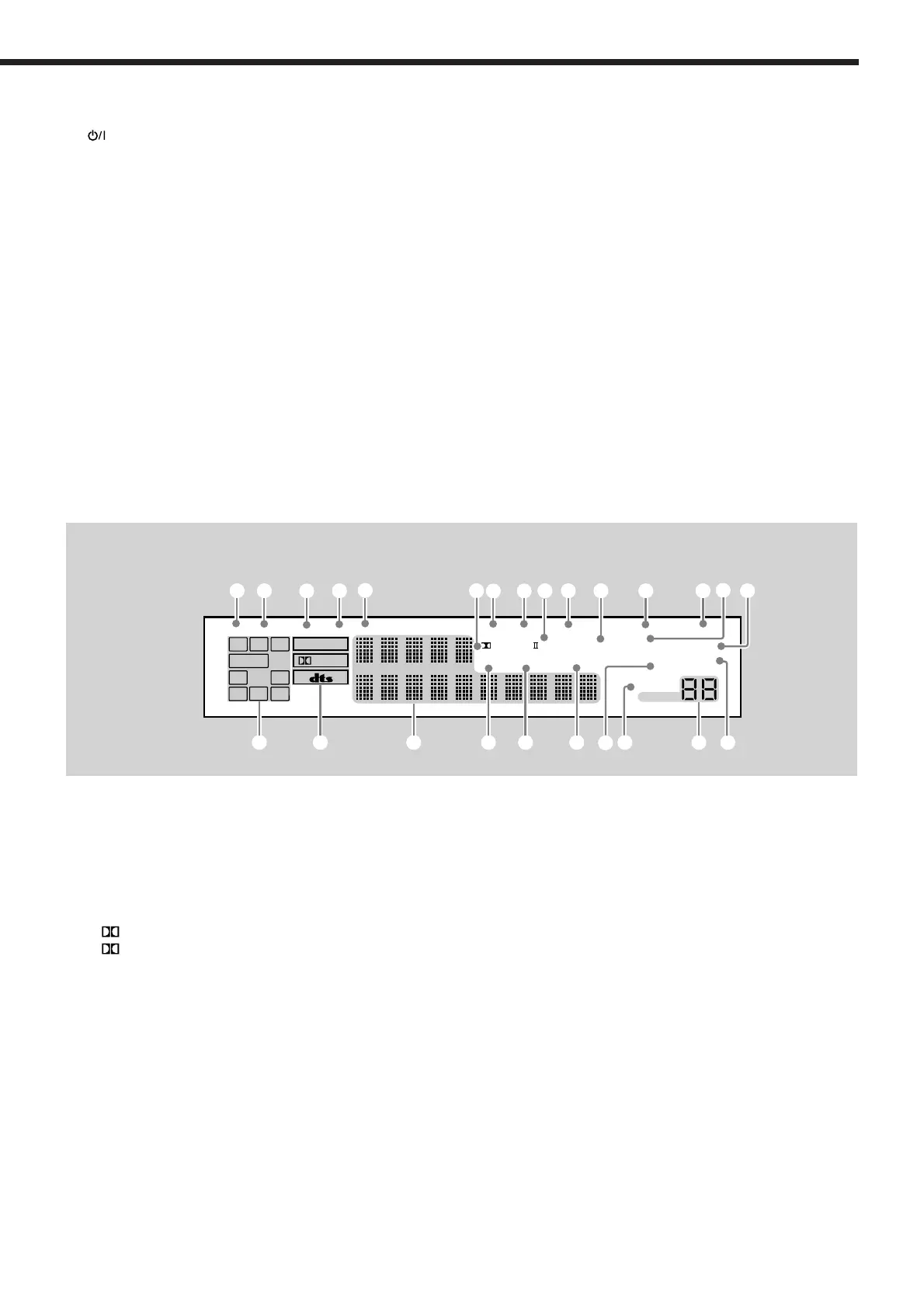

Display Window
1 DUAL indicator (33)
2 ANALOG indicator (18)
3 DIGITAL AUTO indicator (18)
4 96/24 indicator (33)
5 MULTI indicator (38)
6 •
PRO LOGIC indicator (32)
• PRO LOGIC II indicator (33)
7 TUNED indicator (21)
8 STEREO indicator (21, 22)
9 NEO:6 indicator (33)
0 AUTO MUTING indicator (22)
w • INPUT ANALOG button (18)
• INPUT ATT button (18)
e MIDNIGHT MODE button (18)
r INPUT DIGITAL button (18)
t TUNER CONTROL buttons
• FM/AM TUNING 5 / ∞ buttons (21)
• FM/AM PRESET 5 / ∞ buttons (21, 22)
• FM MODE button (22)
• MEMORY button (21)
y VIDEO input jacks (11)
DIGITAL optical terminal, S-VIDEO jack, VIDEO jack,
AUDIO—L/R jacks
u SETTING button (25)
i QUICK SPEAKER SETUP button (23)
o • MULTI JOG control (23, 25, 29)
• PUSH SET button (23, 25, 29)
; EXIT button (25, 29)
a ADJUST button (29)
s ANALOG DIRECT button and lamp (19)
- VIRTUAL SB (Surround Back) indicator (32, 33)
= ONE TOUCH OPERATION indicator (28)
~ SLEEP indicator (20)
! MIDNIGHT MODE indicator (18)
@ DIGITAL EQ (equalization) indicator (30)
# Speaker and signal indicators (16)
$ Digital signal format indicators (18)
% Main Display (15)
^ DSP indicator (17, 36)
& 3D-PHONIC indicator (36)
* HEADPHONE indicator (17, 36)
( SPEAKERS 1/2 indicators (17)
) INPUT ATT (attenuator) indicator (18)
_ VOLUME level indicator (15, 20)
+ BASS BOOST indicator (20)
Display Window
DIGITAL EQ
INPUT ATT
SLEEP
VOLUME
ONE TOUCH OPERATION
3D - PHONIC
NEO:6
VIRTUAL SB
MIDNIGHT MODE
AUTO MUTING
TUNED STEREO
LINEAR PCM
DIGITAL
L
SUBWFR
LS RS
CR
S
LFE
DUAL DIGITAL
AUTO
ANALOG 96/24 MULTI
PRO LOGIC
DSP
HEADPHONE SPEAKERS 1 2
BASS BOOST
SB
# $ %
_
1 2
3
4
5
6
7 8 0
9
-
= ~
+
^ & *
@
!
(
)
