Using the DVD MULTI Playback Mode
This receiver provides the DVD MULTI playback mode for reproducing the analog discrete output mode of the DVD
player.
Activating the DVD MULTI Playback Mode
1. Press DVD MULTI so that “DVD MULTI”
appears on the display.
The MULTI indicator also lights up.
Note:
When you select “DVD MULTI” as the source to play, the Surround
and DSP modes are canceled, and the SURROUND and DSP
buttons do not work.
2. Select the analog discrete output mode on the
DVD player, and start playing a DVD.
• Refer also to the manual supplied with the DVD player.
You can adjust Digital Equalization patterns and speaker output
levels. See page 30 for details.
Notes:
• Midnight Mode is not available for DVD MULTI playback mode (see
page 18).
• When using a headphones, you can listen to the front channels (left
and right) only.

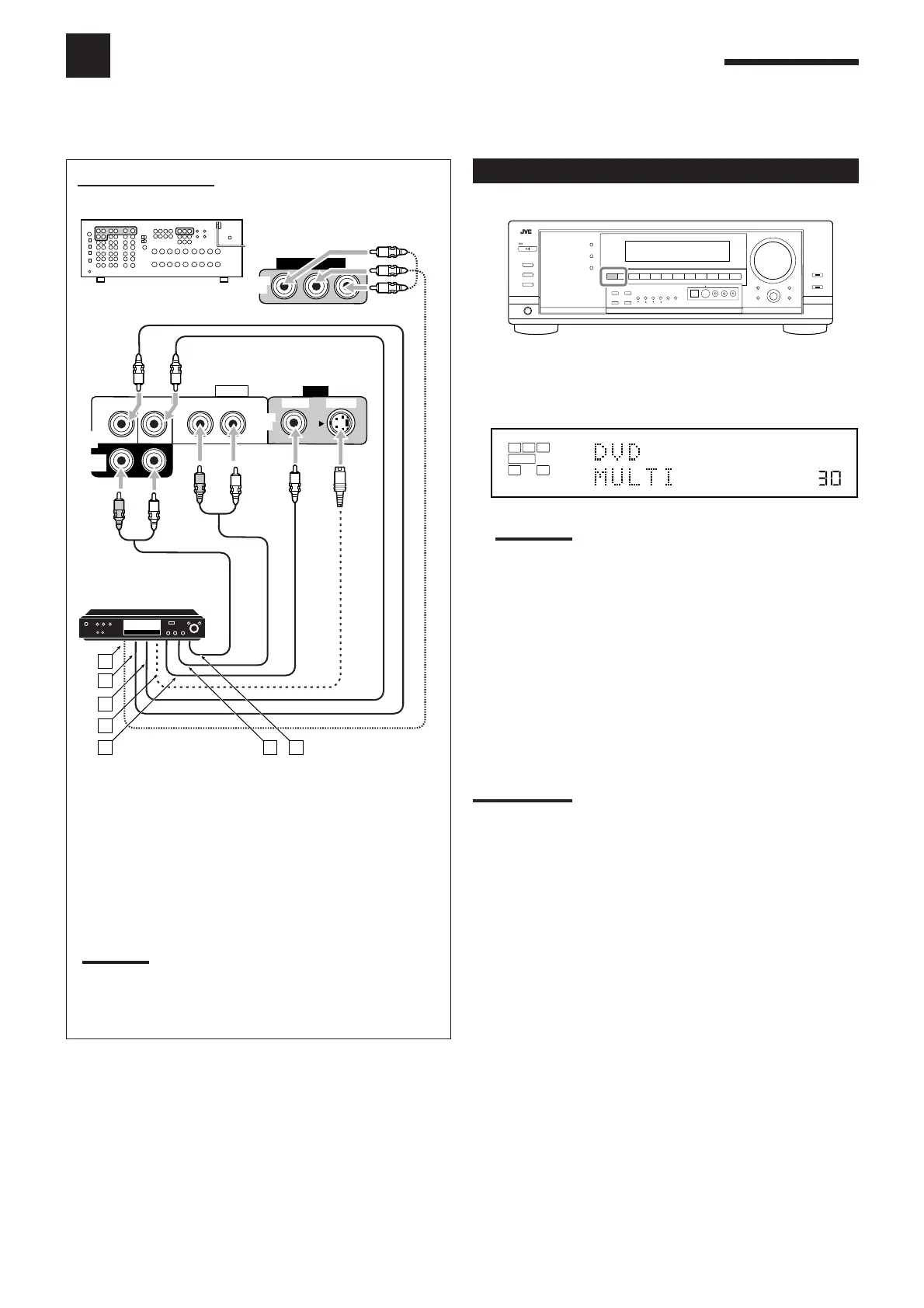

Connection diagram
Å To component video output
ı To subwoofer output
Ç To center channel audio output
Î To S-video output
‰ To composite video output
Ï To left/right front channel audio output
Ì To left/right surround channel audio output
Note:
When connecting a DVD player to the component video input
jacks, make the component video input setting correctly. See
page 28 for details.
VOLUME
LINEAR PCM
L
SUBWFR
LS RS
CR
LFE
ANALOG MULTI
SPEAKERS 1
DVD player
DVD
VIDEO
RIGHT LEFT
S-VIDEO
VIDEO
AUDIO
SUBWOOFER CENTER
DVD
IN
FRONT
DVD
IN
COMPONENT VIDEO
DVD
IN
SURR
(REAR)
R
L
R
L
A
B
C
D
E F G
RX-8030V AUDIO/VIDEO CONTROL RECEIVER
