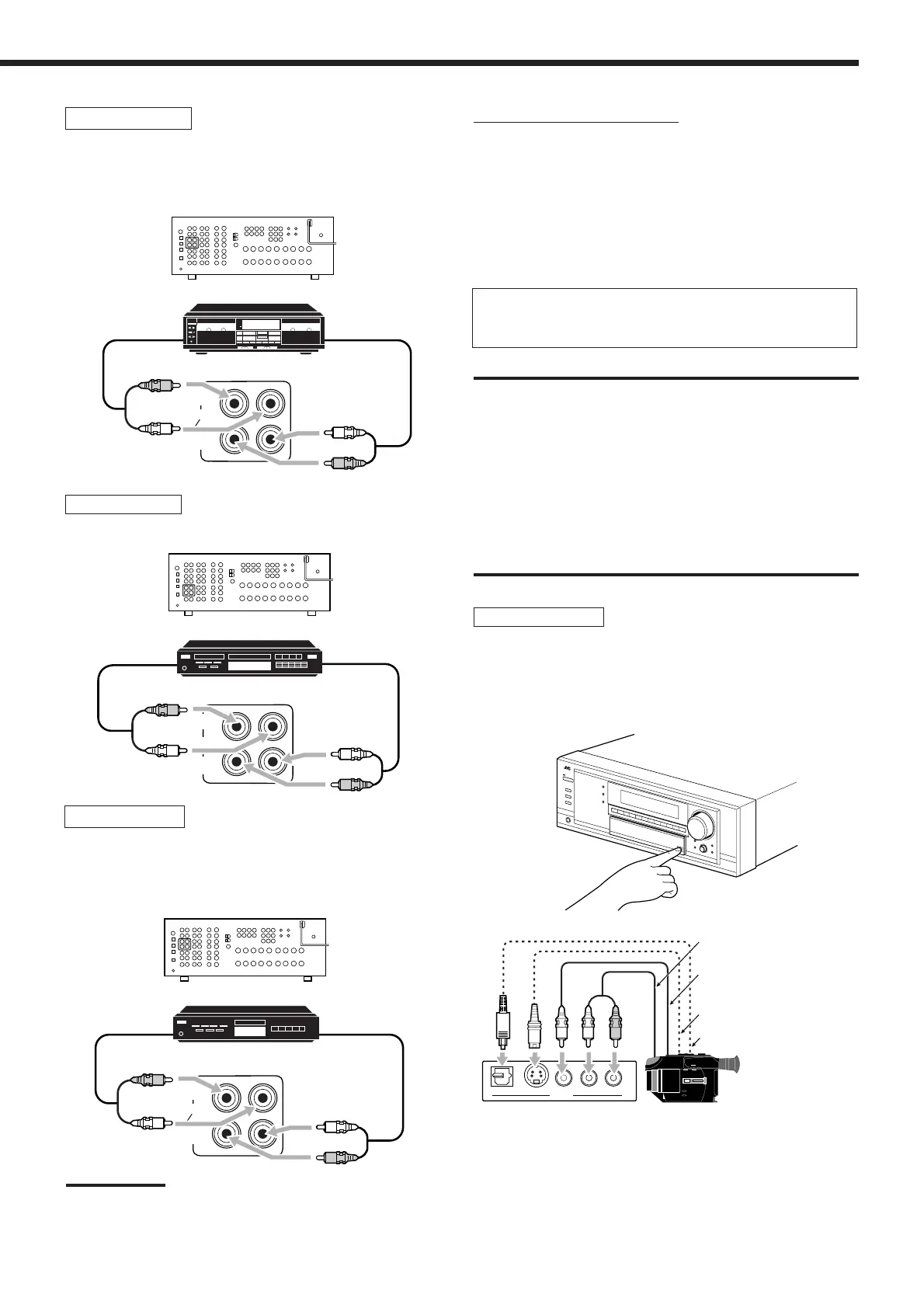

11
MD recorder
To listen to the sound after connection, press TAPE/MD.
You can connect either an MD recorder or a cassette deck to the
TAPE/MD jacks. When connecting a cassette deck, see above.
Note:
When connecting an MD recorder to the TAPE/MD jacks, change the
source name to “MD,” which will be shown on the display when it is
selected as the source. See page 19 for details.
Cassette deck
To listen to the sound after connection, press TAPE/MD.
You can connect either a cassette deck or an MD recorder to the
TAPE/MD jacks. When connecting an MD recorder, see below.
CD recorder
To listen to the sound after connection, press CDR.
OUT
(REC)
TAPE
MD
IN
(PLAY)
R
L
R
L
OUT
(REC)
TAPE
MD
IN
(PLAY)
R
L
R
L
To audio outputTo audio input
Cassette deck
To audio output
To audio input
CD recorder
To audio output
To audio input
MD recorder
Video component connections
Use the cables with RCA pin plugs (not supplied).
Connect the white plug to the audio left jack, the red plug to the
audio right jack, and the yellow plug to the video jack.
• If your video components have S-video (Y/C-separation) and/or
component video (Y, P
B, PR) terminals, connect them using an S-
video cable (not supplied) and/or component video cable (not
supplied). By using these jacks, you can get better picture quality
in the order—Component video > S-video > Composite video.
If your video components have an AV COMPULINK jack
See also page 40 for detailed information about the connection
and the AV COMPU LINK remote control system.
IMPORTANT:
This receiver is equipped with the following video jacks—composite
video, S-video and component video jacks. You can use any of the
three to connect a video component.
However, the video signals from one type of these input jacks are
transmitted only through the video output jacks of the same
type.
Therefore, if a recording video component and a playing video
component are connected to the receiver through the video jacks of
different type, you cannot record the picture. In addition, if the TV and
a playing video component are connected to the receiver through the
video jacks of different type, you cannot view the playback picture on
the TV.
Video camera
To listen to the sound after connection, press VIDEO.
The VIDEO input jacks on the front panel (inside the front door) are
convenient when connecting and disconnecting the component
frequently.
S-VIDEODIGITAL
VIDEO L—AUDIO—R
VIDEO
R
L
To composite video
output
To S-video output
To optical digital output
To audio output
Video camera
When using the digital input terminal
Select the digital input mode correctly.
For details, see “Selecting the Analog or Digital Input Mode” on
page 17.
01_14_8030[UJ]f.p65 03.6.17, 8:21 PM11
