Prior to performing the following procedure, remove
the top cover and the front panel.
Remove the one nut attaching the headphone jack of
the power supply board on the front side of the body.
Disconnect the card wire from connector CN402 on
the power supply board.
Remove the three screws O attaching the power
supply board and pull out the power supply board
from the front bracket backward.
Unsolder the three harnesses connected to the
power supply board.
1.
2.
3.
4.
Removing the power supply board
(See Fig.19 to 20)
Prior to performing the following procedure, remove
the top cover and the rear panel.
Remove the screw N attaching the power / fuse
board.
Unsolder the power cord and other harnesses
connected to the power / fuse board.
1.
2.
Removing the power / fuse board
(See Fig.18)
Prior to performing the following procedures, remove
the top cover.
Unsolder the two harnesses connected to the power
transformer.
Disconnect the harness from connector CN55 and
CN56 on the power transformer board.
Remove the four screws M attaching the power
transformer.
1.
2.
3.
Removing the power transformer
(See Fig.18)

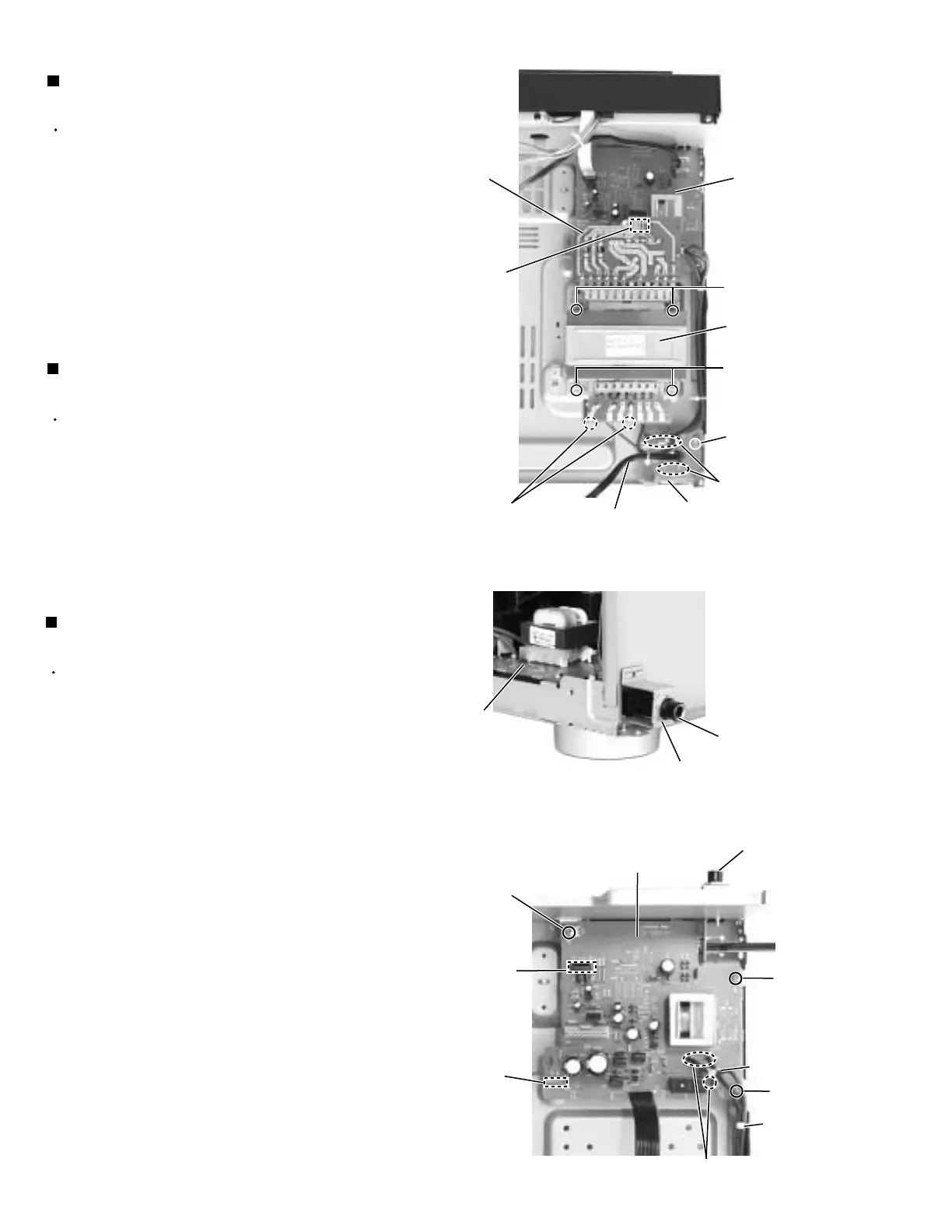

Fig.19
Fig.20
Power
supply
board
Nut
Headphone jack
Headphone jack
Tie band
O
O
O
Solder
Hook
Tie band
Power supply
board
CN402
Fig.18
Power
supply
board
CN55 / 56
Power
transformer
M
Solder
M
Solder
N
Power / fuse board
Power cord
Power
transformer
board
