1-10 (No.22008)
3.1.9 Removing the audio signal 1 board
(See Fig.8)
• Prior to performing the following procedure, remove the top
cover, rear panel and DSP board.
(1) Disconnect the harness from the connector CN202,
CN204
, CN234, CN224, CN208, CN207, CN218 and
CN223
on the audio signal 1 board.
(2) Remove the plastic rivet.
(3) Disconnect the connector CN205
, CN221 and CN206 on
the audio signal 1 board.

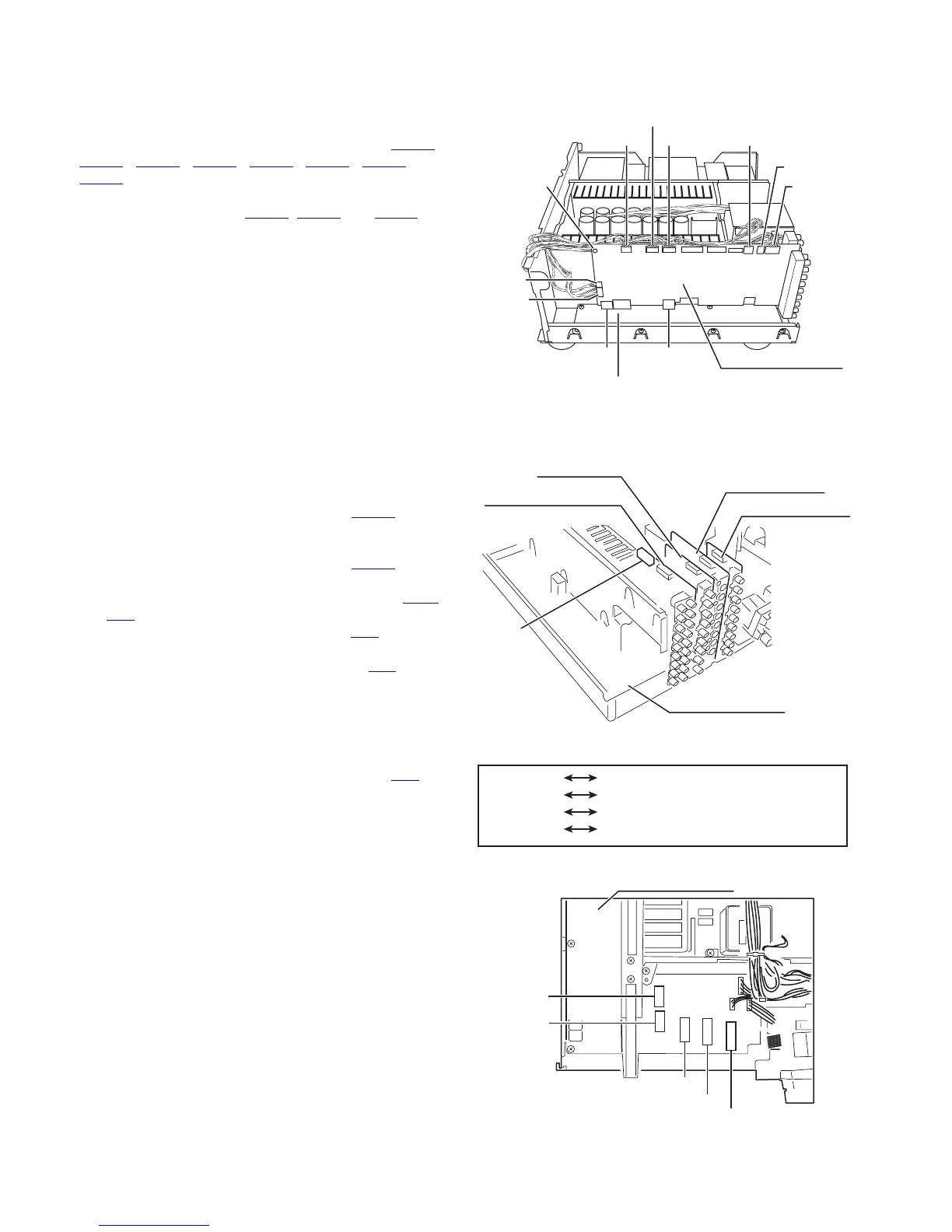

Fig.8
3.1.10 Removing the audio signal 2 board & video board & S video board
(See Fig.9 to 11)
• Prior to performing the following procedure, remove the top
cover, rear panel, Y/C separator board, DSP board and audio
signal 1 board.
(1) Disconnect the harness from the connector CN973
on the
front AV in board (see 2-3.Front panel assembly section/
fig.2).
(2) Disconnect the harness from the connector CN324
on the
audio signal 2 board.
(3) Remove the audio signal 2 board from the connector CN15
and CN6 on the input base board.
(4) Remove the video board from the connector CN7 on the in-
put base board.
(5) Remove the S video board from the connector CN8
on the
input base board.
3.1.11 Removing the V compo 1 board
(See Fig.9 to 11)
• Prior to performing the following procedure, remove the top
cover and rear panel.
(1) Remove the V compo 1 board from the connector CN9
on
the input base board.
Fig.9
Fig.10
Fig.11
Audio signal 1 board
CN234
Plastic rivet
CN224
CN204
CN202
CN205
CN221
CN206
CN208
CN223
CN207
CN218
Video board
V compo 1 board
Audio signal 2 board
S video board
CN324
Input base board
Connection between the Input base board and each board.
CN15/CN6
CN7
CN8
CN9
Audio signal 2 board (CN325/CN321)
Video board (CN401)
S video board (CN451)
V compo 1 board (CN501)
Input base board
CN15
CN6
CN7
CN8
CN9
