5.2 Emergency display function
This unit saves details of the last two emergencies as the EMG
history and allows the status of the VCR and the mechanism of
each emergency to be shown both on the display and as OSD in-
formation.
When using the emergency function, it is required to set the VCR
to the Jig RCU mode (the mode in which codes from the Jig RCU
can be received).

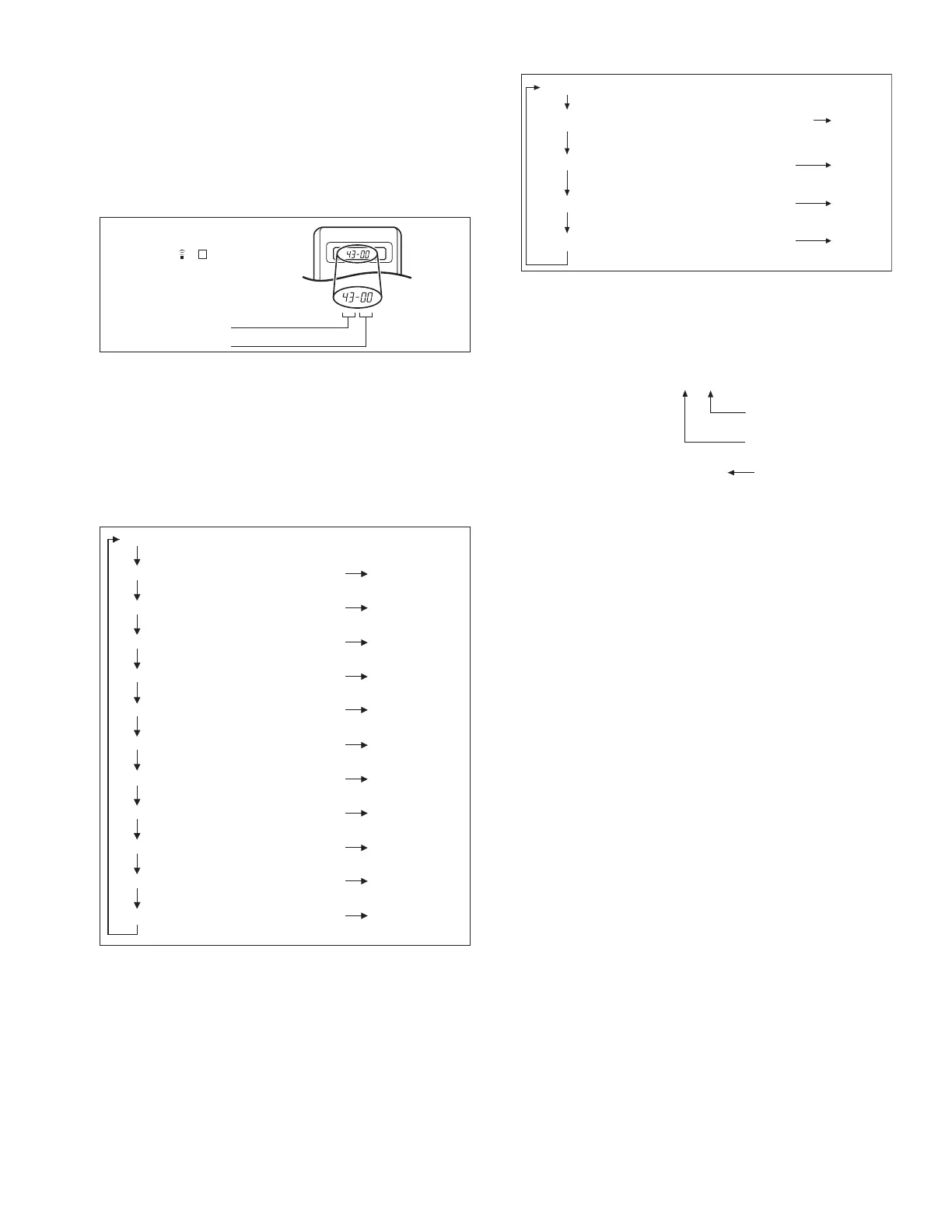

Fig.5-2a Jig RCU [PTU94023B]
5.2.1 Displaying the EMG information
The EMG detail of information can be displayed by transmitting
the code "59" from the Jig RCU.
Note:
• The EMG detail information < 1 >< 2 > show the informa-
tion on the latest EMG.
It becomes " – – : – – : – –" when there is no latest EMG
record.
EMG display of 7segment LED display model
Fig.5-2b
EMG display of FDP display model
Fig.5-2c
< Reference > EMG display of FDP display mode
(1) Transmit the code "59" from the Jig RCU.
The FDP shows the EMG content in the form of "E:**:**".
(2) Transmit the code "59" from the Jig RCU again.
The FDP shows the EMG detail information < 1 > in the
form of " *1: *2 : 34 ".
(3) Transmit the code "59" from the Jig RCU once again.
The FDP shows the EMG detail information < 2 > in the
form of " *5 : *6 : *7 ".
(4) Transmit the code "59" from the Jig RCU once again.
The FDP shows the EMG detail information < 3 > in the
form of "*8 : *9 : *10".
(5) Transmit the code "59" from the Jig RCU once again to re-
set the display.
5.2.2 Clearing the EMG history
(1) Display the EMG history.
(2) Transmit the code "36" from the Jig RCU.
(3) Reset the EMG display.
INITIAL MODE
DATA CODE
CUSTOM CODE
43: A CODE
[Data transmitting method]
Depress the " " ( 3 ) button
after the data code is set.
Jig RCU
0: 00
E: **
1E: **
1: *1
2: *2
3: 34
4: *5
5: *6
6: *7
7: *8
8: *9
9: *1 0
Normal display
EMG content display (Latest) See 5.2.4
EMG content display (Previous) See 5.2.4
EMG detail information <1> See 5.2.5
[Deck operation mode]
EMG detail information <1> See 5.2.5
[Mechanism operation mode]
EMG detail information <1> See 5.2.5
[Mechanism sensor information and Mechanism mode position]
EMG detail information <2> See 5.2.6
[Type of the cassette tape in use <1>]
EMG detail information <2> See 5.2.6
[Winding position of the cassette tape in use]
EMG detail information <2> See 5.2.6
[Type of the cassette tape in use <2> (Winding area)]
EMG detail information <3> See 5.2.7
[Previous deck operation mode]
EMG detail information <3> See 5.2.7
[The deck operation mode of the one before the last]
EMG detail information <3> See 5.2.7
[The deck operation mode of the one prior to one above]
*1 : Deck operation mode at the moment of EMG
*2 : Mechanism operation mode at the moment of EMG
3- : Mechanism sensor information at the moment of EMG
-4 : Mechanism mode position at the moment of EMG
*5 : Type of the cassette tape in use < 1 > .
*6 : Winding position of the cassette tape in use
*7 : Type of the cassette tape in use < 2 > (Winding area)
*8 : Previous deck operation mode at the moment of EMG
*9 : The deck operation mode of the one before the last at
the moment of EMG
*10: The deck operation mode of the one prior to one
above at the moment of EMG
0 : 00 : 00
E:** :**
*1: *2 : 34
*5: *6 : *7
*8: *9 : *10
EMG detail information <2> display See 5.2.6
[Cassette display mode]
EMG detail information <3> display See 5.2.7
[Deck mode history dispaly mode]
EMG detail information <1> display See 5.2.5
[Deck and other mode display mode]
EMG content display (E:Latest:Previous) See 5.2.4
[EMG code display mode]
Normal display (Counter or clock)
<Example 1> E : 01 : 03
Previous EMG
Latest EMG
No EMG record
<Example 2> E : - - : - -
