3.1.12 Removing the front board
(See Figs.18 and 19)
• Remove the metal cover and front panel assembly.
(1) From the front side of the front panel assembly, pull out the
volume knob in the direction of the arrow. (See Fig.18.)
(2) From the inside of the front panel assembly, remove the six
screws T attaching the front board. (See Fig.19.)
(3) Take out the front board from the front panel assembly.

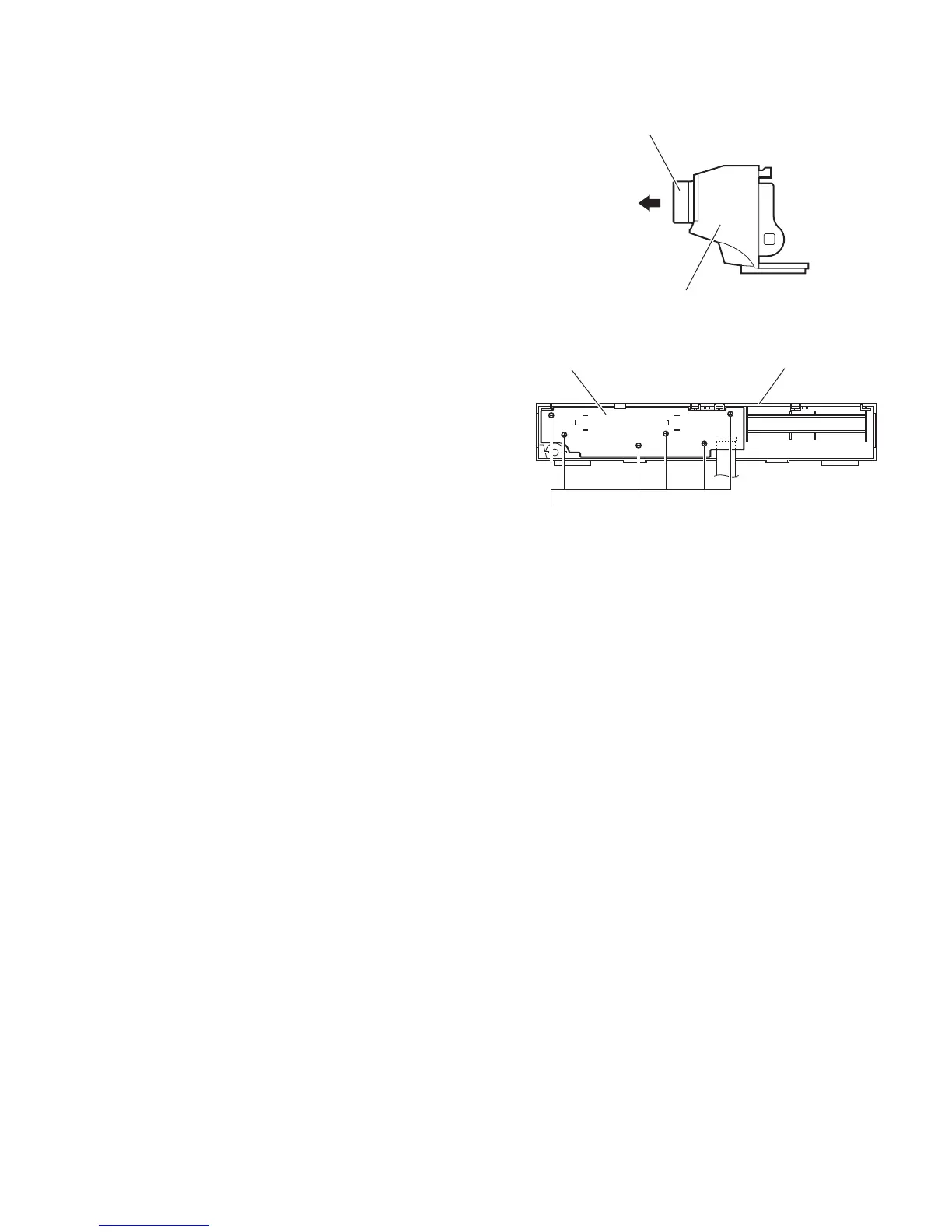

Fig.18
Fig.19
Front panel assembly
Volume knob
Front board
Front panel assembly
T
