3.2 DVD mechanism section
• Remove the DVD mechanism assembly from the main body.
3.2.1 Removing the traverse mechanism assembly
(See Fig.1)
From the bottom side of the DVD mechanism assembly, remove
the four screws A attaching the traverse mechanism assembly
and take out the traverse mechanism assembly with the DVD
module board.

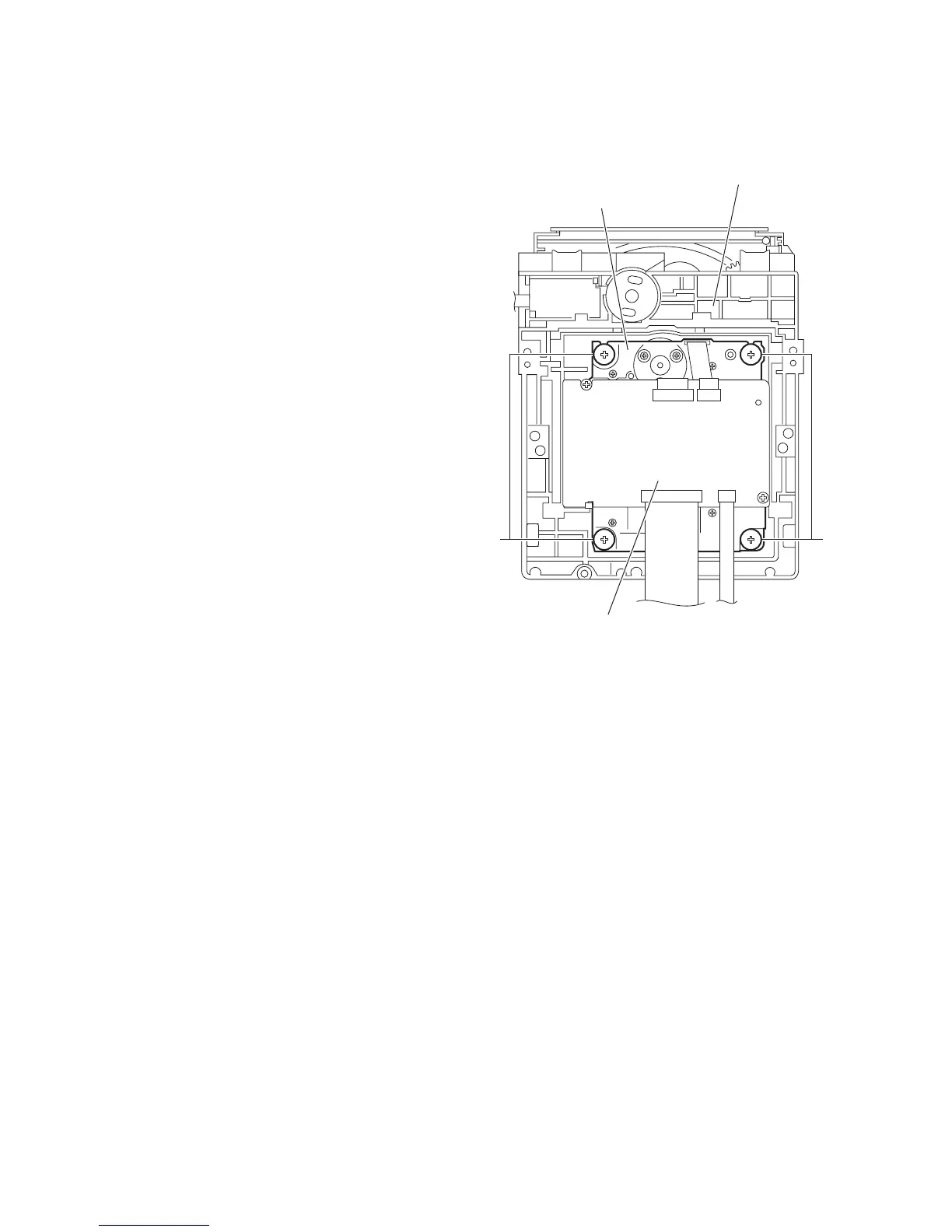

Fig.1
AA
DVD module board
Traverse mechanism assembly
DVD mechanism assembly
