HOW TO USE EXTERNAL
CONTROL
 ABOUT EXTERNAL CONTROL
This monitor is provided with an external control terminal.
The function is controlled with H and L (short-circuit/open with the 15th pin GND)
Note:
● The ASPECT RATIO or INPUT function can be controlled via the REMOTE terminal by setting ASPECT REMOTE or INPUT
REMOTE to ON in the <SET-UP MENU> screen. (Refer to pages 9 and 10.)

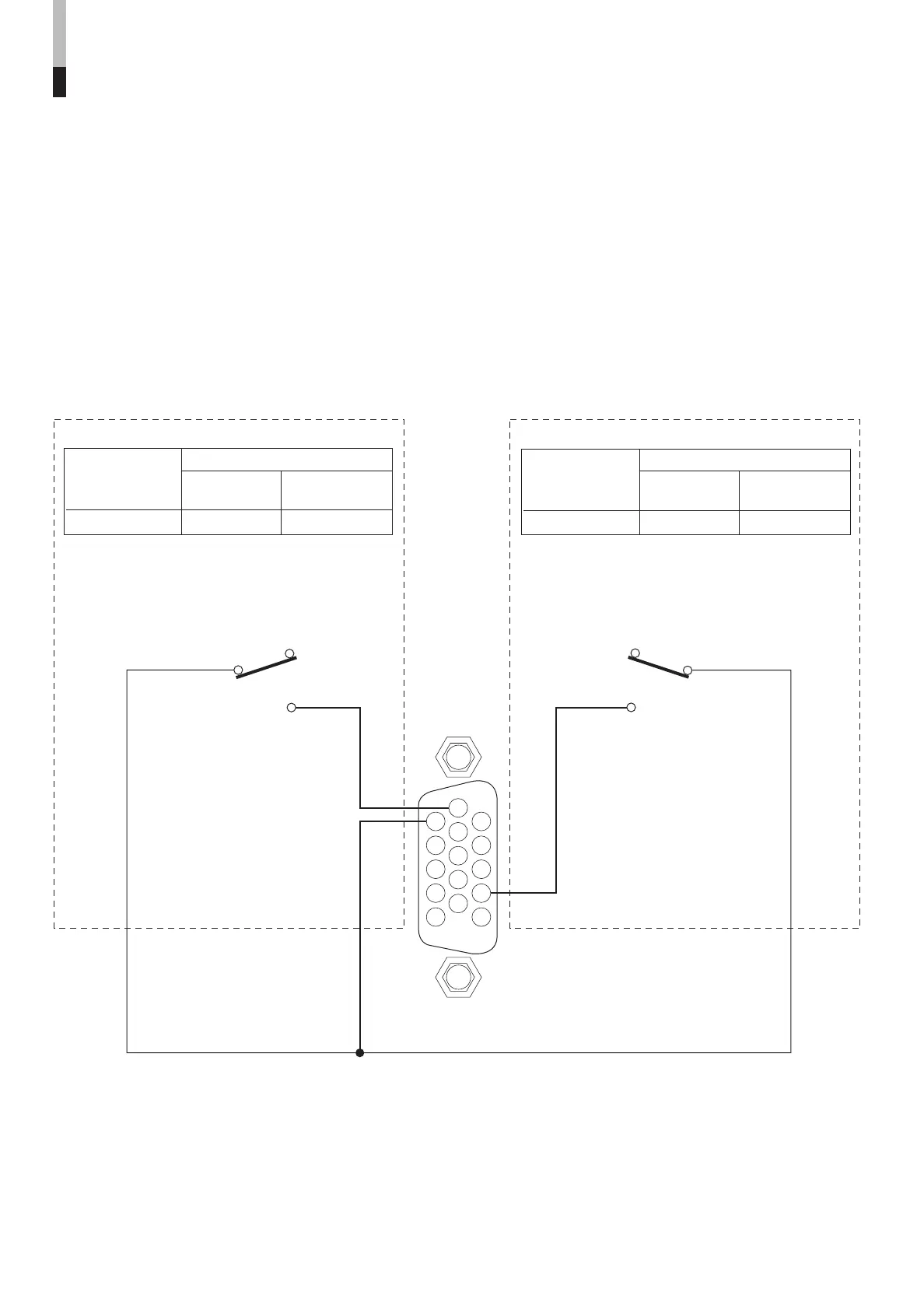

Connections
Connect (short-circuit) the 15th terminal (GND) to the 2nd or 10th terminals in the 3-line 15-pin D-sub connector. Do not connect
other terminals.
External control switch
Open circuit Closed circuit
(open) (short)
ASPECT RATIO 4-3 (4:3) 16-9 (16:9)
External
control
functions
External control switch
Open circuit (open)
Closed circuit (short)
ASPECT
External control switch
Open circuit Closed circuit
(open) (short)
INPUT INPUT A INPUT B
External
control
functions
External control switch
Open circuit (open)
Closed circuit (short)
INPUT
GND
LCT1422-001A-H 07.10.25, 9:59 AM14
