8
EXIT
CHROMA MENU
PHASE BRIGHT
CONTRAST VOLUME/SELECT
< MENU >
‰ SHARPNESS : 00
COLOR TEMP. : 6500
COLOR SYSTEM : AUTO
ASPECT RATIO : 4-3
Menu items Purpose Setting range
SHARPNESS Picture sharpness
COLOR TEMP. Colour temperature of white
balance
COLOR SYSTEM Colour system
ASPECT RATIO Aspect ratio
Front panel Function
Contents
button displayed
+ Increases (to max. value)
4
Forwards the setting value
– Decreases (to min. value)
1
Reverses the setting value
VOLUME/
SELECT (–)
VOLUME/
SELECT (+)
Front panel Function
Contents
button displayed
CHROMA/ Forwards selection mark (
4
)
PHASE
CONTRAST/
Reverses selection mark (
4
)
BRIGHT
Front panel Function
Contents
button displayed
MENU EXIT
Quits (or Releases) the <MENU>
screen
1
2
3
4

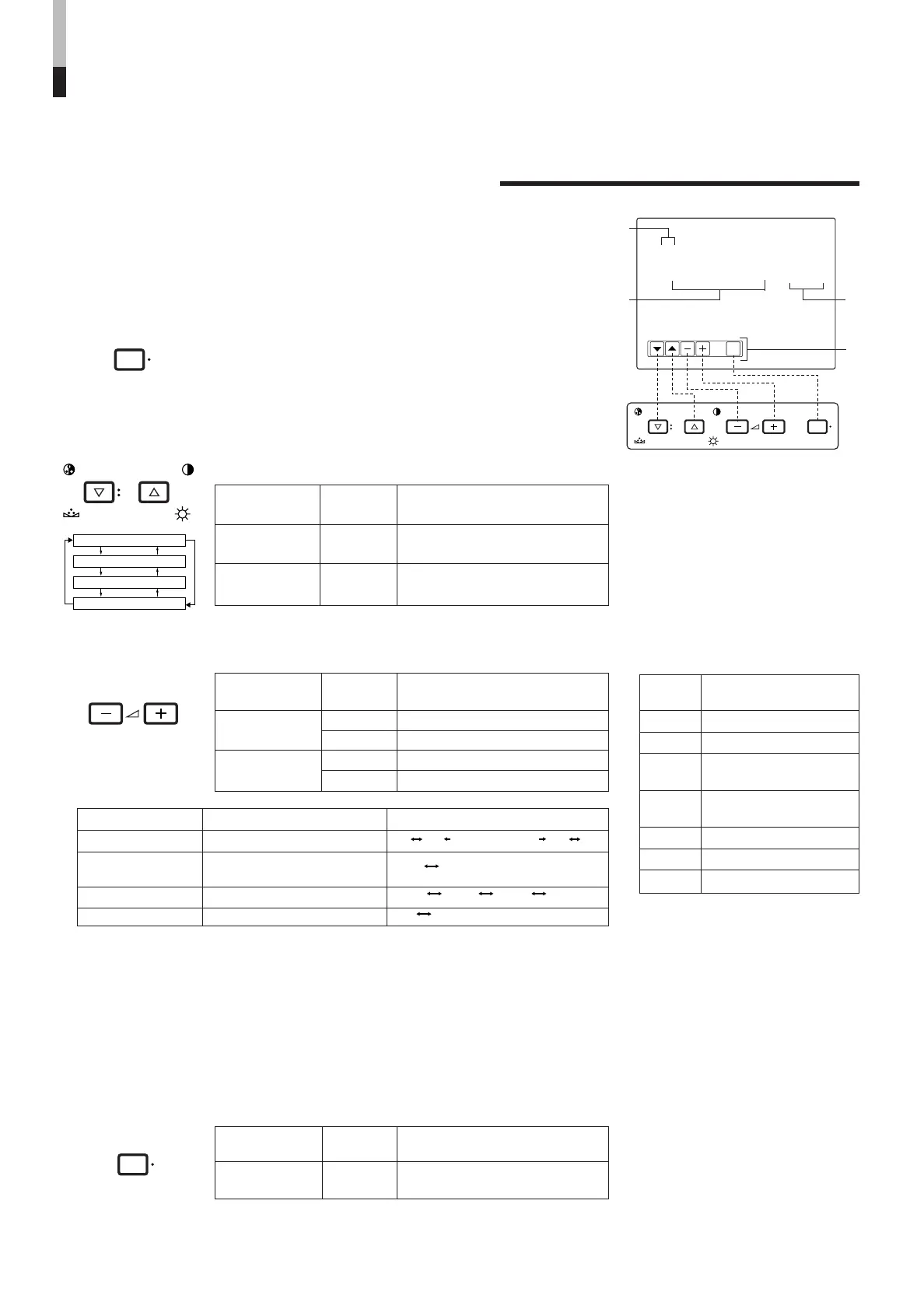

HOW TO USE THE MENU FUNCTIONS
• SHARPNESS • COLOR SYSTEM
• COLOR TEMP. • ASPECT RATIO
You can set the following menu items.
Set them depending on your needs.
1. Press the MENU button.
The <MENU> screen is displayed.
* The on-screen display goes off automatically after about five
minutes with operation performed.
2. Press the CHROMA/PHASE or CONTRAST/BRIGHT
button to select MENU items.
A selection mark (
4
) is put next to the selected item.
SHARPNESS
COLOR TEMP.
COLOR SYSTEM
ASPECT RATIO
3. Press the VOLUME/SELECT buttons to set.
4. If you want to set the other menu items, repeat
procedures 2 and 3.
5. Press the MENU button to quit.
1 Selection mark (
4
): Indicates the
menu item you select.
2 Menu item: Menu items you can
select.
3 Setting display: Indicates the current
settings (value).
4 Function display: The functions of
the front panel buttons (5 buttons on
the left) correspond to the function
displayed.
<MENU> screen
<Front panel buttons>
Function
Contents
displayed
Forwards the menu item.
Reverses the menu item.
– Lowers the adjustment
value. (to the minimum)
+ Raises the adjustment
value. (to the maximum)
4
Forwards the setting value.
1
Reverses the setting value.
EXIT Exits the <MENU> screen.
DISPLAY AND SELECTION IN THE <MENU>
SCREEN MODE (SETTING)
MENU
CHROMA
PHASE BRIGHT
CONTRAST
VOLUME/SELECT
MENU
00 +01 +39 +40
• • • • • • • • • • • •
6500 9300
AUTO NTSC AUTO PAL
* For normal use, leave the COLOR SYSTEM setting to AUTO.
If reception is unsatisfactory in AUTO position, set it to the appropriate colour system mode (NTSC or PAL).
* When ASPECT REMOTE in the <SET-UP MENU> screen is set to ON, “REMOTE” is displayed on the
ASPECT RATIO setting and the aspect ratio cannot be changed from the <MENU> screen.
4-3 16-9
● When the screen aspect ratio is set to
16 - 9 (16:9) in ASPECT RATIO, the
picture will be vertically reduced.
LCT1422-001A-H 07.10.25, 9:58 AM8
