DISPLAY AND SELECTIONS IN THE <SET-UP
MENU> MODE (SETTING)
• H. POSITION • CONTROL LOCK • ASPECT REMOTE
• V. POSITION • STATUS DISPLAY
• WHITE BALANCE • INPUT REMOTE
You can set the following set-up menu items.
1. While pressing the MENU button, press the
CHROMA/PHASE button.
The <SET-UP MENU> screen is displayed.
2. Press the CHROMA/PHASE or CONTRAST/BRIGHT
button to select the desired menu item.
A selection mark (
4
) is put next to the selected item.
3. Press the VOLUME/SELECT buttons to set.
● For WHITE BALANCE items, select the CUT OFF or DRIVE
setting screen, then select the function display for adjustment.
● Press the EXIT (MENU) button to return to the <SET-UP
MENU> screen.
Notes:

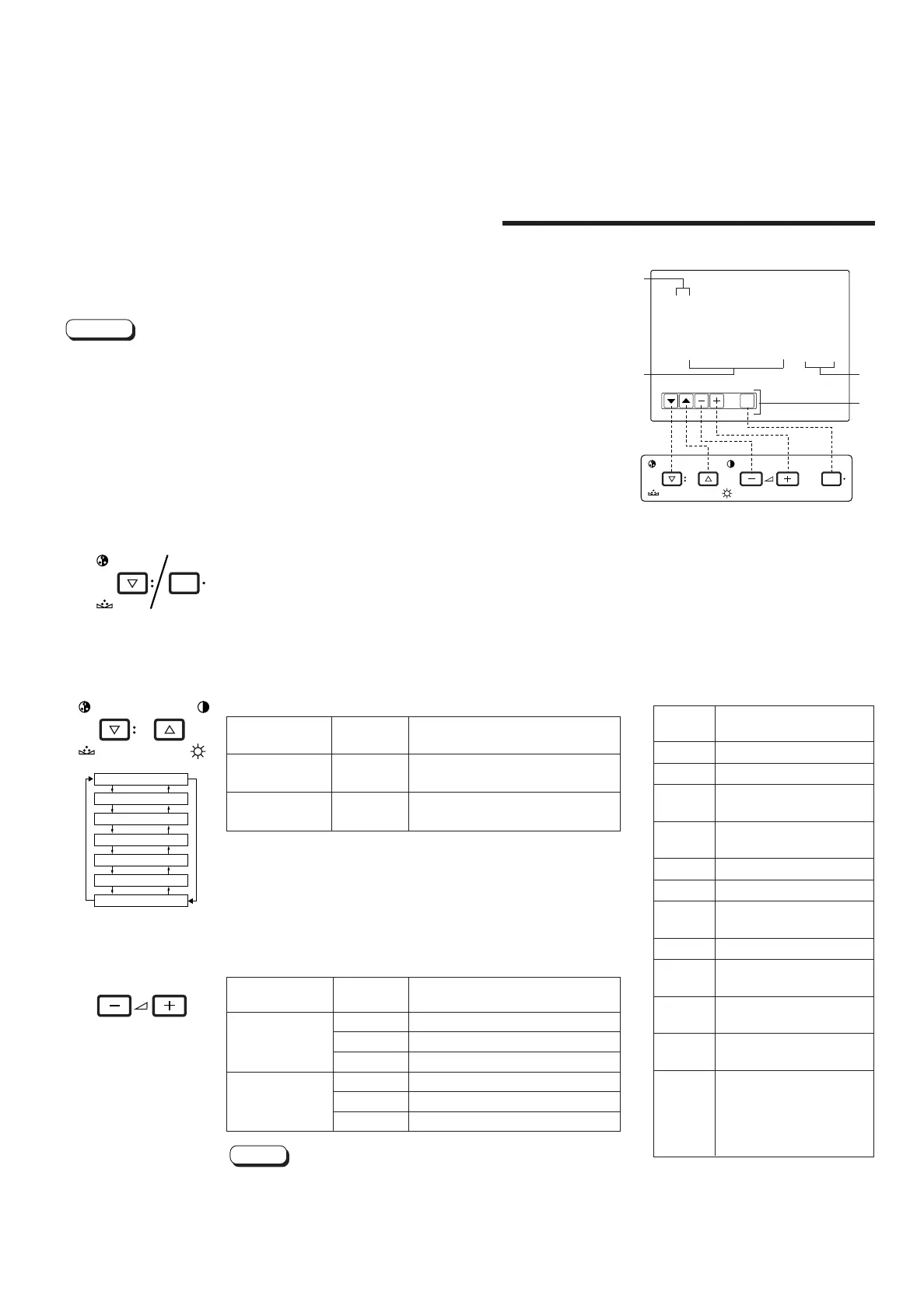

<SET-UP MENU> screen
<Front panel buttons>
1 Selection mark (
4
): Indicates the
menu item you select.
2 Menu item: Menu items you can
select.
3 Setting display: Indicates the
current settings (value).
4 Function display: The functions of
the front panel buttons (5 buttons
on the left) correspond to the
function displayed.
Function
Contents
displayed
Forwards the menu item.
Reverses the menu item.
– Lowers the adjustment
value. (to the minimum)
+ Raises the adjustment
value. (to the maximum)
4
Forwards the setting value.
1
Reverses the setting value.
EXIT
Exits the <SET-UP
MENU> screen.
DRV Selects DRIVE adjustment.
CUTO
Selects CUT OFF
adjustment.
RB
Adjusts red and blue
signal level.
RGB
Adjusts red, green and
blue signal level.
DISP
Turns the ON-SCREEN
display on or off. (This
function is effective only in
the DRIVE or CUT OFF
adjustment mode.)
Front panel Function
Contents
button displayed
CHROMA/
Forwards selection mark (
4
)
PHASE
CONTRAST/
Reverses selection mark (
4
)
BRIGHT
Front panel Function
Contents
button displayed
+ Increases (to max. value)
4
Forwards the setting value
CUTO Selects CUT OFF setting screen
– Decreases (to min. value)
1
Reverses the setting value
DRV Selects DRIVE setting screen
VOLUME/
SELECT (–)
VOLUME/
SELECT (+)
● Parameters for H. POSITION and V. POSITION can be set separately depending on
the signal (Input A (VIDEO), Input B (VIDEO) or Input B (Y/C)) selected with the input
select buttons on the front panel.
Select the required video input with the input select buttons on the front panel in
advance.
● WHITE BALANCE can be set independently at 6500 or 9300 for the colour tempera-
ture value.
Set COLOR TEMP. to 6500 or 9300 on the <MENU> screen beforehand.
Notes:
<SET-UP MENU>
‰ H. POSITION : 00
V. POSITION : 00
WHITE BALANCE
CONTROL LOCK : OFF
STATUS DISPLAY : ON
INPUT REMOTE : OFF
ASPECT REMOTE : OFF
1
2
3
4
H. POSITION
V. POSITION
WHITE BALANCE
CONTROL LOCK
STATUS DISPLAY
INPUT REMOTE
ASPECT REMOTE
MENU
CHROMA
PHASE
CHROMA
PHASE BRIGHT
CONTRAST
VOLUME/SELECT
9
LCT1422-001A-H 07.10.25, 9:58 AM9
