JVC TM-A170G User Manual

Chroma/Phase button
[
CHROMA/ PHASE]
Press this button to activate the picture colour density
adjustment mode or picture hue adjustment mode. Each
time you press the button, the adjustment item changes.
Picture colour density f Picture hue
Adjust the value with the VOLUME/SELECT buttons 3.
Also used as a control button in the menu function mode.
Contrast/Brightness button
[CONTRAST
/ BRIGHT ]
Press this button to activate the picture contrast adjust-
ment mode or picture brightness adjustment mode. Each
time you press the button, the adjustment item changes.
Picture contrast
f Picture brightness
Adjust the value with the VOLUME/SELECT buttons
3.
Also used as a control button in the menu function mode.
Volume/Select buttons
[VOLUME/SELECT –
+]
Adjusts the speaker volume. Also used as a control
button in the menu function mode.
Menu button [MENU]
Displays and disappears the <MENU> screen.
Pressing the CHROMA/PHASE button 1 with the Menu
button depressed will display the <SET-UP MENU>
screen.
Input A (VIDEO) button [INPUT SELECT A]
Selects the video and audio signals input to the VIDEO A
! and AUDIO A $ terminals on the rear panel. The
button lights when selected.

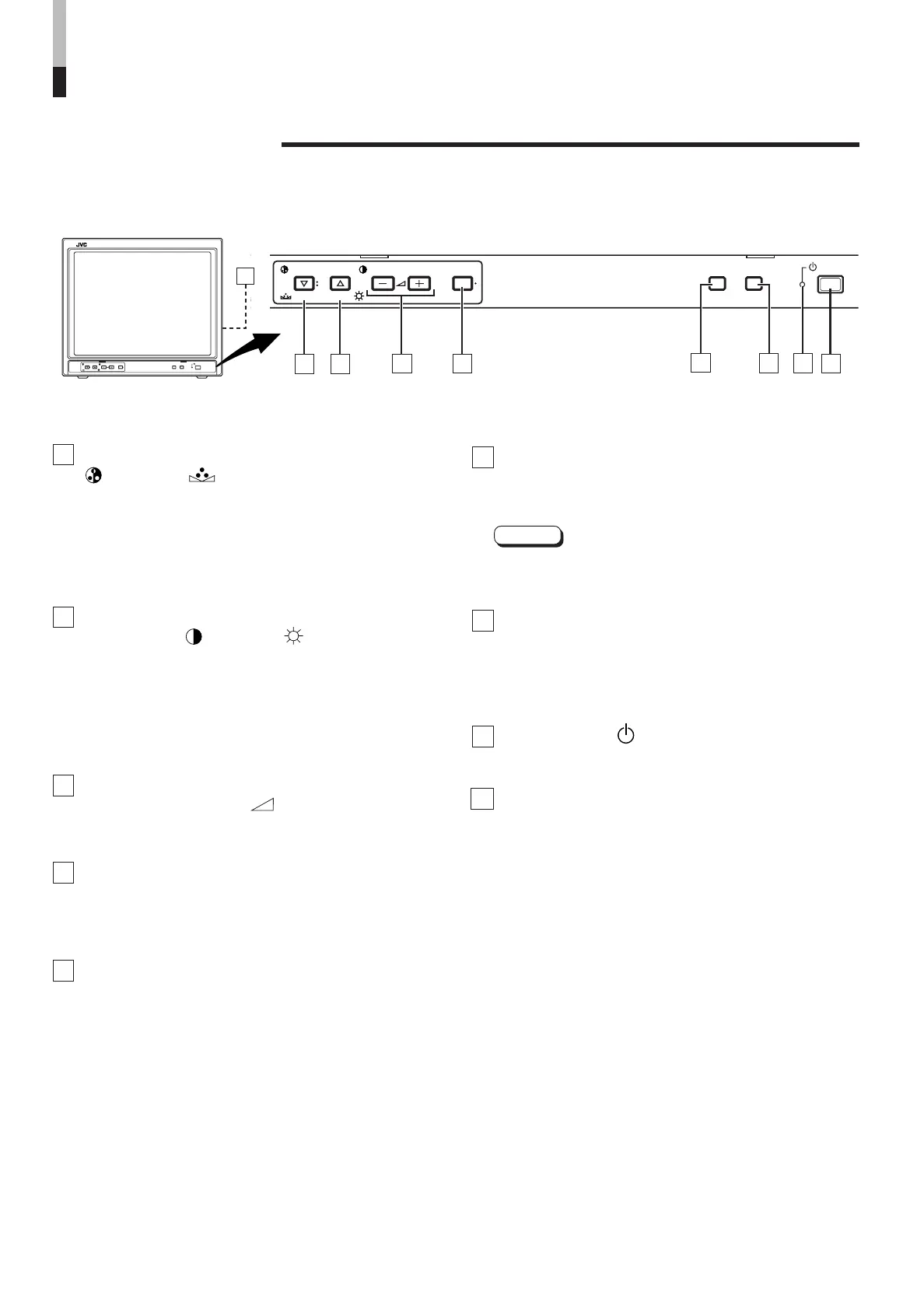

CONTROLS AND FEATURES
FRONT VIEW
<Front Panel>
Input B (VIDEO Y/C) button [INPUT SELECT B]
Selects the video and audio signals input to the VIDEO B
@ or VIDEO B (Y/C) # and AUDIO B % terminals on
the rear panel. The button lights when selected.
Note:
● The VIDEO B terminals include a video terminal (BNC
connector) and a Y/C terminal (mini-DIN 4-pin connec-
tor). The Y/C (S-video) terminal has priority.
Power indicator
Unlit : The main power is OFF.
Orange : The main power is ON, but the monitor’s power
is OFF (in the stand-by mode).
Green : The main power is ON, and the monitor’s power
is ON (in the normal operation mode).
Power switch [ POWER]
Press the power switch to turn the monitor’s power ON or
OFF when the main power is ON.
Speaker
A built-in speaker is located inside the right side panel
when the monitor is viewed from the front.
1
2
3
4
5
6
7
8
9
4
5
7
6
POWER
CHROMA MENU
INPUT SELECT
PHASE
5
0C
BRIGHT
CONTRAST VOLUME/SELECT
AB
8
4
3
21
9
POWER
CHROMA MENU
INPUT SELECT
PHASE
TM-A170
BRIGHT
CONTRAST VOLUME/SELECT
AB
LCT1422-001A-H 07.10.25, 9:58 AM4
