JVC TM-A170G

ENGLISH
External control terminal [REMOTE]
Remote terminal for external control.
The input signal (the INPUT function) or the aspect ratio
(the ASPECT RATIO function) can be selected by
external control using a switch cable. Setting of the
INPUT REMOTE or ASPECT REMOTE item in the <SET-
UP MENU> screen is required before using external
control.
Refer to the HOW TO USE EXTERNAL CONTROL on
page 14 for more details.
Video A terminals [VIDEO A IN/OUT]
Video signal input (IN) and output (OUT) terminals.
The output terminal is bridge-connected.
IN : Video signal input terminal
OUT : Bridge-connected video signal output terminal
Notes:
* For corresponding audio signals, use the AUDIO A
terminals $.
* Also refer to BASIC CONNECTION EXAMPLE
on page 12.
Video B terminals [VIDEO B IN/OUT]
Video signal input (IN) and output (OUT) terminals.
The output terminal is bridge-connected.
IN : Video signal input terminal
OUT : Bridge-connected video signal output terminal
Notes:
* For corresponding audio signals, use the AUDIO B
terminals %.
* Also refer to BASIC CONNECTION EXAMPLE on
page 12.
Video B (Y/C) terminals [VIDEO B Y/C IN/OUT]
Y/C (S-video) signal input (IN) and output (OUT) termi-
nals. The output terminal is bridge-connected.
IN : Y/C-separated (S-video) video signal input
terminal
OUT : Bridge-connected Y/C-separated (S-video) signal
output terminal.

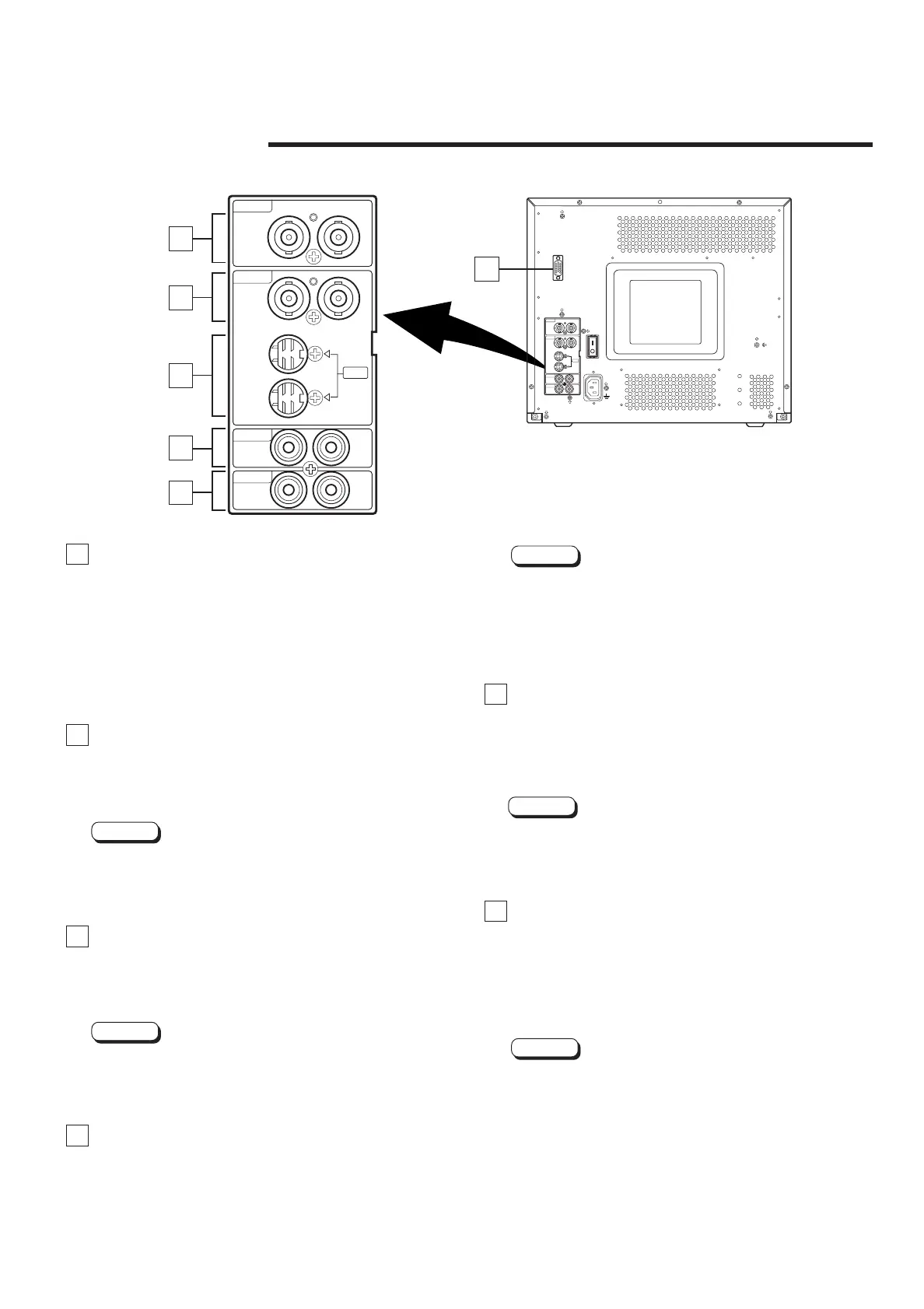

REAR VIEW
<Rear Panel>
10
11
12
13
5
Notes:
* For corresponding audio signals, use the AUDIO B
terminals %.
* When both VIDEO B terminals are connected (input) at
the same time, the Y/C terminal has priority.
* Also refer to BASIC CONNECTION EXAMPLE
on page 13.
Audio A terminals [AUDIO A IN/OUT]
Input (IN) and output (OUT) terminals for the audio signal
corresponding to the VIDEO A terminals
!.
The output terminal is bridge-connected.
IN : Audio signal input terminal
OUT : Bridge-connected audio signal output terminal
Notes:
* For corresponding video signals, use the VIDEO A
terminal
!.
* Also refer to BASIC CONNECTION EXAMPLE
on page 12.
Audio B terminals [AUDIO B IN/OUT]
Input (IN) and output (OUT) terminals for the audio
signals corresponding to the VIDEO B terminals
@
VIDEO B (Y/C) #.
The output terminal is bridge-connected.
IN : Audio signal input terminal
OUT : Bridge-connected audio signal output terminal
Notes:
* For corresponding video signals, use the VIDEO B
terminals
@ or VIDEO B (Y/C) terminals #.
* Also refer to BASIC CONNECTION EXAMPLE
on pages 12 and 13.
14
11
10
12
13
14
15
VIDEO A
REMOTE
AUDIO A
AUDIO B
VIDEO B
IN OUT
IN
IN
IN
OUT
OUT
IN
OUT
Y/C
OUT
VIDEO A
AUDIO A
AUDIO B
VIDEO B
IN OUT
IN
IN
IN
OUT
OUT
IN
OUT
Y/C
OUT
15
