1-10 (No.MB066)

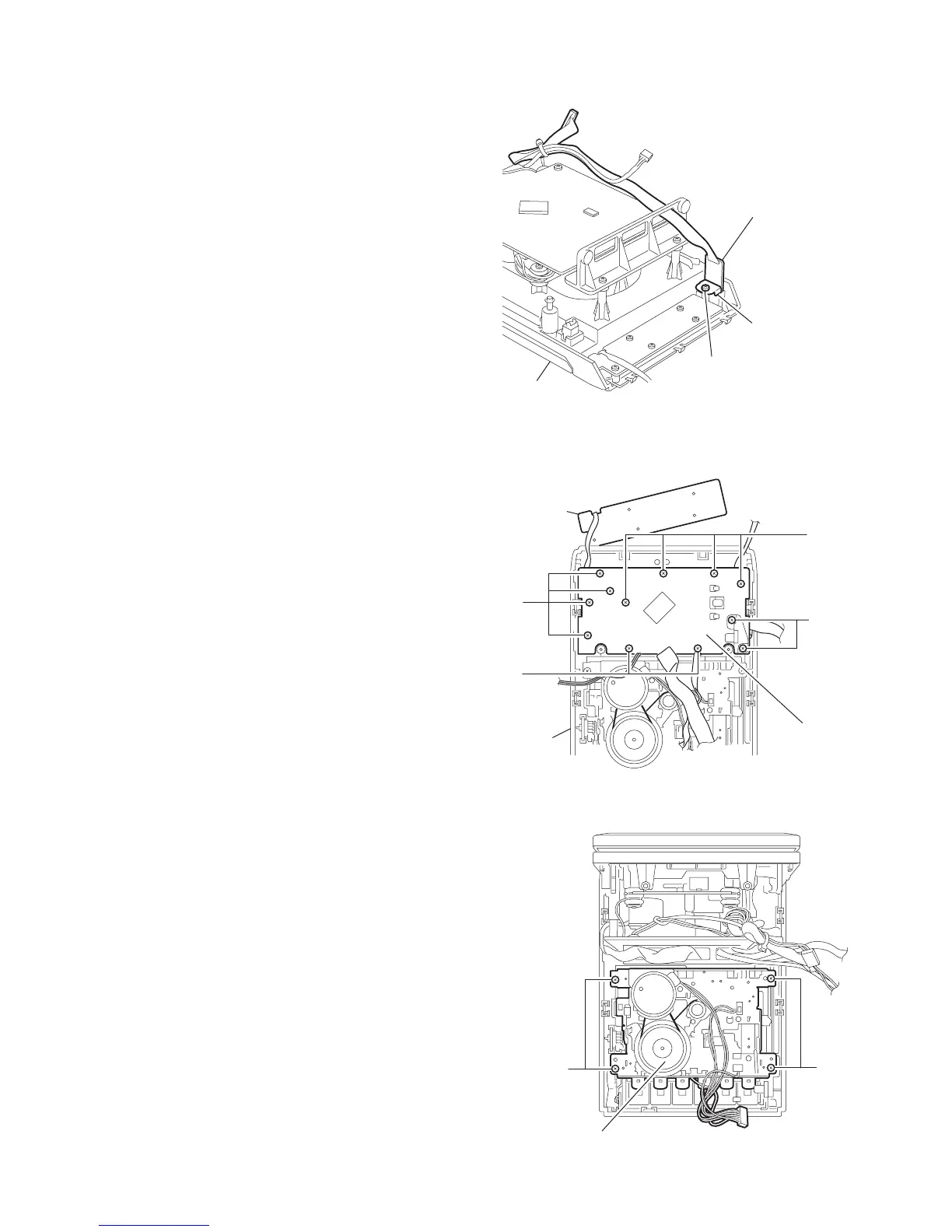

3.1.5 Removing the Headphone board
(See Fig.14)
• Prior to performing the following procedure, remove the front
panel assembly, the main board and the CD mechanism
assembly.
(1) Remove the screw L on the bracket and pull out the
headphone board.
Fig.14
3.1.6 Removing the LCD board
(See Fig.15)
• Prior to performing the following procedure, remove the front
panel assembly, the main board and the CD mechanism
assembly.
(1) Remove the ten screws M and the two screws N on the
Front panel assembly.
Fig.15
3.1.7 Removing the Cassette mechanism
(See Fig.16)
• Prior to performing the following procedure, remove the front
panel assembly and the main board.
(1) Remove the four screws P on the front panel assembly and
press the eject button on the front side to remove the
cassette mechanism assembly.
Fig.16
L
Head phones board
Head phones
bracket
CD mechanism
assembly
Switch board
Front panel
assembly
LCD board
N
M
M
M
PP
Cassette mechanism
assembly.
