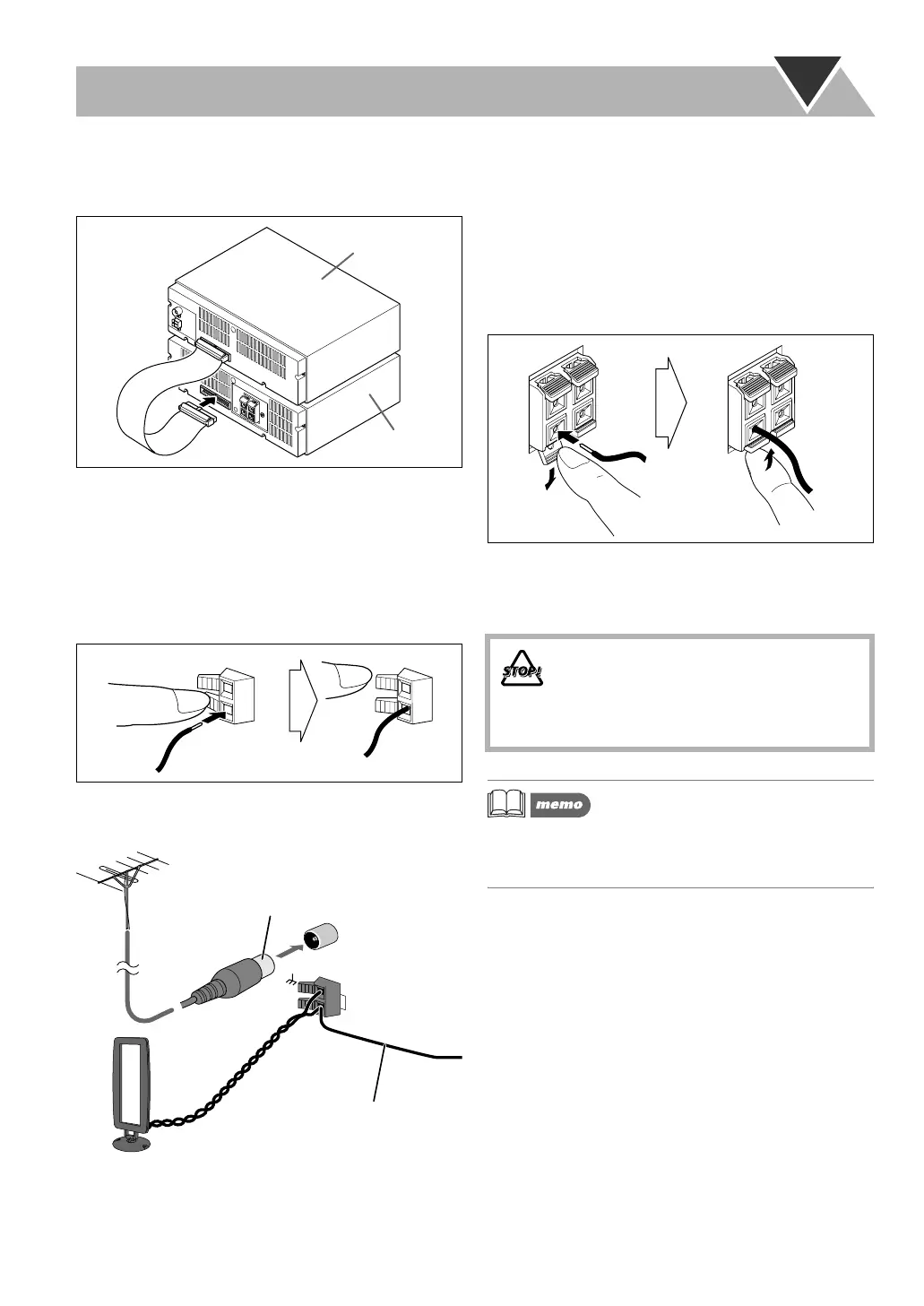

To connect the control cable
The control cable is connected to the player/tuner unit when
shipped. Connect it to the amplifier unit.
• When the amplifier unit and player/tuner unit are not
connected with the control cable, you cannot operate the
System.
• You can place the player/tuner unit at the side of the
amplifier unit.
To connect the AM loop antenna
Make sure to connect the wire correctly.
For better FM/AM reception
• Make sure the antenna conductors do not touch any other
terminals, connecting cords and the AC power cord. Also,
keep the antenna away from metallic parts of the System,
connecting cords, and the AC power cord. This could cause
poor reception.
To connect the speaker cords
Make sure the both speakers are connected correctly and
firmly.
When connecting the speaker cords, match the polarity of
the speaker terminals: The black cord to (–), the red cord to
(+).
• If the AM loop antenna wire or speaker cords are covered
with vinyl, remove the vinyl to expose the tip of the
antenna wire or speaker cords by twisting the vinyl.
Player/tuner unit
Amplifier unit
2. Insert
3. Release
1. Hold
AM
LOOP
ANTENNA
AM EXT
FM
COAXL
75Ω
AM loop antenna
Keep it connected.
Outdoor FM antenna (not supplied)
Vinyl-covered wire (not supplied)
Extend it horizontally.
Disconnect the supplied FM antenna, and connect
to an outdoor FM antenna using a 75
Ω
wire with
coaxial type connector (IEC or DIN45325).
• DO NOT connect more than one speaker to
each terminal.
• DO NOT allow the conductor of the speaker
cords to be in touch with the metallic parts of
the System.
1. Unlock
2. Insert
3. Lock
