Fig.2-16

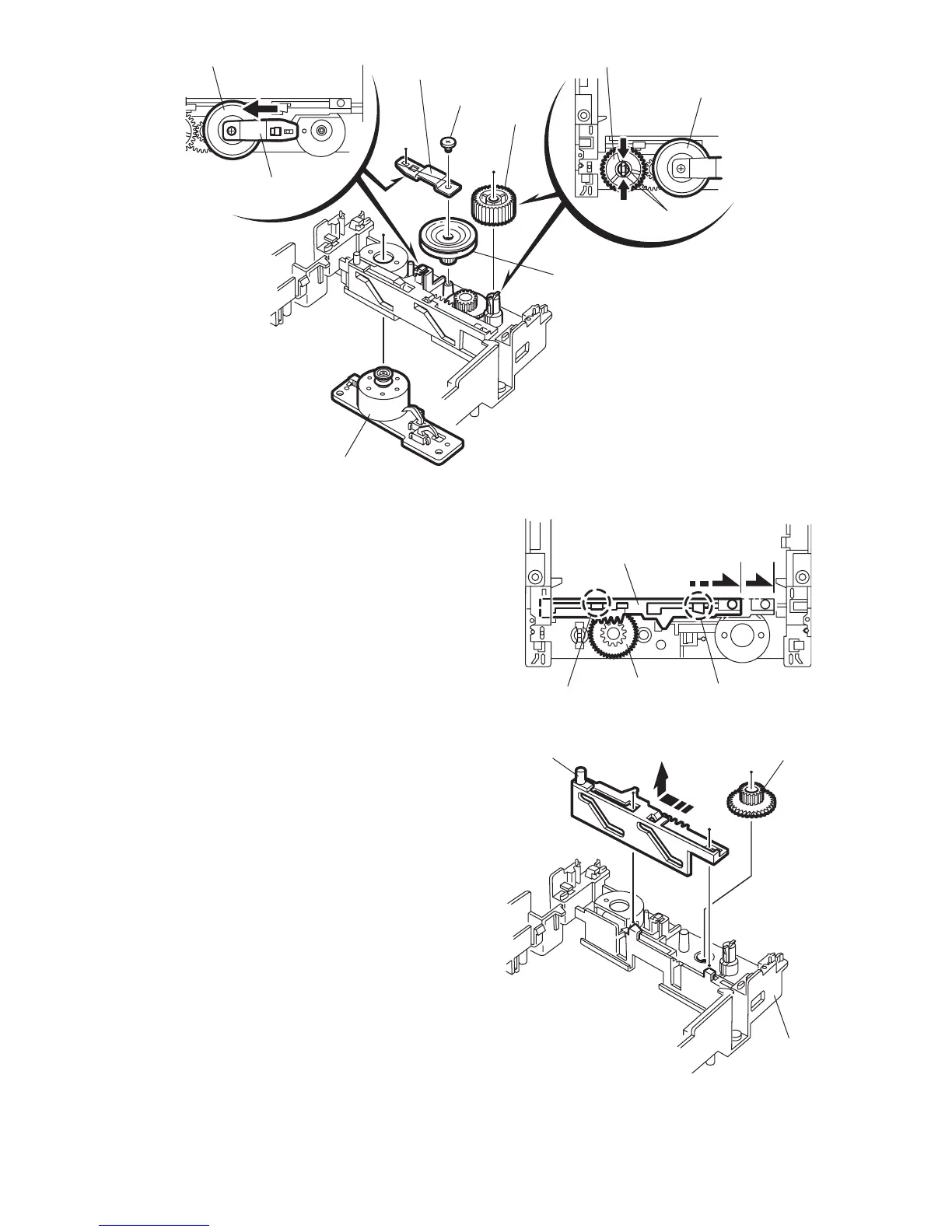

2.2.6 Removing the Idle gear/pully gear/
middle gear/slitecam (See Fig.2-16 to 2-18)
• Prior to performing the followong procedure,remove
the clamper assembly,the tray,the traverse mechanism
assembly,the elevator and the motor assembly.
(1) Press the two tabs h inward and pull out idle gear.
(2) Remove the screw E attaching the pulley gear bracket.
Slide the pulley gear bracket in the direction of the
arrow and pull out the pulley gear.
(3) Slide the side cam in the direction of the arrow to
release the two joins i and remove upward.
(4) Remove the middle gear.
Fig.2-17
Fig.2-18
Motor assembly
Pulley gear bracket
Pulley gear bracket
E
Idle gear
Idle gear
Pulley ge
Tads h
Pulley gear
Middle gear
Joint i
Joint i
Slide cam
Loading bas
