2.2.5 Removing the motor assembly
(See Fig.2-14 and 2-15)
• Prior to performing the following procedure, remove
the clamper assembly, the tray.the traverse mechanism
assembly and the elevator.
(1) Remove the belt from the pulley.
(2) Remove the screw C attaching the motor assembly.
(3) Turn over the body and remove the screw D
attaching the motor assembly.
(4) Release the two tabs g retaining the motor board.

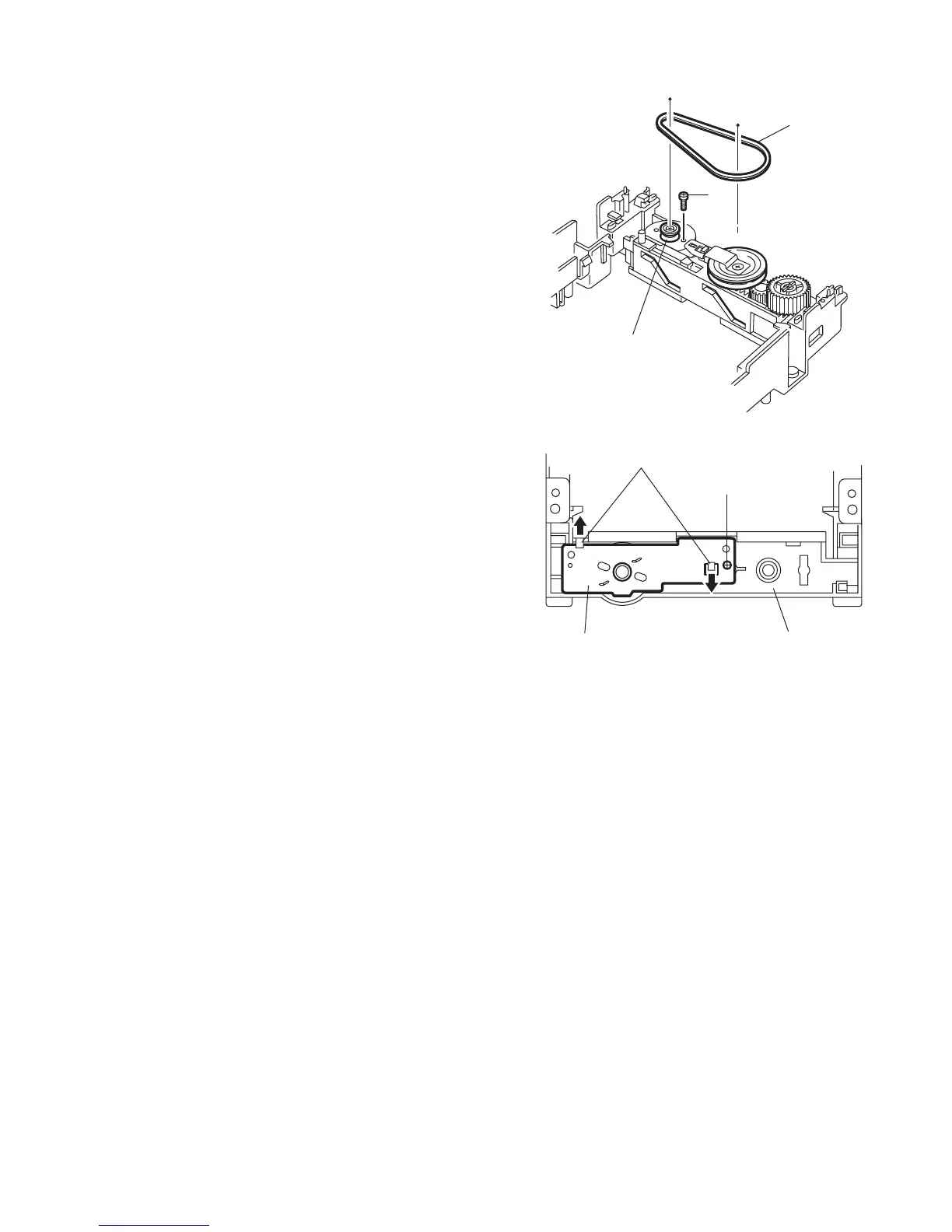

Fig.2-14
Fig.2-15
C
Motor assembly
Belt
Loading base
M
otor assembly
D
Tabs g
