268 JVL A/S - User Manual - Integrated Servo Motors MAC050 - 4500
5.7 Expansion Module MAC00-FD4
5.7.27 Cables for the MAC00-FD4
The following cables equipped with M12 connector can be supplied by JVL.
Important: Please note that the cables are a standard type. They are not recommended for use in
cable chains or where the cable is repeatedly bent. If this is required, use a special robot
cable (2D or 3D cable). See also
Accessories, page 448 where additional M12 connec-
tors are shown.

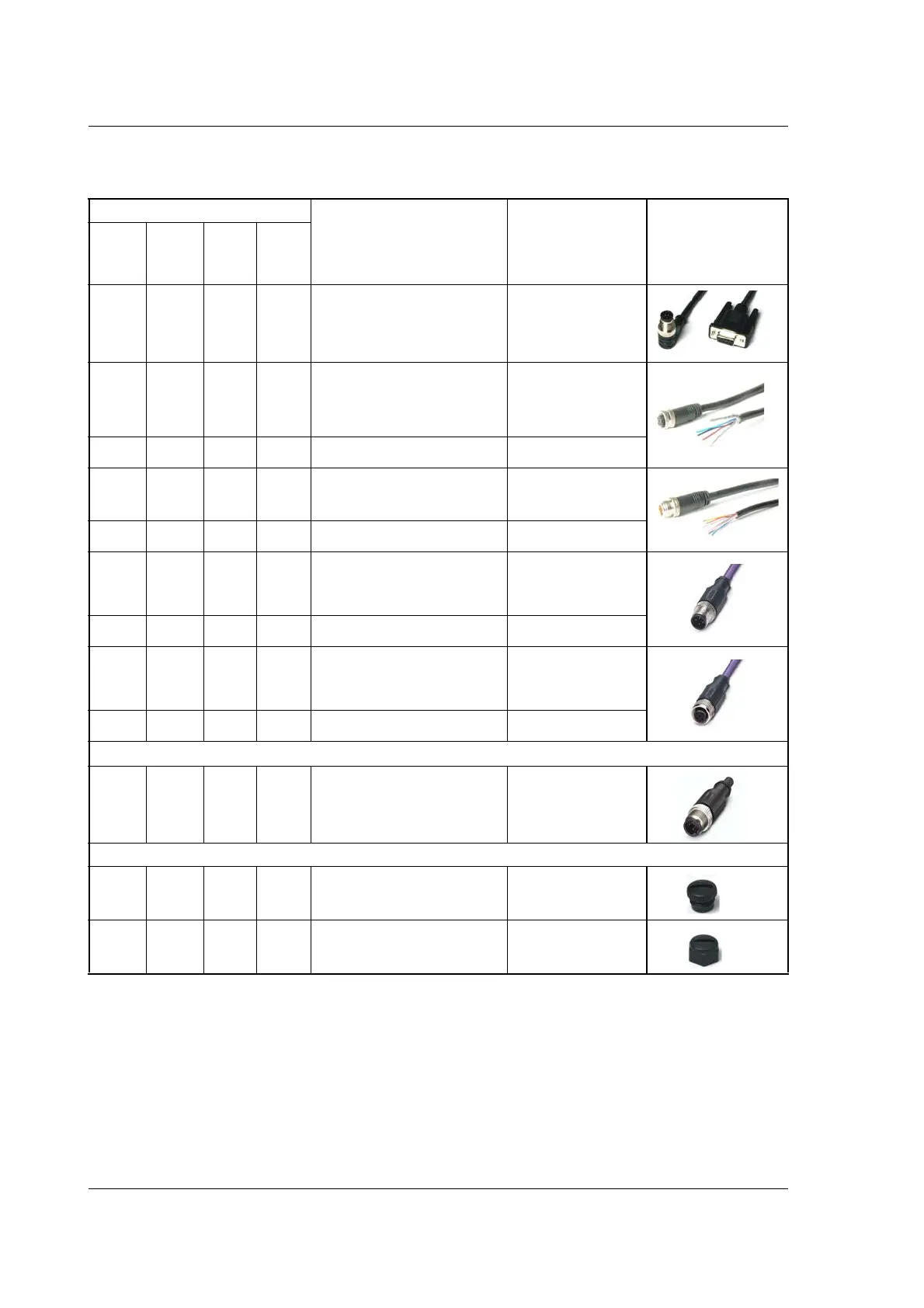

MAC00-FD4 Connectors
Description JVL Order no. Photo
“BUS1”
5-pin
Male
B-cod-
ed
“BUS2”
5-pin
Female
B-cod-
ed
“I/O”
8-pin
Fe-
male
“PWR”
5-pin
Male
X
RS232 Interface cable. Con-
nects
directly from MAC00-FD4 to PC
Length: 5m (197 inch)
RS232-M12-1-5-8
X
Cable (Ø5.5mm) with M12 fe-
male
5-pin connector loose wire ends
0.35mm² (22AWG) and foil
screen.
Length: 5m (197 inch)
WI1000-M12F5T05N
X
Same as above but 20m (787
inch)
WI1000-M12F5T20N
X
Cable with M12 male 8-pin
connector loose wire ends
0.22mm² (24AWG) and screen.
Length: 5m (197 inch)
WI1000-M12M8T05N
X
Same as above but 20m (787
inch)
WI1000-M12M8T20N
X
DeviceNet cable with M12 male
5-
pin connector, loose ends
and screen.
Length: 5m (197 inch).
WI1006-M12M5S05R
X
Same as above but 15m (591
inch)
WI1006-M12M5S15R
X
DeviceNet cable with M12 fe-
male
5-pin connector, loose
ends and screen.
Length: 5m (197 inch)
WI1006-M12F5S05R
X
Same as above but 15m (591
inch)
WI1006-M12F5S15R
Termination resistor
X
Loose DeviceNet male M12
termination resistor.
WI1008-M12M5STR4
Protection caps. Optional if connector is not used, to protect from dust / liquids.
X X
IP67 protection cap for M12
female connector.
WI1000-M12FCAP1
X X
IP67 protection cap for M12
male connector.
WI1000-M12MCAP1
