5.10 Expansion module MAC00-P4/P5
5.10.14 Cables for the MAC00-P5
The following cables equipped with connectors can be supplied by JVL.
Important: Please note that the cables are a standard type. They are not recommended for use in
cable chains or where the cable is repeatedly bent. If this is required, use a special robot
cable (2D or 3D cable).

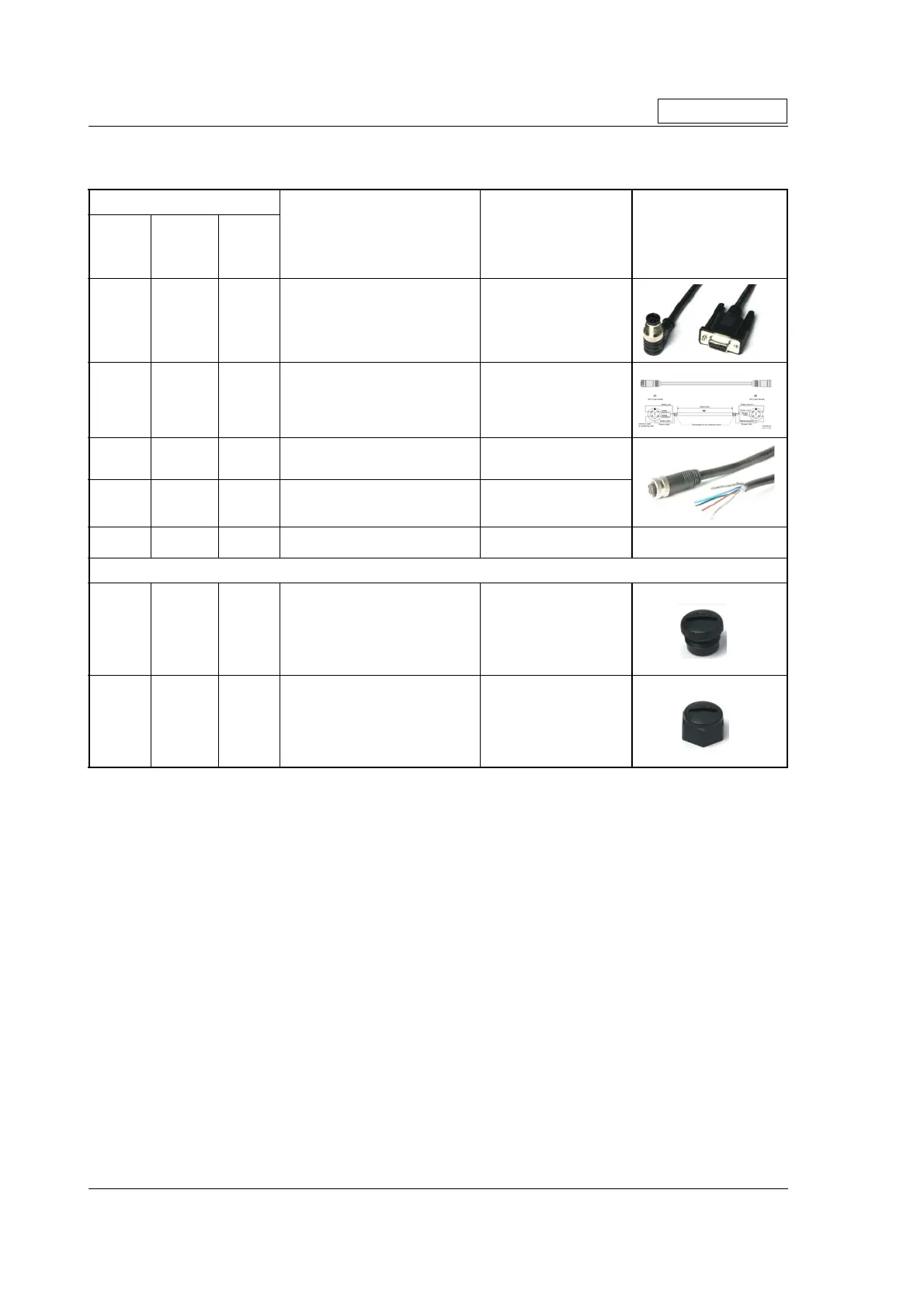

MAC00-P5 Connectors
Description JVL Order no. Picture
“CNT”
Harting
8pin
male
“COM”
M12
con.
5pin
Female
“SLV”
M12con.
5pin
Male
X
RS232 Interface cable. Connects
directly from MAC00-P5 to a PC
Length: 5m (197 inch)
RS232-M12-1-5-5
X
RS485 Interface cable. Connects
directly from a master to a slave
motor. Length: 3m (197 inch)
WI1005-
M12F5TF5T03P
X
Cable with M12 female 5 pin
straight connector, loose ends.
Length: 5m (197 inch)
WI1000-M12F5T05N
X
Same as above but 20m (787
inch)
WI1000-M12F5T20N
X
Please contact JVL for further de-
tails
-
Protection caps. Optional if connector is not used to protect from dust / liquids.
X
IP67 protection cap for M12
female connector.
WI1000-M12FCAP1
X
IP67 protection cap for M12
male connector.
WI1000-M12MCAP1
Only MAC400-3000
