Caution: Wear safety glasses and clamp the jig securely when drilling.
To avoid unsightly damage, drill holes half way through the door from the
first side, then transfer the jig to the other side of the door to complete the
drilling of the holes from the other side.
!

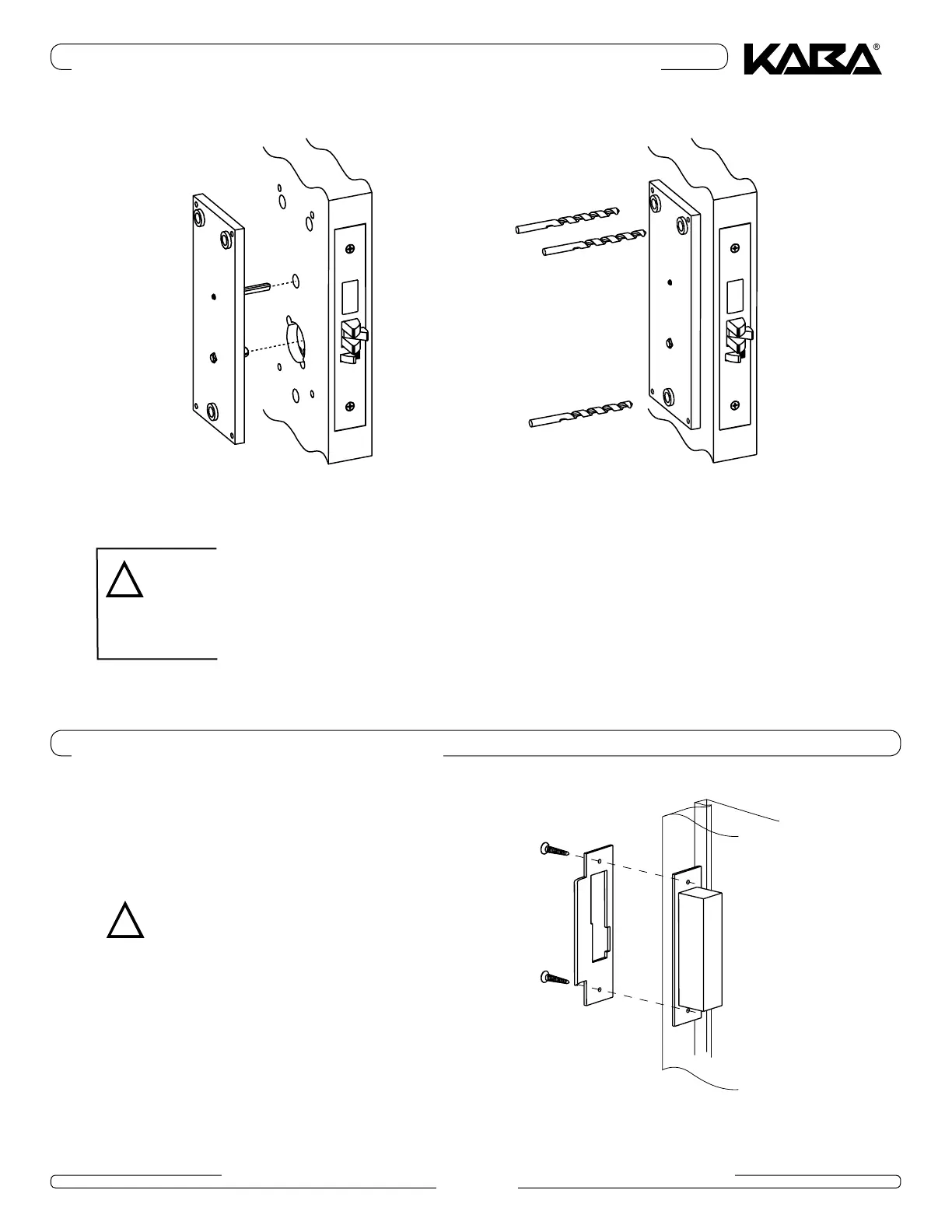

4 • DRILL NEW MOUNTING HOLES IN DOOR
V INSTALL THE REPLACEMENT STRIKE
PK2915-T 07_2014 E-760/770/790 SERIES RETROFIT INSTALLATION GUIDE
Page 6
Insert the metal jig spindles in the hubs on the mortise, so that the guides for the two holes are at the top,
and the guide for the single hole is at the bottom. Drill the holes using a
1
/
2
" drill bit.
If desired, remove the existing strike, and replace it with a new one.
Retain the existing dust box.
Ensure the new strike is an exact replacement
for the old one and is properly adjusted so the
mortise functions smoothly.
!
