EN
Mounting
KACO Operating Instructions blueplanet . TL - . TL Page
<20°

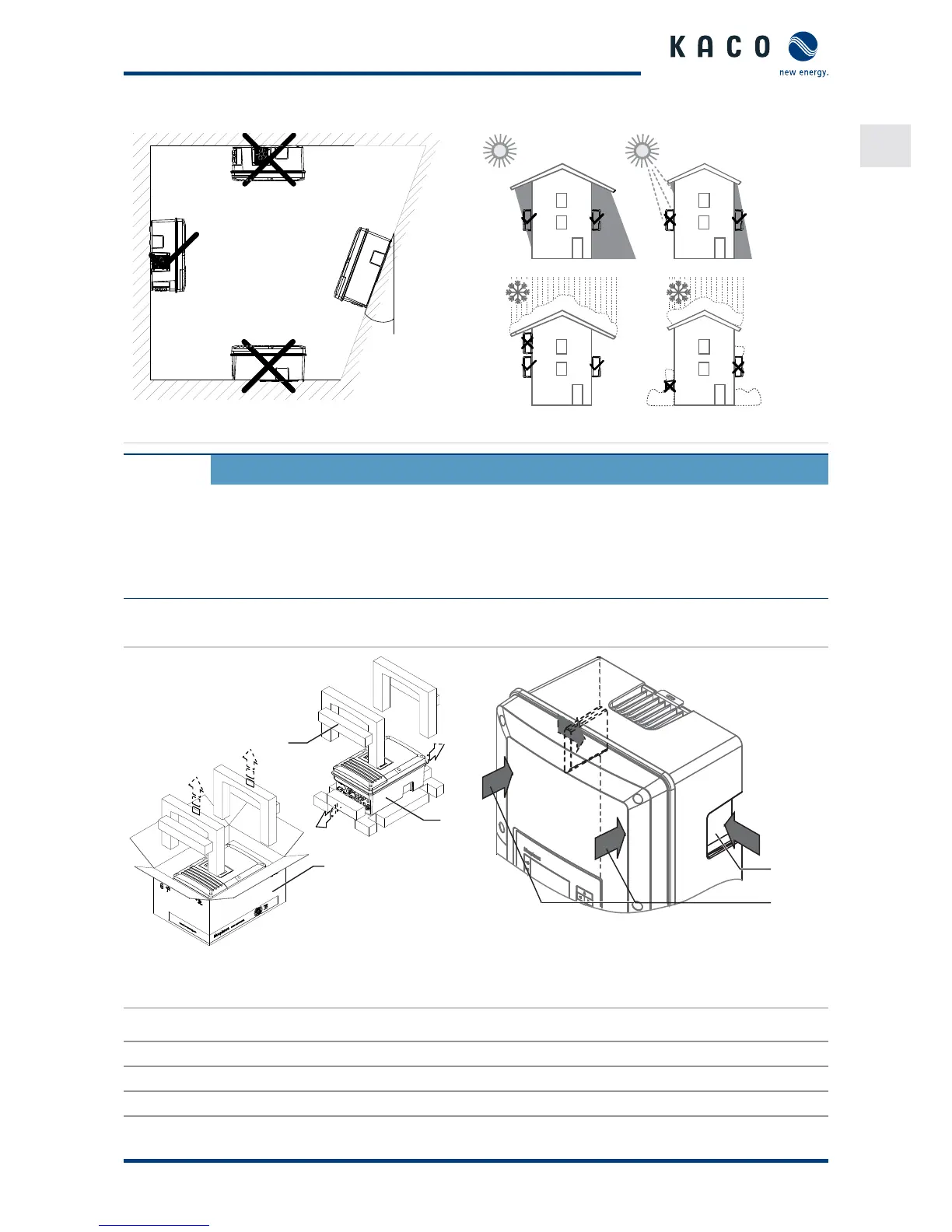

Figure : Instructions for wall mounting Figure : Inverter for outdoor installation
CAUTION
Use suitable mounting parts.
› Use mounting material corresponding to or included with the base.
› Mount the inverter upright on a vertical wall only.
› For a free-standing mounting an incline of ° is allowed.
› For upright installation outdoors: Weather-proof base required.
. Unpacking
Figure : Unpacking the unit Figure : Erect the device
Key
1 Carton 4 Opening for erection purposes
2 Protective packaging 5 Centre of gravity
3 inverter
