Mounting
Page KACO Operating Instructions blueplanet . TL - . TL
CAUTION
Risk of injury if the body is overloaded!
Lifting the device for transportation or to change location can lead to injuries (e.g. back injuries).
› Only lift the unit using the openings provided.
› The unit must be transported and installed by at least persons.
Unpacking the unit
ඣ The unit is transported to the installation location.
. Open carton at the front.
. Remove installation material and documentation.
. Pull up top protective packaging for removal.
. Remove inverter from the packaging.
. Place the protective packaging back into the carton.
. Lift the inverter at the intended positions and erect (see Figure on page ).
» If the unit is in the correct installation position: Proceed with the installation of the wall holder.
. Installing the wall holder
150mm
500 mm
700 mm
250mm
150mm
700 mm
500 mm
1220
510
160
582
920
216
180

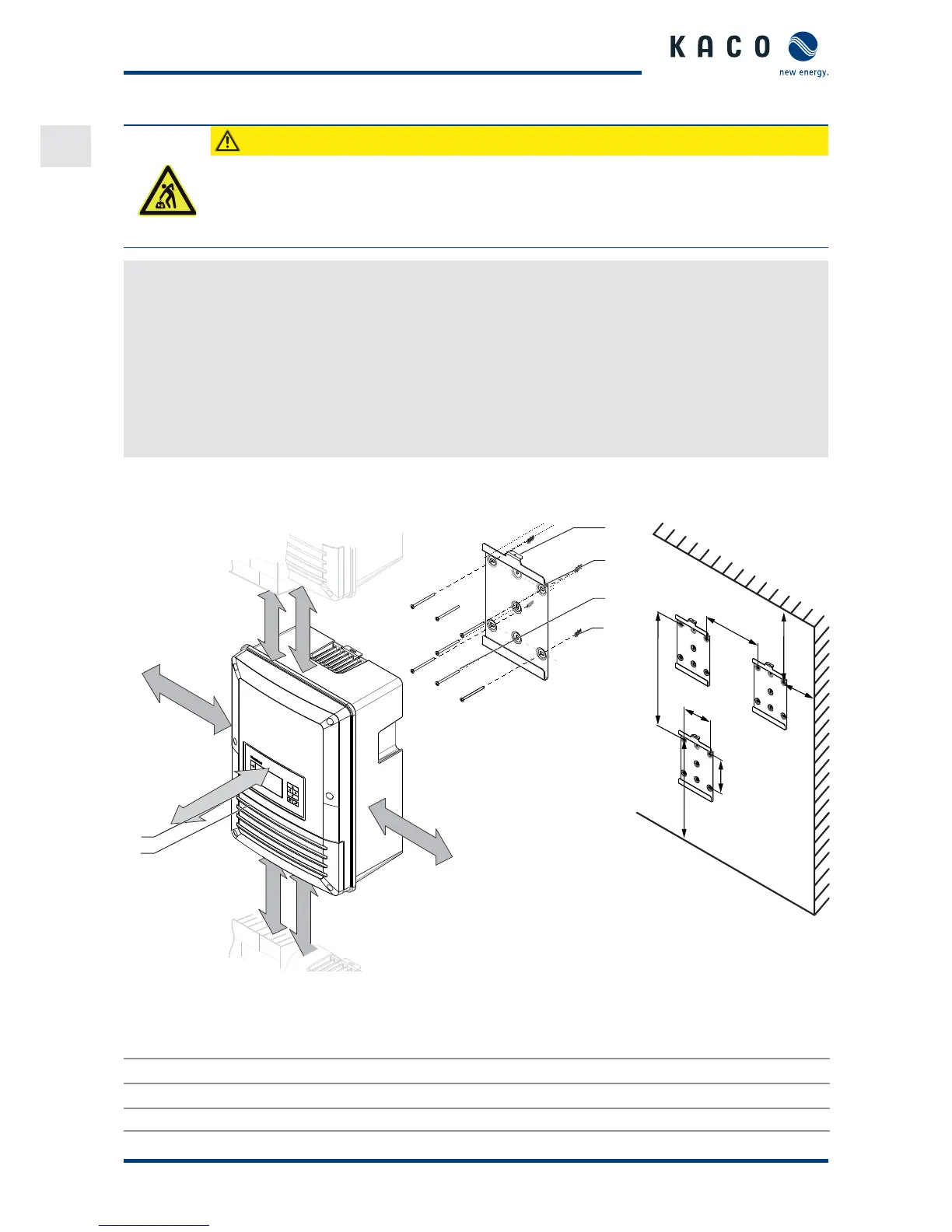

Figure : Minimum distances/wall holder Figure : Position of wall holder /
suspension
Key
1 Cover for connection area 4 Wall bracket
2 Screws for mounting (2x Torx) 5 Screws for mounting
3 Bracket with detachment protector 6 Fixings for mounting
