Kampmann Katherm HK - Construction and Function; Overview; Brief Description

Katherm HK
Assembly, installation and operating instructions
13
5 Construction and function
5.1 Overview
8
1
2
3
6
7
5
9
10
4
1
11
Katherm HK E

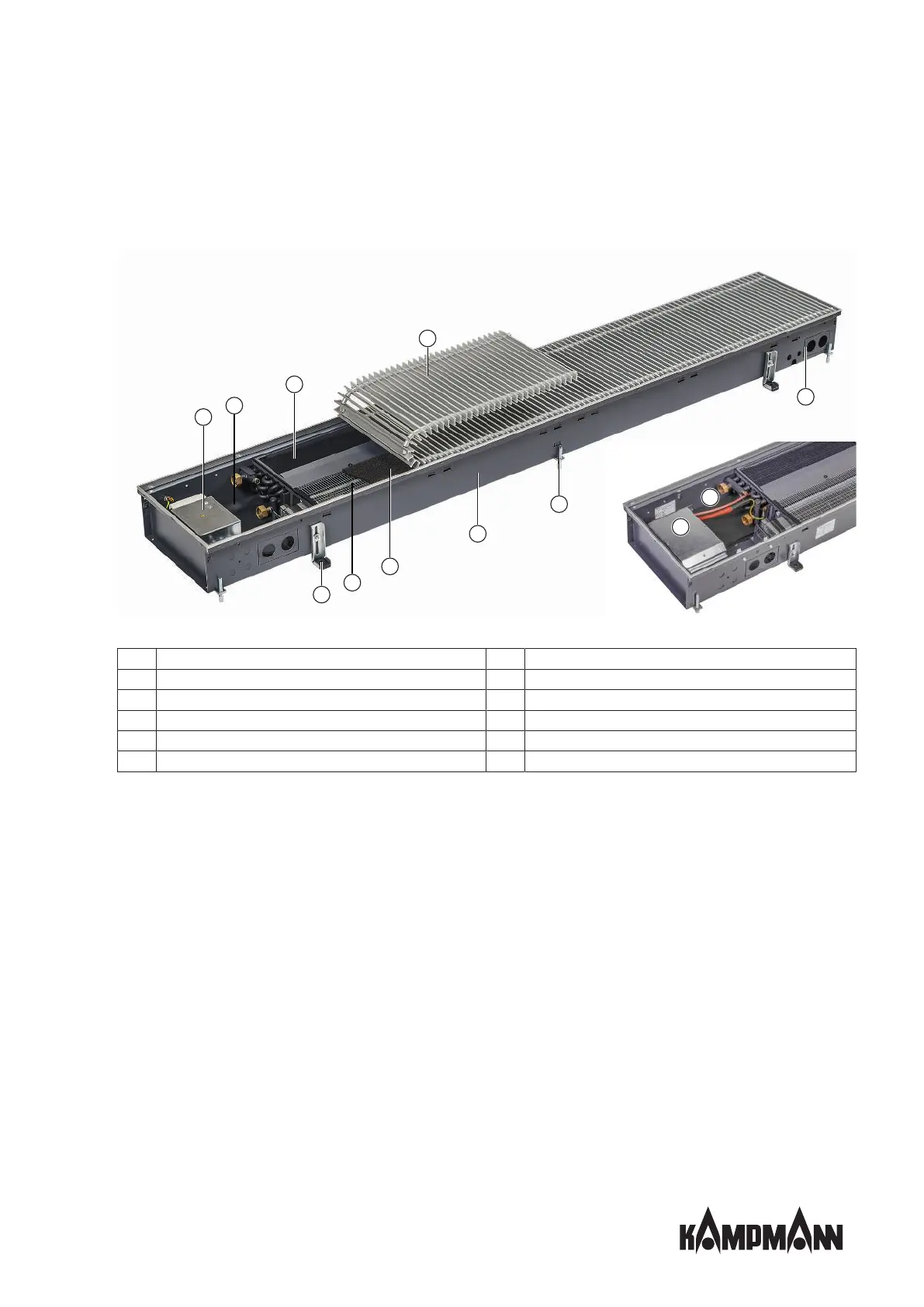

Fig.1: Katherm HK at a glance
1
Junction and control box
2
Condensate tray
3
Convector
4
Roll-up grille
5
Height adjustment feet
6
EC tangential fan
7
Filter (optional accessory)
8
Floor trench
9
Load-bearing height adjustment feet
10
Condensate pump mounting kit
11
Convector with integral electric coil and safety chain
5.2 Brief description
Katherm HK are decentralised units for the heating and cooling of room air, for use in hotels, offices and business premises,
among others. Secondary air is drawn in by the fan and passed through the copper/aluminium heat exchanger. The temperat-
ure-controlled air rises up the façade of the building to create a pleasant indoor climate.
