Kampmann Katherm HK - Cleaning the Condensate Tray

Katherm HK
Assembly, installation and operating instructions
70

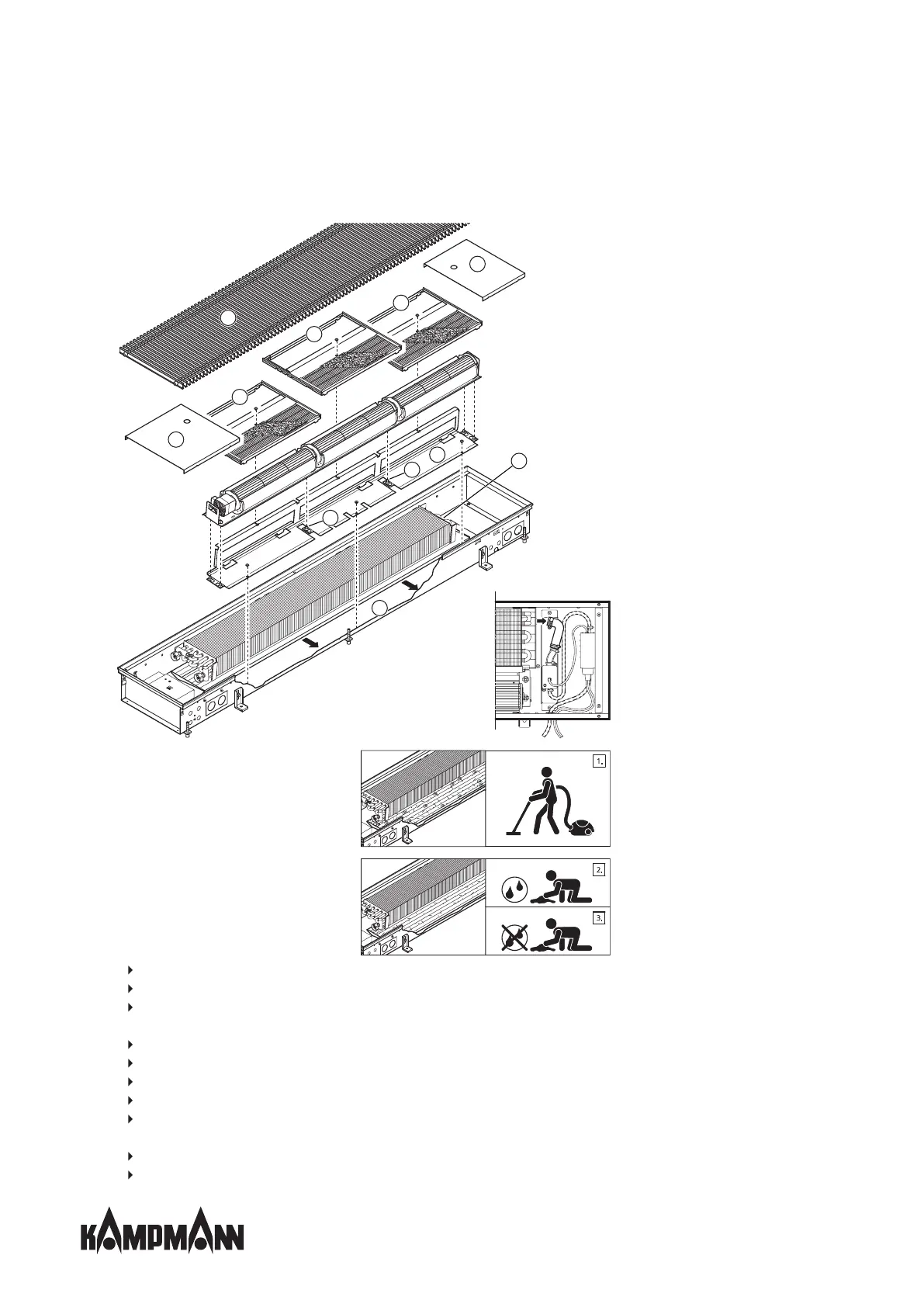

10.3.2 Cleaning the condensate tray
1
2
2
4
4
4
5
5
6
7
3
Remove the grille
1
.
Remove the cover plates
2
.
Loosen the clip from the condensate elbow and remove the condensate elbow from the drain connection of the condens-
ate tray
3
.
Loosen the segment panel screws and the segment panels
4
from the brackets on the walls of the floor trench.
Remove the motor connection plug from the tangential fan.
Remove the tangential fan from the fixing bolts
5
of the central wall
6
.
Loosen the screws of the central wall
6
and remove the central wall from the trench.
Pull the condensate tray arranged below the condensate tray
7
to the room side of the trench. Note: The condensate
tray cannot be removed!
Use a damp cloth to clean the condensate tray
7
and then wipe away any damp patches with a dry cloth.
After cleaning the condensate tray, refit the parts in reverse order to dismantling them.
