OPERATION MANUAL
AF INTEGRA / AF-H INTEGRA ELT
PAGE: 5
JUN 20/2013
3. LINE REPLACEABLE UNITS
A. Transmitter
The AF INTEGRA and AF-H INTEGRA are ELTs designed to be installed
onboard aircraft to transmit a distress signal on frequencies:
• 406 MHz (COSPAS-SARSAT frequency) for precise pinpointing and
identification of the aircraft in distress.
• 121.5 MHz used for homing in the final stages of the rescue operations.
The AF INTEGRA and AF-H INTEGRA are certified as Automatic Fixed (AF)
ELTs with the approved external antennas.
The housing of AF INTEGRA and AF-H INTEGRA transmitters are made of
molded plastic with excellent mechanical resistance.
The ELT housing is designed with no sharp edges.

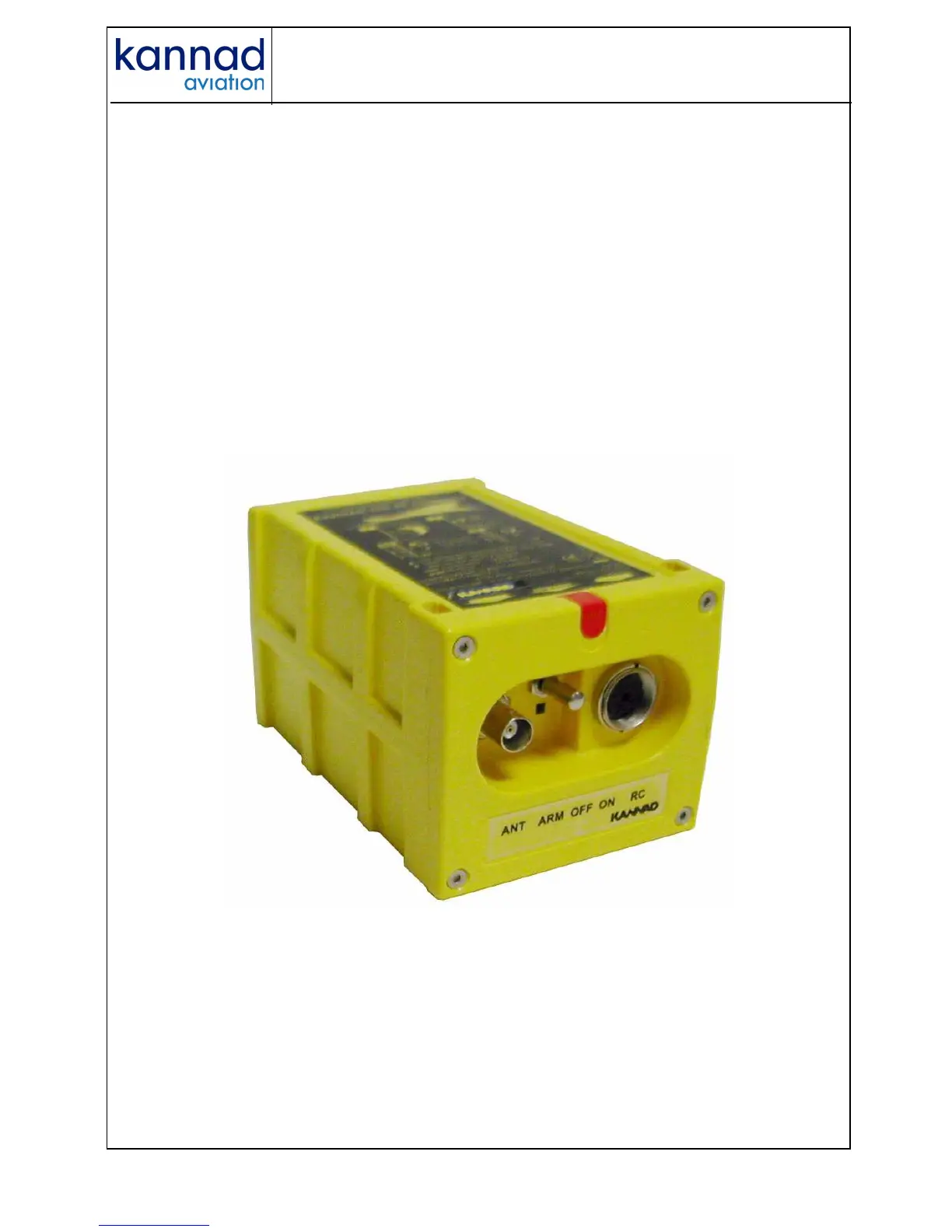

Figure 3: ELT Transmitter
