OPERATION MANUAL
AF INTEGRA / AF-H INTEGRA ELT
PAGE: 6
JUN 20/2013
B. Bracket
The bracket installed near the tail is designed to fix the ELT with a Velcro®
strap. This enables quick removal of the ELT for maintenance or exchange.

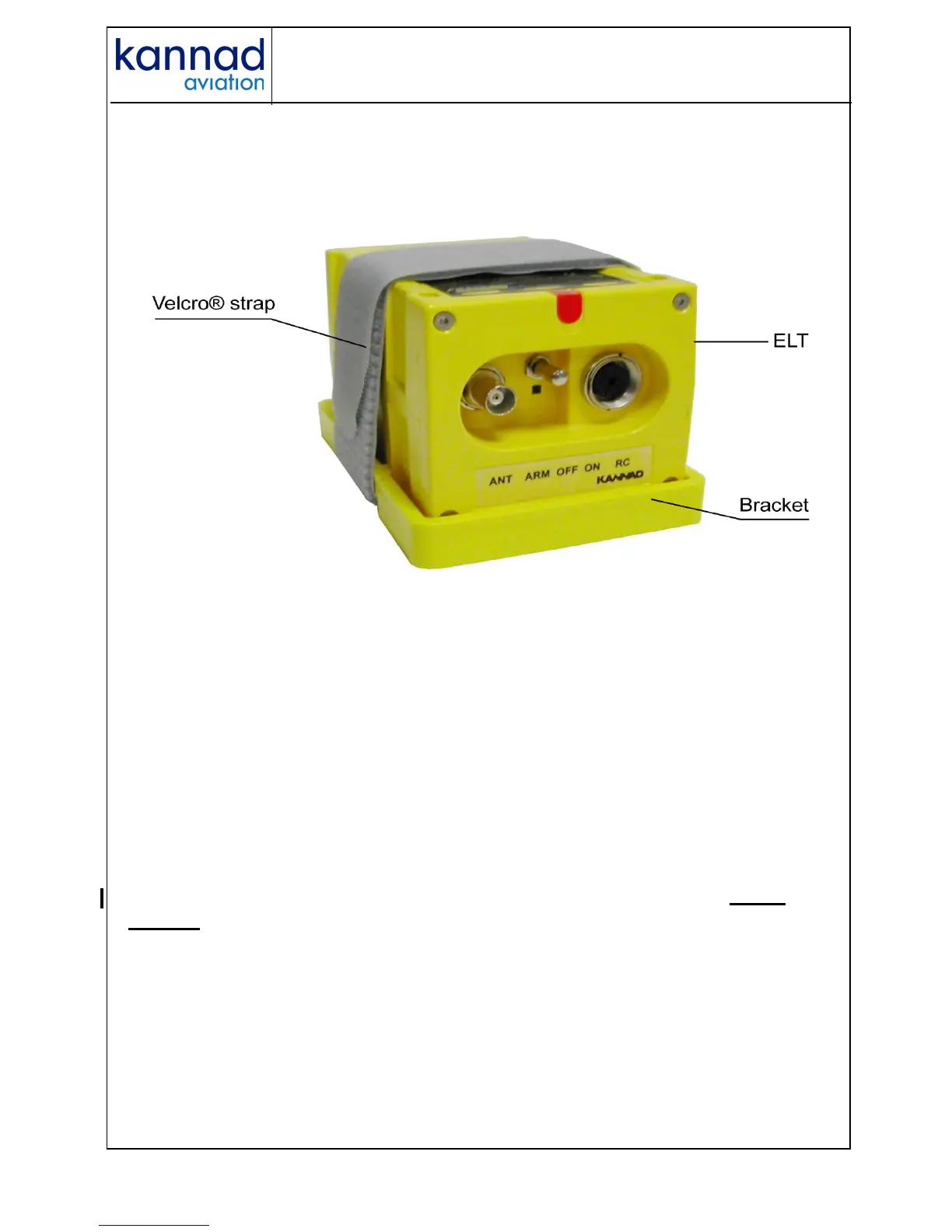

Figure 4: ELT Transmitter with Mounting Bracket
The transmitter may be installed on its standard mounting bracket
(P/N S1840502-01) or on an Universal Mounting Bracket (P/N S1840502-02)
to re-use existing drilling for retrofit (Refer to DOC09081, Initial Installation
Manual for drilling masks and outline dimensions of these brackets).
C. External antenna
Only approved antennas may be installed (Refer to Section 6.
Compatibility list page 110).
Connection to the ELT will be carried out with a 50 Ohm coaxial cable (RG58
for example) ended with a male BNC connector.
IMPORTANT NOTICE: Orolia S.A.S. recommends a cable with radio
electric properties similar or better to those of a RG58 cable.
Note: the 50 Ohm coaxial and the male BNC connector are not supplied
