KAR-TECH MICRO - RECEIVER PICTORIAL

MICRO REMOTE
25

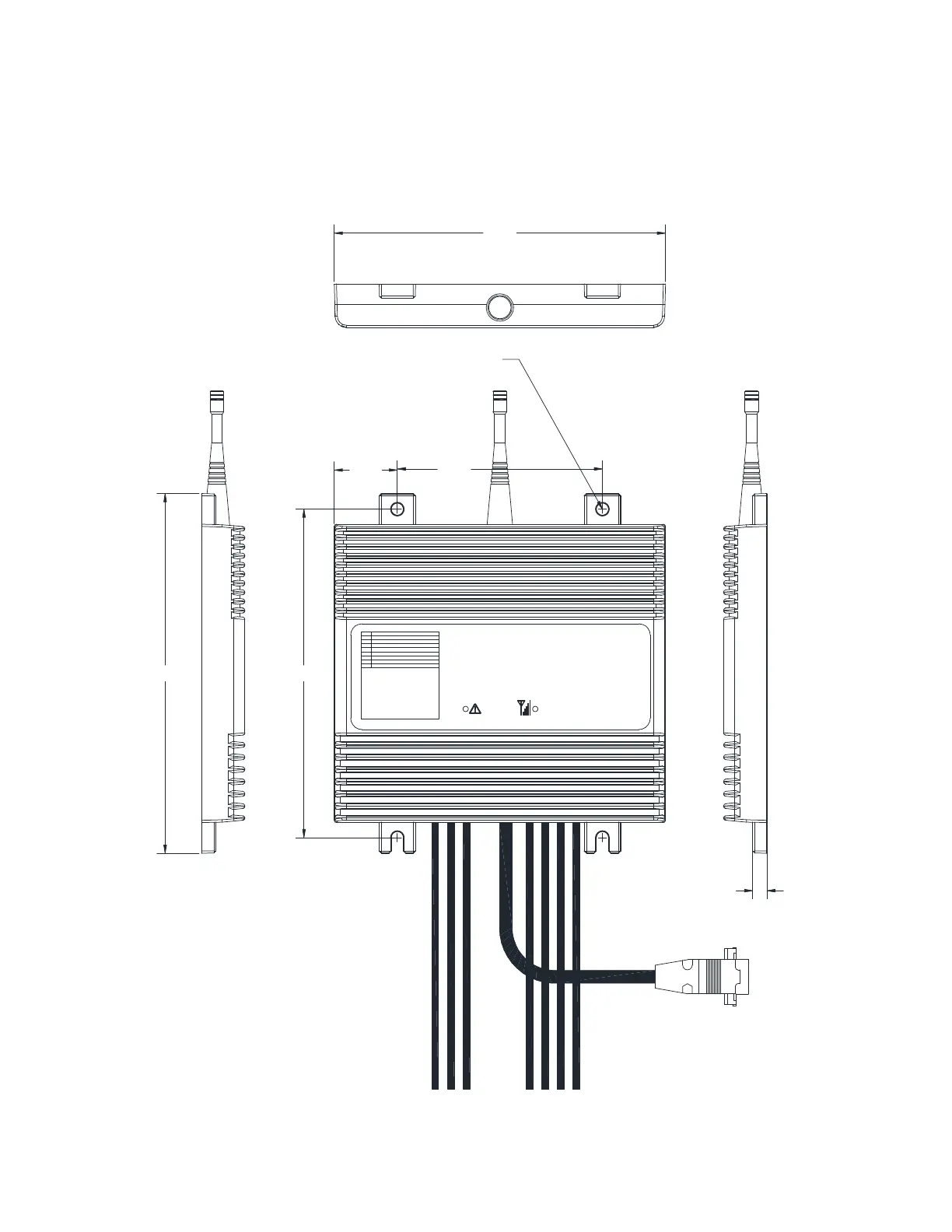

RECEIVER PICTORIAL
ERROR
EC01
PROBABLE CAUSE
RF COMMUNICATION ERROR
EC02
LOW SYSTEM VOLTAGE
EC03
ROLLOVER LEFT OU TPUT ERROR
EC04
ROLLOVER RIGHT O UTPUT ERROR
EC05
IDLE LOW OUTPUT E RROR
EC06
IDLE HIGH O UTPUT ERROR
EC07
BOOM OUTPUT ERROR
EC08
TRANSMITTER NOT I N NEUTRAL MODE
6" 14GA GXL BOOM
6" 14GA GXL POWER
ATTENTION!
During the operation, the controller will generate heat
that must be dissipated. The published amps rating
can only be fully achieved if adequate cooling is
provided. Mount the controller so that the enclosure
makes contact with a metallic surface (chassis, cabinet)
to c onduct the heat.
BLINK: RF COMMUNICATION
NO BLINK: NO COMMUNICATION
Error cod e number is the number of red LED
pulses be twee n each p ause .
0.31
7.86" 7.18"
4.50"
4x 1/4-20 UNC MOUNTING LOCATIONS
7.27"
1.38"
6" 12GA GXL ROLLOVER LEFT 6" 12GA GXL ROLLOVER RIGHT
6" 4x 20GA GXL
WRAPPED IN FLAME
RETARDANT BLACK MESH
6" 14GA GXL GROUND 6" 18GA GXL IDLE HIGH 6" 18GA GXL IDLE LOW
