Kärcher B80W - Basic Settings and Service Procedures; Setting the vacuum Bar

20 English 5.906-468.0 Rev. 00 (02/09)

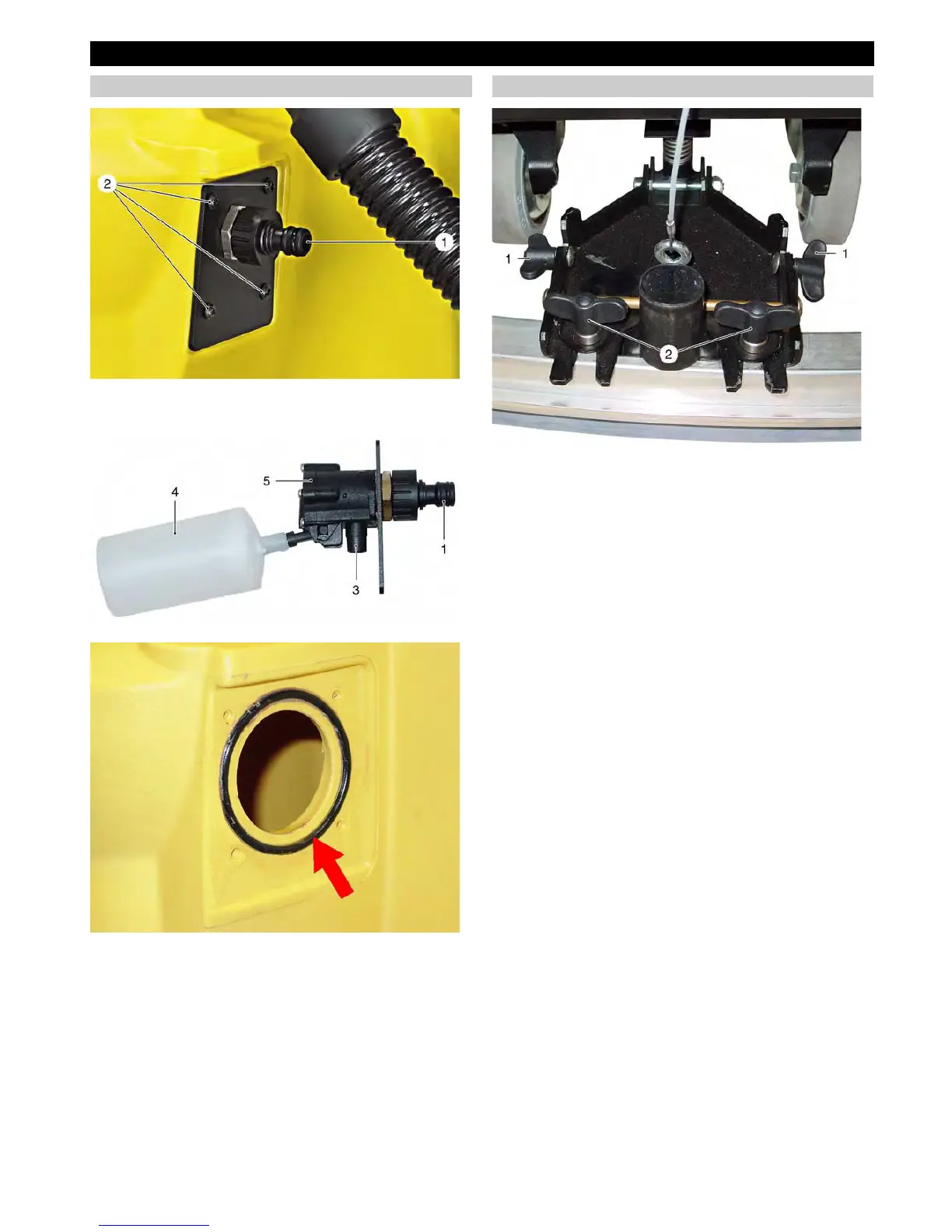

Î Unscrew locking screws.
Î Remove the filling system from the tank.
Î Grease the seal ring when installing the new filling system.
1 Filling system
2 Fastening screws (4x), filling system
3 Fresh water inlet into the fresh water reservoir
4 Float
5 Switch-off valve
To improve the vacuuming result on tiled floors the vacuum bar can
be turned to an oblique position of up to 5°.
Î Release the wing screws.
Î Turn the vacuum bar into the respective horizontal position.
Î Retighten the wing screws.
If the vacuum result is unsatisfactory the inclination of the straight
vacuum bar can be modified.
Î Loosen the wing nuts.
Î Tilt the vacuum bar accordingly.
Î Retighten the wing screws.
1 Wing screws (2x), setting of the tilting position
2 Wing screws (2x), setting of the horizontal position
5 Basic settings and service procedures
5.1 Replace filling system 5.2 Setting the vacuum Bar
