English 5.906-468.0 Rev. 00 (02/09) 7
1 Operator console
2 Driving lever
3 Guide handle
4 Battery charger (U1) (BAT PACK model)
5 Suction hose
6 Vacuum bar
7 Pedal for parking brake
8 Fresh water filling system
9 Drain hose for wastewater
10 Connection cable for battery charger (U1)

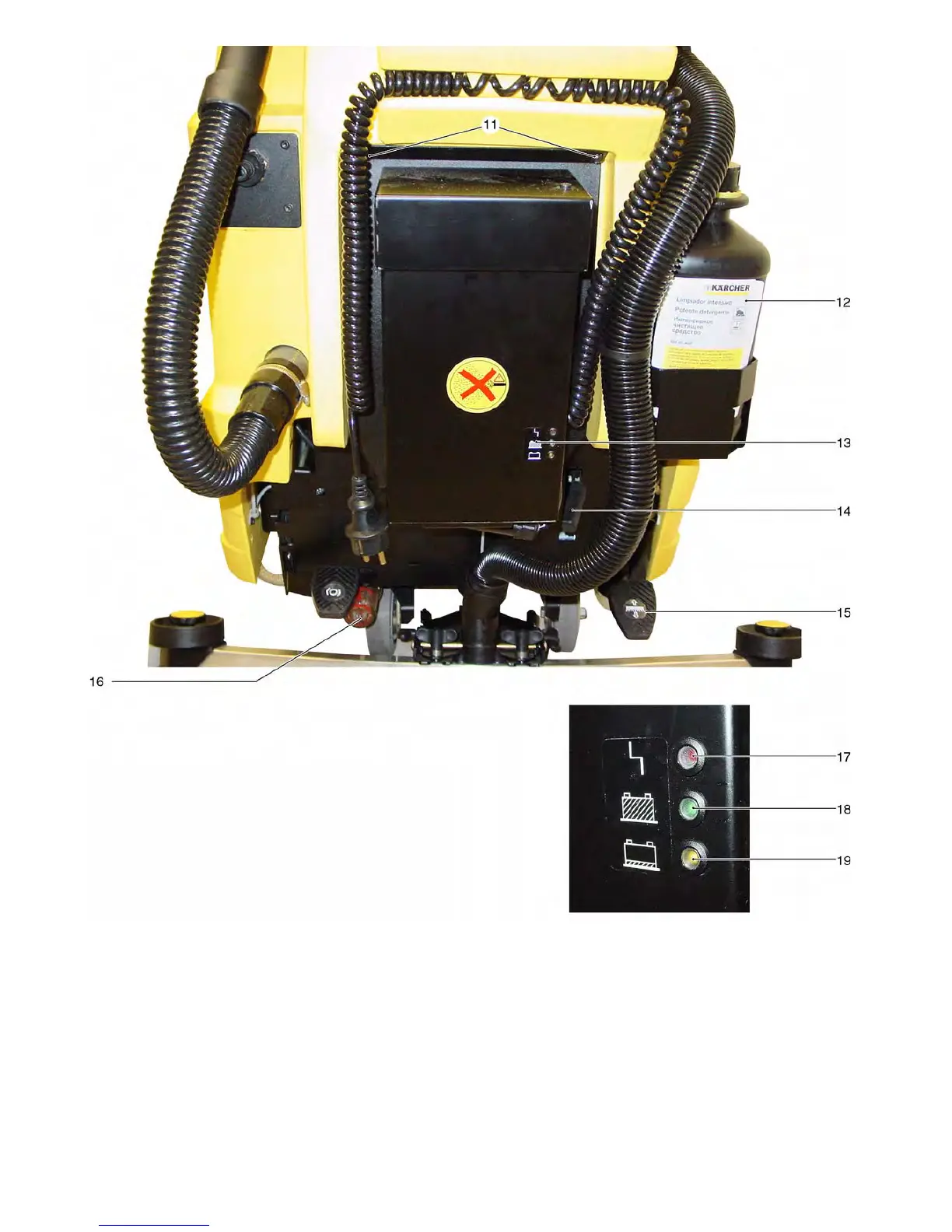

11 Fastening screws (2x), cover plate
12 Detergent reservoir (option)
13 LED indicator lamps on the battery charger (U1)
14 Lever for adjusting the brush contact pressure
15 Pedal for raising/lowering the brush head
16 Waterfilter
17 LED (red), fault on battery charger or battery
18 LED (green), battery fully charged
19 LED (yellow), batteries are being charged
